Summary of Contents for Digitus professional DN-95342

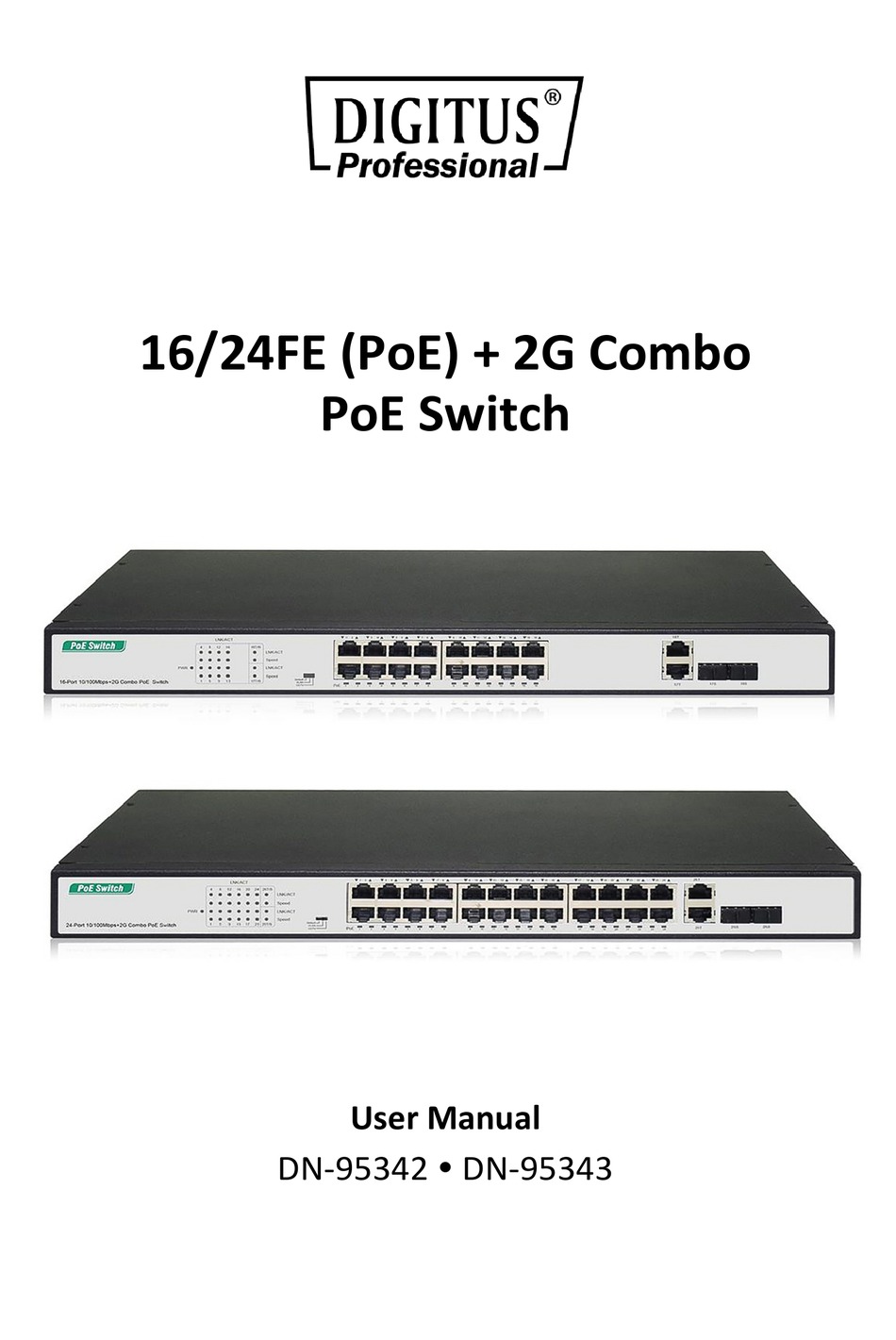

- Page 1 16/24FE (PoE) + 2G Combo PoE Switch User Manual DN-95342 DN-95343...
- Page 2 Introduction The DIGITUS® Combo PoE Switch are Gigabit Uplink Unmanaged Switch which provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to boost your old network to 1000Mbps. Increase the speed of your network server and backbone connections, making Gigabit connection to a server or uplinking a network necessarily.
-
Page 3: Package Contents
2-Port Gigabit Combo Port. The LED indicators are also shown on the panel. DN-95343 2*1000Mbps 24*10/100 2*10/100/100 Port Status indicator 0Mbps Port share SFP Mbps PoE Port slot DN-95342 2*10/100/100 2*1000 Mbps 16*10/100 Port Status indicator Port Status indicator 0 Mbps Port share SFP slot Mbps PoE Port... -
Page 4: Led Indicator
LED indicator Color Function Off: No Power supply Green Light: Indicates the switch has power Off: No device is connected to the corresponding port Light: Indicates the link through that port is successfully LNK/ACT Green established at 10/100/1000Mbps. Blink: Indicates that the Switch is actively sending or receiving data over that port. - Page 5 Rear Panel The rear panel of DIGITUS Combo PoE Switch indicates an AC inlet power socket, Grounding Column. Power Socket Grounding Column Installation the Switch This part describes how to install your Ethernet Switch and make connections to it. Please follow the following instructions in avoid of incorrect installation causing device damage and security threat.
-
Page 6: Desktop Installation
Desktop Installation Install the Switch on a desktop, please attach these cushioning rubber feet provided on the bottom at each corner of the Switch in case of the external vibration. Allow adequate space for ventilation between the device and the objects around it. The installation diagram is as follows: (Example: DN-95343) Rack-mountable Installation... - Page 7 (Example: DN-95343) Turn on the switch Plug in the negative connector of the provided power cord into the power socket of the device, and the positive connector into a power outlet. After the device is powered on, it begins the Power-On Self-Test. The PWR LED indicator will light on all the time.
-
Page 8: Specifications
Specifications Model DN-95342 DN-95343 Description 16FE (PoE) + 2G Combo 24FE (PoE) + 2G Combo IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, Standard IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az 10BASE-T: UTP category 3,4,5 cable (≤100m) 100BASE-TX: UTP category 5 cable (≤100m) Network Media (Cable) 1000BASE-T: UTP category 5e cable (≤100m) - Page 9 Storage Temperature: -40 °C ~ 70 °C (-40 °F ~158°F) Operating Humidity: 10% ~ 90% non-condensing Humidity Storage Humidity: 5% ~ 90% non-condensing MTBF >50000 hours This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures.
