Industrial 5-Port Gigabit Switch
User Manual -
DN-651107

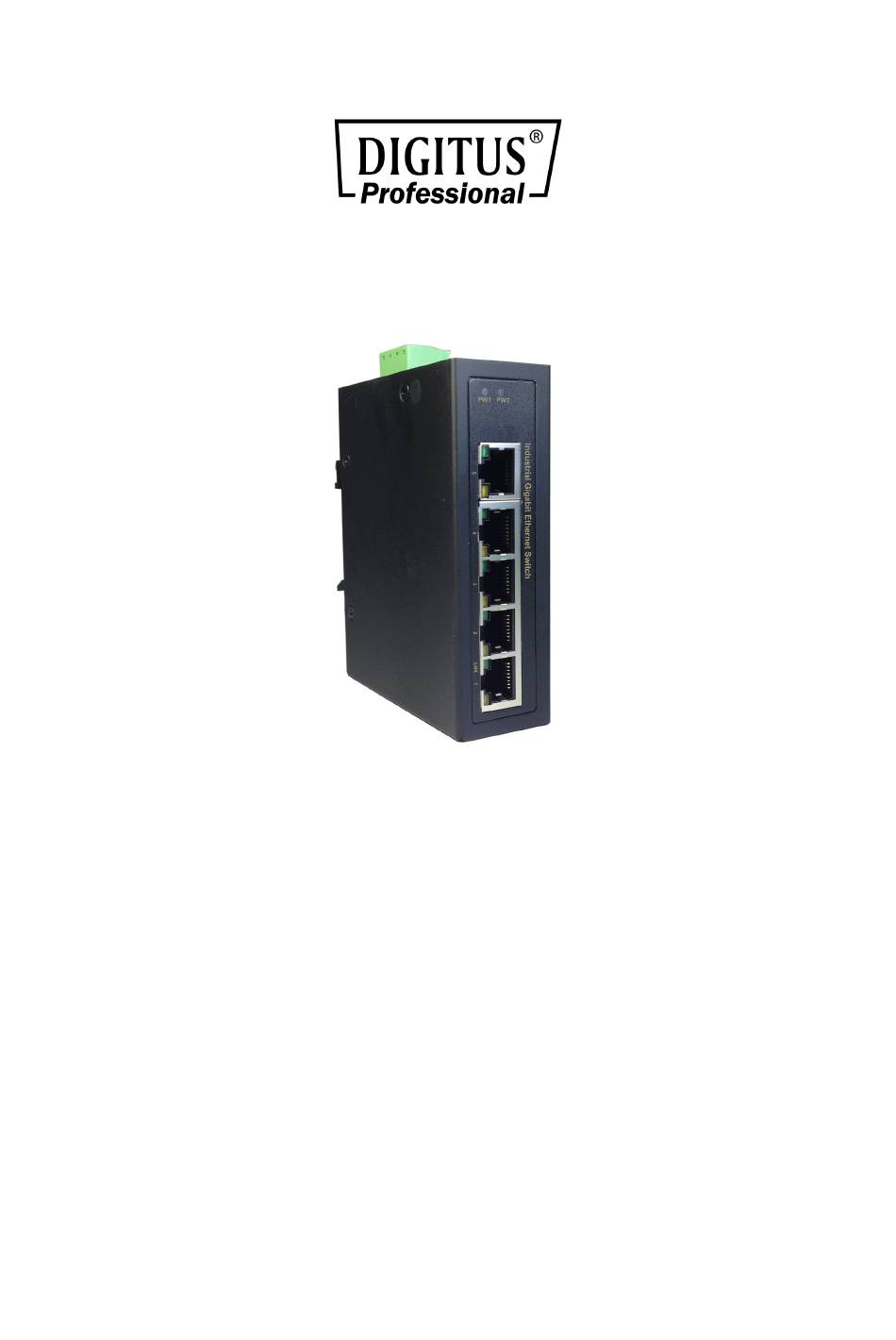

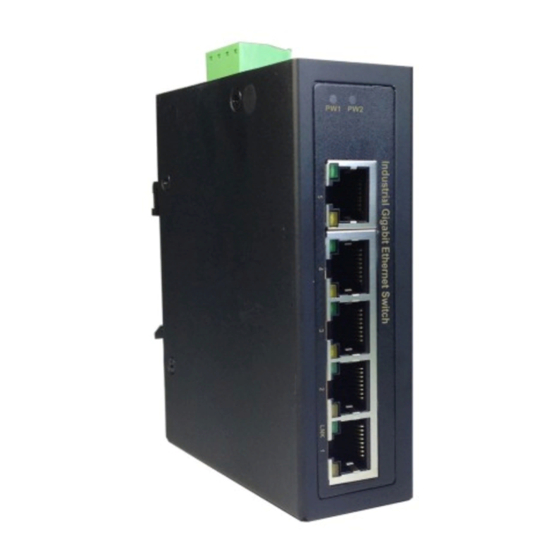

Introduction
This hardened industrial 5 port Gigabit Ethernet Switch is equipped with
wide range VAC and VDC power input. It is suitable for heavy usage
environments such as hazardous environments or central control areas
where a reliable device is critical. It is an ideal solution for Industrial
Automation, IP surveillance, traffic monitoring and a wide range of
applications. It has been rigorously tested for your security, transportation
and telco applications.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digitus professional DN-651107
Summary of Contents for Digitus professional DN-651107
- Page 1 Industrial 5-Port Gigabit Switch User Manual - DN-651107 Introduction This hardened industrial 5 port Gigabit Ethernet Switch is equipped with wide range VAC and VDC power input. It is suitable for heavy usage environments such as hazardous environments or central control areas where a reliable device is critical.
-
Page 2: Installation Package
Features Hardened design Aluminum enclosure 103.5 x 32 x 81.5 mm (L x W x D) Supports 18-36VAC/12-60VDC Surge protection diodes on power input. ESD protection diodes on RJ-45 port Provides increased Noise Immunity Extended environment specification -40°C to 75°C Installation package This unit can be din-rail mounted or wall-mounted. -
Page 3: Power Connection
Power connection This unit provides a 4 pin terminal block. It can be operated using 12- 56VDC/18-36VAC power source. Always make sure your input voltage is within this supported voltage range. To connect power: This unit supports two power inputs. Follow the printed polarity for +V1-, +V2- and ground. -
Page 4: Led Indicator
LED indicator PW1 (Green) ON -- when P1+, P1- is connected OFF – P1+, P1- is NOT connected PW2 (Green) ON -- when P2+, P2- is connected OFF – P2+, P2- is NOT connected Link (Green) ON — Link port is detected OFF —... -
Page 5: Specifications
Specifications IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit IEEE Standard Ethernet IEEE802.3x Flow Control and Back Pressure Back-plane (Switching Fabric): Switch Architecture 10Gbps Data Processing Store and Forward IEEE 802.3x Flow Control and Back Flow Control Pressure Jumbo Frame... - Page 6 OFF − 10/100M speed Reserve polarity protection Present Overload current protection Present Redundant Dual Power Input Power Supply 12VDC-56VDC or 18VAC-36VAC Power Consumption 2.76W@48 VDC full load Provide 2 Redundant power, 4 Pin Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 12-24/14-22 Removable Terminal Block Stranded wire(AWG): 12-24/14-22 Torque: 5lb-In/0.5Nm/0.56Nm...
- Page 7 Housing Dimension (mm) This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content.
