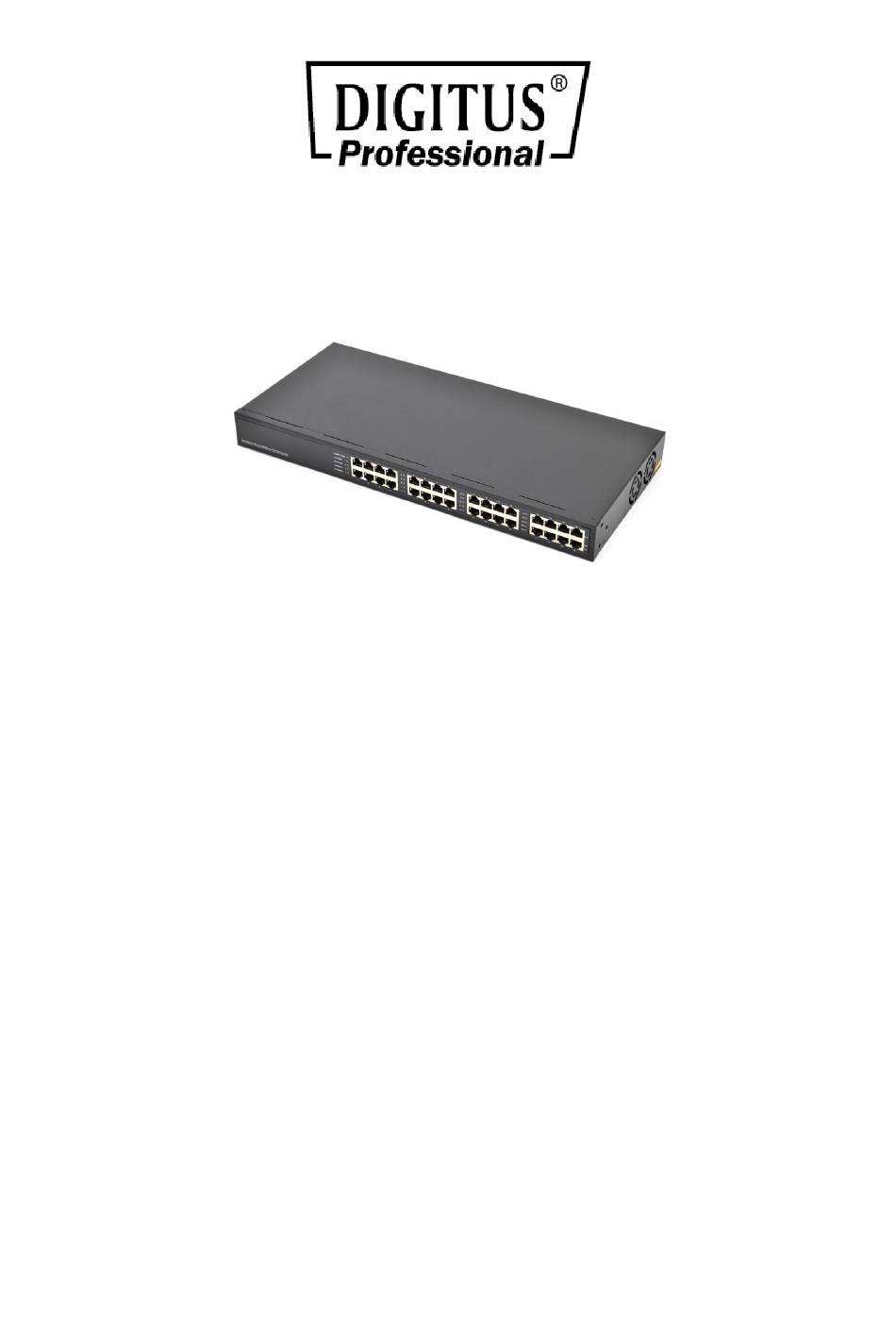

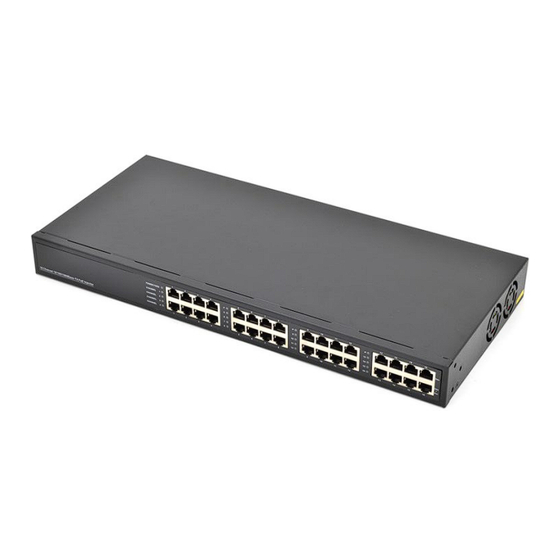

16/24 - Port Gigabit PoE+ Injector
Introduction
The family of Power over Ethernet PSE (Power Sourcing Equipment) injects power
over data-carrying Ethernet cabling. It follows the IEEE802.3af/IEEE 802.3at and is
completely compatible with existing Ethernet switches and networked devices.
Features
16/24 channels Power Sourcing Equipment (PoE Injector)
Support 16 ports full load, max: 250W (DN-95116)
Support 24 ports full load, max: 370W (DN-95117)
IEEE802.3af/IEEE802.3at compliance
Remote power feeding of Ethernet terminals up to 100 meters
Auto-detect of PoE IEEE802.3af/IEEE 802.3at equipment
Independent overload and short-circuit protection per channel
LED indicators power input indication
Internal AC/DC converter – no need for external power brick
AC input 100~240VAC, 50/60Hz
Standard 1U, 19" rack mountable
Easy plug-and-play installation
Manual
DN-95116 DN-95117
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Digitus professional DN-95116
Summary of Contents for Digitus professional DN-95116
- Page 1 Ethernet cabling. It follows the IEEE802.3af/IEEE 802.3at and is completely compatible with existing Ethernet switches and networked devices. Features 16/24 channels Power Sourcing Equipment (PoE Injector) Support 16 ports full load, max: 250W (DN-95116) Support 24 ports full load, max: 370W (DN-95117) IEEE802.3af/IEEE802.3at compliance ...
- Page 2 Hardware Description This Section mainly describes the hardware and gives a physical and functional overview DN-95116 Physical Dimension: The physical dimension is: 440mm x 200mm x 44mm (L x W x H) Front Panel: The Front Panel consists of 16 x RJ-45 Ethernet ports (data), 16 x RJ-45 PoE ports (data + power), and 16 x LED port indicators.
- Page 3 The AC inlet is located at the rear panel. The device will work with AC in the range 100~240VAC, 50/60Hz. Technical Specification Item Description Model DN-95116 DN-95117 No. of Ports Pass Through Data Rates 100/1000 Mbps Power over Ethernet Output Pin Assignment and Polarity:...
- Page 4 Application PoE IP Camera PoE IP Camera Data PoE IP Camera Data + Power PoE IP Camera Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
