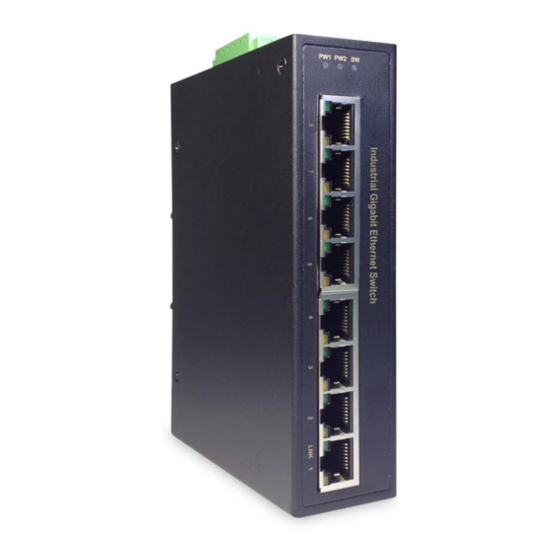

Industrial 8-Port Gigabit Switch
User Manual – DN-651108
Introduction
This industrial 8 port Ethernet Switch is designed especially for IP
surveillance, traffic monitoring and for a broad range of applications. It
can be used as a stand-alone device for buses, trucks, and other vehicles
for surveillance purposes. This unit is suitable for heavy usage
environments or central control areas where a reliable device is critical.
It has been rigorously tested for your security, transportation and telco
application.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digitus professional DN-651108
Summary of Contents for Digitus professional DN-651108

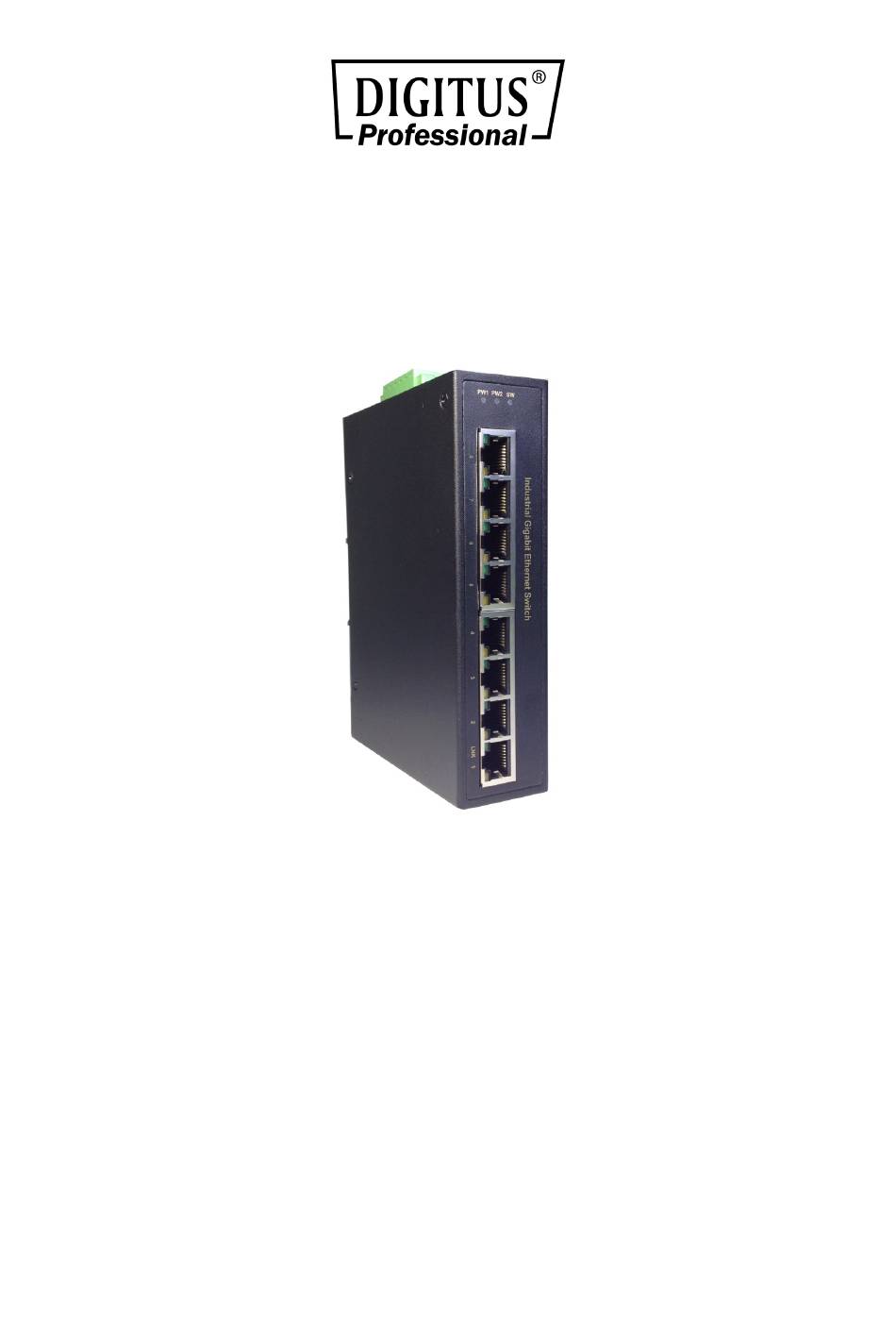

- Page 1 Industrial 8-Port Gigabit Switch User Manual – DN-651108 Introduction This industrial 8 port Ethernet Switch is designed especially for IP surveillance, traffic monitoring and for a broad range of applications. It can be used as a stand-alone device for buses, trucks, and other vehicles for surveillance purposes.
-
Page 2: Installation Package
Installation package This unit can be din-rail mounted or wall-mounted. Din-rail brackets and wall-mounted brackets are included. Wall mount bracket Wall mount bracket x 2 Wall mount bracket x 2 Din Rail Bracket x 1 Package Content: 1x Main unit 1x User Manual 1x Din Rail Bracket 2x Wall Mount Bracket... -
Page 3: Led Indicator
LED indicator PW1 (Green) ON — when P1+, P1- is connected RLY (Amber) OFF — P1+, P1- is NOT ON — Either PW1 connected or PW2 is connected PW2 (Green) OFF — Both PW1 ON — when P2+, P2- is and PW2 are connected connected... -
Page 4: Power Connection
Power connection This unit comes with a 6 pin terminal block. It can be operated from 12-56VDC power source. Always make sure your input voltage is within this supported voltage range for each model. WARNING – Any exceeded input voltage will not make this unit function and may damage this unit. - Page 5 WARNING -- Always SHUT OFF power source to connect power wire. WARNING -- Always ground the power source to maintain a clean power input. Cheaply made power supplies create too much noise and will cause the power input to fluctuate when connected to this unit. To avoid this, always ground the power source to maintain a clean power input.
-
Page 6: Specification
Specification IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE Standard IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Ethernet IEEE802.3x Flow Control and Back Pressure, Switch Architecture Back-plane (Switching Fabric): 16Gbps Data Processing Store and Forward Flow Control: IEEE 802.3x Flow Control and Back Pressure Jumbo Frame MAC address Table Size... - Page 7 Stranded wire(AWG): 12-24/14-22 Torque: 5lb-In/0.5Nm/0.56Nm Wire Strip length: 7-8mm Operating Temperature -40°C to 75°C Operating Humidity 5% to 95% (Non-condensing) Storage Temperature -40°C to 85°C MTBF (mean time between 510,304 hrs (MIL-HDBK-217F) at 25°C failure) Housing Rugged Metal, IP30 Protection Case Dimension (L x W x D) 142mmx36.2mmx105mm (LxWxD) Installation mounting...
