Installation Instructions
2.
Unplug the fan cable

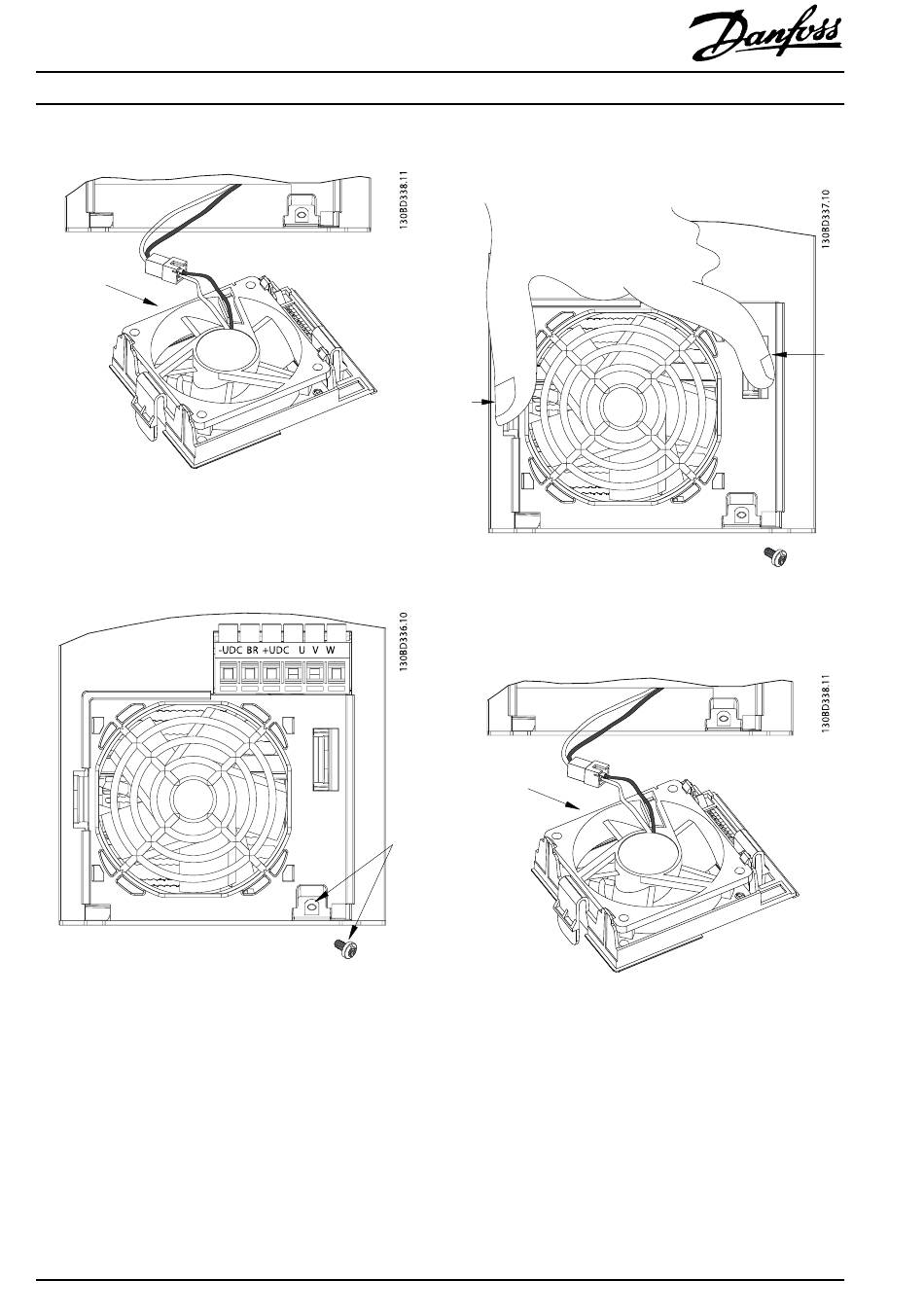

Illustration 1.2 Fan Cable Plug. Plug Location Depends on Fan
Type
Enclosure type J3
1.
Remove the M3x6 screw in the bottom right corner.
Illustration 1.3 Removing Fan Screw on Enclosure Type J3
2
Fan Replacement
2.
Illustration 1.4 Pulling out Fan on Enclosure Type J3
3.
Illustration 1.5 Fan Cable Plug. Plug Location Depends on Fan
Type
®
MI06F102 - VLT
is a registered Danfoss trademark
Press the levers on each side of the fan and pull the
fan outwards.
Unplug the fan cable
