Summary of Contents for Shure Advance MXA310

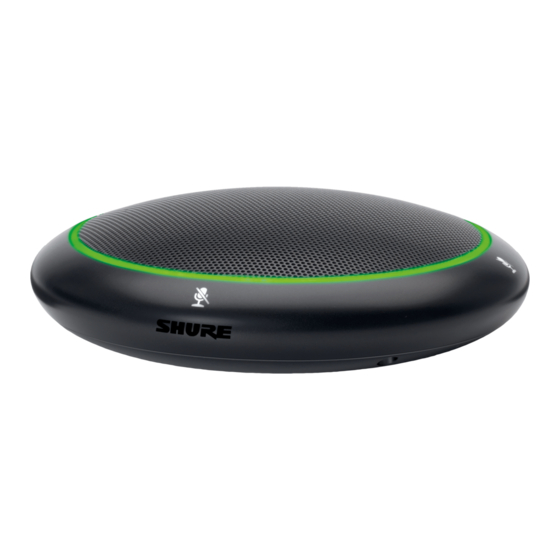

- Page 1 MXA310 Table Array Microphone Complete user guide for the MXA310. Includes installation instructions, specifications, best practices, command strings, and more. Version: 5 (2020-B)
-
Page 2: Table Of Contents
System Planning and Gear Requirements Adjusting Levels Setting up the Audio Network Mute and Fader Groups System Use Cases Identifying Channels Telephone Conference with Shure MXW Audio Network Interface Device Identification Telephone Conference with Dante-enabled Audio Proces- LED Light Ring Parametric Equalizer (PEQ) - Page 3 Shure Incorporated Networking Best Practices Troubleshooting Network Audio and Shure Control Data Important Product Information Device IP Settings Information to the user Configuring IP Settings What's in the Box Manually Assigning Static IP Address Setting Latency Optional Accessories Operating the Control Software over Wi-Fi...
-
Page 4: Mxa310Table Array Microphone
Shure Designer software provides comprehensive microphone and pattern control • With Designer, you can also design coverage with online and offline devices, and route audio between Shure devices • If Designer isn't available, use the browser-based web application to control the microphone Network Connectivity •... -
Page 5: System Overview
Dante -enabled loudspeakers and amplifiers connect directly to a network switch. Analog loudspeakers and amplifiers con- ™ nect through a Shure Network Interface (model ANI4OUT), which converts Dante audio channels into analog signals, de- livered through 4 discrete XLR or block connector outputs. -
Page 6: System Planning And Gear Requirements
System Planning and Gear Requirements Setting up the Audio Network Shure networked conferencing systems are comprised of Microflex Advance microphones and network interfaces, which oper- ate entirely on a Dante network. Additional hardware, including network switches, computers, loudspeakers, and audio proces- sors are described in the hardware component index. - Page 7 Expanded Control for Analog Devices Analog devices that are connected to the network through a Shure network interface (ANI4IN/ANI4OUT) benefit from additional remote control: Volume levels, equalization, and signal routing are managed through the web application. For example, adjust- ing loudspeaker volume or muting a wired microphone, which would normally be done from the hardware, can now be con- trolled remotely over the network.
-
Page 8: System Use Cases
Required devices Power Over Ethernet and Hardware Requirements All Shure devices included in these use cases require Power over Ethernet (PoE, class 0). Refer to the Dante and Network- ing section for additional information on cable and network switch requirements. -
Page 9: Telephone Conference With Shure Mxw Audio Network Interface
Shure Incorporated Telephone Conference with Shure MXW Audio Network Interface ① Array microphone to Shure MXWANI Connect the microphone output to port 1 on the MXWANI with a network cable. Port 1 provides the necessary Power over Ethernet (PoE). ② Computer to Shure MWXANI Connect a computer to the ANI on port 2 or 3 with a network cable to provide control of the array microphone and other net- worked components. - Page 10 Shure Incorporated ③ Shure ANI analog outputs to audio processor Step 1: Route signals with Dante Controller software Route the channels from the microphone (Dante transmitter) to the MXWANI channels (Dante receiver). This establishes the discrete channels to deliver through the analog outputs.
-
Page 11: Telephone Conference With Dante-Enabled Audio Processor
Shure Incorporated Telephone Conference with Dante-enabled Audio Processor ① Array microphone to network switch Connect the microphone output with a network cable to any port on the switch that supplies Power over Ethernet (PoE). ② Computer to network switch Connect a computer to the network switch to provide control of the microphone and other networked components. -
Page 12: Telephone Conference With Breakout Boxes And Audio Processor
Shure Incorporated Connect the Dante audio processor to the network switch to provide: ◦ Digital signal processing (acoustic echo cancellation) ◦ Digital-to-analog conversion to deliver Dante audio over an analog (VOIP or telephone line) output. ◦ Analog-to-digital conversion to deliver analog audio from the far end onto the Dante network. - Page 13 Shure Incorporated ① Microphone to network switch Connect the array microphone output with a network cable to any port on the switch that supplies power over ethernet (PoE). ② Computer to network switch Connect a computer to the network switch to provide control of the microphone and other networked components through the software control panel.
- Page 14 Shure Incorporated ③ ANI4OUT (digital-to-analog conversion) From the network switch: Use network cables to connect each ANI4OUT to the network switch. A single ANI4OUT re- ceives 4 channels of Dante audio, and converts them to 4 analog signals, delivered through XLR outputs or block connec- tors.
-
Page 15: Web Conferencing Software With Dante Virtual Soundcard
Shure Incorporated Web Conferencing Software with Dante Virtual Soundcard ① Microphone to network switch Connect the microphone output with a network cable to any port on the switch that supplies Power over Ethernet (PoE). ② Computer to network switch 15/55... - Page 16 Shure Incorporated Connect a computer to the network switch to provide control of the microphone and other networked components through the software control panel. The computer also runs Dante Virtual Soundcard, Dante Controller, and the web conferencing software. ◦ Dante Virtual Soundcard / Controller: Turn on the Dante Virtual Soundcard and use Dante Controller to route the micro- phone signal to the computer.
-
Page 17: Video Conference
Shure Incorporated Video Conference ① Microphone to network switch Connect the microphone output with a network cable to any port on the switch that supplies power over Ethernet (PoE). ② Computer to network switch Connect a computer to the network switch to provide control of the microphone and other networked components through the software control panel. -
Page 18: Hardware And Installation
Shure Incorporated ③ ANI4OUT (digital-to-analog conversion) Each ANI4OUT receives 4 channels of Dante audio, and converts them to 4 analog signals, delivered through XLR outputs or block connectors. Input: Connect the ANI4OUT to the network switch with a network cable Ouput: Connect the analog output to the audio input on the video codec ④... -
Page 19: Led Light Ring
Indicates mute status, with configurable color and behavior states. LED Light Ring You can adjust LED light ring settings using Shure Designer software or the device's web application. In Designer, go to Settings > Lights. In the web application, go to Configuration > Light Ring. -
Page 20: Installing The Cable-Exit Plug
Shure Incorporated Microphone Status LED Behavior / Color Channel identify: Light ring segment Firmware update in progress Green (ring fills up, turns off, repeats) Network reset: Red (rotates around ring) Reset Factory reset: Blue (rotates around ring) Error Red (split, alternate flashing) - Page 21 Shure Incorporated Note: If necessary, remove the retaining tabs to install thicker cable. Replace them after the cable is installed. Align the tube into the recessed area in the center of the microphone. Install the 3 screws (removed in step 1) to secure the tube.
- Page 22 Shure Incorporated Drill a 1-inch (2.5 cm) hole through the table. Guide the cable through the hole in the table. Then, place the tube through the hole in the table and gently press the microphone down. 22/55...
-
Page 23: Power Over Ethernet (Poe)
Each microphone has 4 channels that can be aimed independently, based on the seating arrangement. Each channel features independent polar patterns and additional channel settings. You can control these settings in Shure Designer software or in the device's web application. - Page 24 Shure Incorporated Toroid Pattern Applications The toroid pattern rejects sound from directly above the microphone to reduce noise from video projectors or other sources of unwanted sound. It is the simplest way to ensure equal coverage among all talkers, while retaining the benefits of the rejection provided by a directional polar pattern.
- Page 25 Shure Incorporated Noise from a ceiling-mounted projector is rejected, while all talkers are covered. 25/55...
- Page 26 Shure Incorporated For a table with a single microphone and more than 4 talkers, the toroid pattern to ensures that all voices are heard equally. Coverage With Multiple Microphones For large tables, a series of microphones captures all talkers. Place the microphones in the center of the table for balanced pickup and accurate aiming.
-
Page 27: Software Installation, Management, And Security
Learn more and download at www.shure.com/designer. Accessing the Web Application The Shure Web Server Discovery application finds all Shure devices on the network that feature a web-based GUI. Follow these steps to install the software and access the web application: ①... -
Page 28: Accessing The Web Application Without The Discovery App
Settings > About. The format for Shure device’s firmware is MAJOR.MINOR.PATCH. (Ex. 1.6.2 where 1 is the Major firmware level, 6 is the Mi- nor firmware level, and 2 is the Patch firmware level.) At minimum, devices that operate on the same subnet should have iden- tical MAJOR and MINOR release numbers. -
Page 29: Microphone Configuration
Shure Incorporated Microphone Configuration Control Software Overview The boundary microphone user interface provides flexible, in-depth control of the microphone to deliver exceptional results for nearly any room. The following control options are quickly accessible through a web browser on a desktop or mobile device: •... -
Page 30: Adding Or Removing A Channel
Shure Incorporated Pickup Pattern Directional Characteristic Use When Each pickup area features independent po- lar pattern control. Select each polar pattern setting based on the number of talkers in each pickup area and the table size or shape. Available patterns include:... -
Page 31: Templates
Shure Incorporated Templates Use a template as a starting point when configuring coverage. Templates only adjust coverage, and do not affect gain levels or other settings. Select the template that is the closest match to the seating scenario. Select OK. -
Page 32: Mute And Fader Groups
Mute group, muting any of those individual channels will mute all of the grouped channels. If you’re using Shure Designer software to configure your system, please check the Designer help section for more about this topic. -
Page 33: Parametric Equalizer (Peq)
Adjust frequency response for reinforcement systems To turn off all EQ filters, select Bypass all EQ. If you’re using Shure Designer software to configure your system, please check the Designer help section for more about this topic. Setting Filter Parameters Adjust filter settings by manipulating the icons in the frequency response graph, or by entering numeric values. - Page 34 Shure Incorporated Adjusts the range of frequencies affected by the filter. As this value increases, the bandwidth becomes thinner. Width Adjusts the range of frequencies affected by the filter. The value is represented in octaves. Note: The Q and width parameters affect the equalization curve in the same way. The only difference is the way the values are represented.
-
Page 35: Reset
Shure Incorporated Export Choose a channel to save the PEQ setting, and select Export to file. Import Choose a channel to load the PEQ setting, and select Import from file. When to Use the Channel and Automix Equalizers Apply Automix EQ to make system-wide changes, such as a treble boost to improve speech clarity. Use Channel EQ to make adjustments to a specific channel. -
Page 36: Low-Cut Filter
The microphone has 4 touch-sensitive mute buttons around the edge of the microphone. Pressing any button mutes the entire device. You can mute channels individually using Shure Designer software or the web application. If the Light Ring is set to dis- play Segments, the individual channel mutes are visible on the device. -
Page 37: Aes67
AES67 AES67 is a networked audio standard that enables communication between hardware components which use different IP au- dio technologies. This Shure device supports AES67 for increased compatibility within networked systems for live sound, inte- grated installations, and broadcast applications. -
Page 38: Encryption
All Shure devices on your network must use encryption. • Disable AES67 in Dante Controller. AES67 and AES-256 cannot be used at the same time. If you’re using Shure Designer software to configure your system, please check the Designer help section for more about this topic. 38/55... -
Page 39: Mute Synchronization
Mute status is synchronized in the devices using logic signals or USB connections. To use mute synchronization, enable logic on connected devices using the web application or Shure Designer software. Many Shure devices have logic enabled automatically. -
Page 40: Automix Settings
Automix Modes Classic Classic mode emulates the Shure SCM820 automixer (in its default settings). It is renowned for fast-acting, seamless channel gating and consistent perceived ambient sound levels. Off-attenuation in this mode is fixed at -12 dB per channel, regardless of the number of open channels. -
Page 41: Using A Third-Party Control System
Considerations for Shure devices controlled by DDM: • When you add Shure devices to a Dante domain, set the local controller access to Read Write. Otherwise, you won't be able to access to Dante settings, perform a factory reset, or update device firmware. -
Page 42: Qos (Quality Of Service) Settings
To send 8 channels from one device to all others on the network, 2 multicast flows are required. Networking Best Practices When connecting Shure devices to a network, use the following best practices: • Always use a "star" network topology by connecting each device directly to the switch or router. -
Page 43: Network Audio And Shure Control Data
Configuring IP Settings IP configurations are managed in Shure Designer software. By default, they are set to Automatic (DHCP) mode. DHCP mode enables the devices to accept IP settings from a DHCP server, or automatically fall back to Link-Local settings when no DHCP is available. -
Page 44: Setting Latency
Packet Bridge Packet bridge enables an external controller to obtain IP information from the control interface of a Shure device. To access the packet bridge, an external controller must send a query packet over unicast UDP* to port 2203 on the Dante interface of the Shure device. -
Page 45: Ip Ports And Protocols
MAC address, as array of 6 bytes Note: The Shure device should respond in less than one second on a typical network. If there is no response, try sending the query again after verify ing the destination IP address and port number. -
Page 46: Troubleshooting
Shure Incorporated Dante Audio & Controller Port TCP/UDP Protocol Description SNMP Used by Dante † [319-320]* Dante clocking 2203 Custom Required for packet bridge 4321, Dante Dante audio 14336-14600 [4440, 4444, Dante Dante audio routing 4455]* † 5353 mDNS Used by Dante... -
Page 47: Important Product Information
EMC conformance to Environment E2: Commercial and Light Industrial. Testing is based on the use of supplied and recommended cable types. The use of other than shielded (screened) cable types may degrade EMC performance. Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate this equipment. Industry Canada ICES-003 Compliance Label: CAN ICES-3 (B)/NMB-3(B) Authorized under the verification provision of FCC Part 15B. -
Page 48: What's In The Box
This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking. The CE Declaration of Conformity can be obtained from Shure Incorporated or any of its European representatives. For contact information please visit www.shure.com... -
Page 49: Specifications
Shure Incorporated Specifications General All specifications measured from cardioid polar pattern. Values for all patterns are within ± 3 dB of these specifications unless otherwise noted. Polar Pattern All channels independently adjustable Cardioid, Hypercardioid, Supercardioid, Toroid, Omnidirectional, Bidirectional Connector Type... -
Page 50: Frequency Response
Shure Incorporated Maximum SPL 1 kHz at 1% THD, -15 dB Gain Setting 115.2 dB SPL Signal-To-Noise Ratio Ref. 94 dB SPL at 1 kHz, -15 dB Gain Setting Cardioid 75 dB Toroid 67 dB Latency Not including Dante latency <1 ms... - Page 51 Shure Incorporated Hypercardioid 51/55...
- Page 52 Shure Incorporated Supercardioid Toroid 52/55...
- Page 53 Shure Incorporated Omnidirectional 53/55...
- Page 54 Shure Incorporated Cardioid 54/55...
- Page 55 Shure Incorporated Bidirectional 55/55...
