Vertical XCELERATOR IP Quick Start Manual page 2

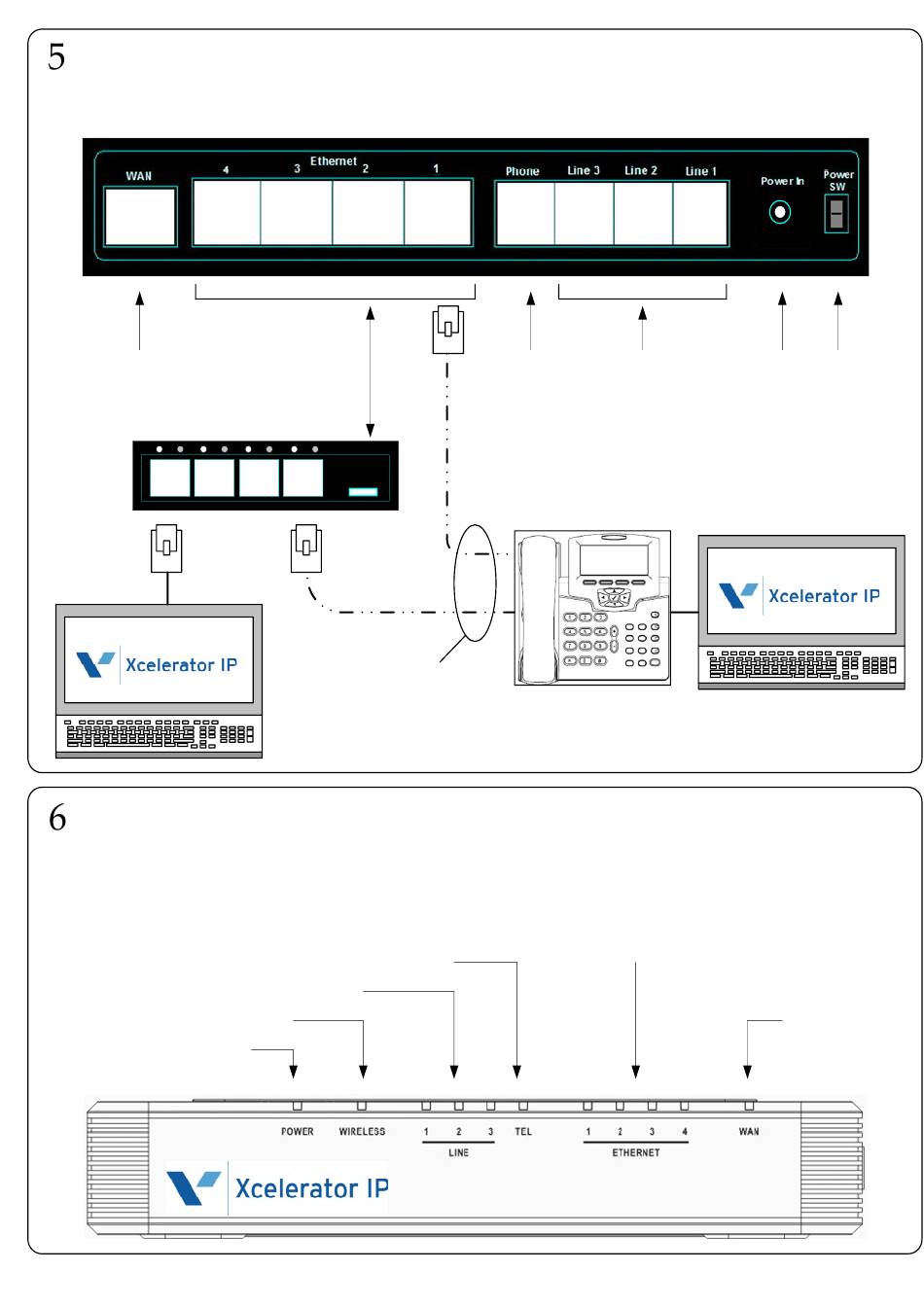

CONNECTIONS
A detailed description of the operation of these ports can be found in the Administrator Guide on the documentation
CD included with the Xcelerator IP gateway.
RJ45 Wide Area
Network connection
for cable modem/
DSL modem
Switch or
POE Switch
STATUS INDICATORS
The Xcelerator IP status LED lamps provide real time indicators of the operation of the gateway and can be used to
assist with troubleshooting.
When the specific lamp is lit, it is indicating:
TELCO Trunk is in use
Wireless Access Point is active
Power ON
All manuals and user guides at all-guides.com
10/100baseT
Connectors for
IP2007 phones or
Ethernet switch
Standalone
PCs can be
routed
IP2007 can be
through the
connected to
Xcelerator IP
Xcelerator IP
or hub/switch
Analog SLT port is in use
Analog CO
RJ11
Telephone lines
Connector for
Analog SLT
phone or fax
machine
Note: Refer to the IP2007 User
Guide for installation and use of the
IP2007 telephone
The IP2007 contains a 10/100 switch which allows for
connecting a PC to the network via the phone's Ethernet
Transmission and receipt of
data on the individual ports
AC Power ON/OFF
connector Switch
connection
WAN port
connected
