Application Note – Networking Xcelerator IP Systems
This Application Note addresses the procedure for networking Xcelerator IP systems together.

Xcelerator IP Networking

This document describes the networking of two Xcelerator IP systems.
Site "A"
Phoenix
WAN IP 192.168.0.154 will be the Master with extension 100-125
Site "B"
Scottsdale WAN IP 192.168.0.129 will be the Slave with extension 150-175
Login to the Phoenix Xcelerator IP, click on System and then XIP Dynamic Discovery.

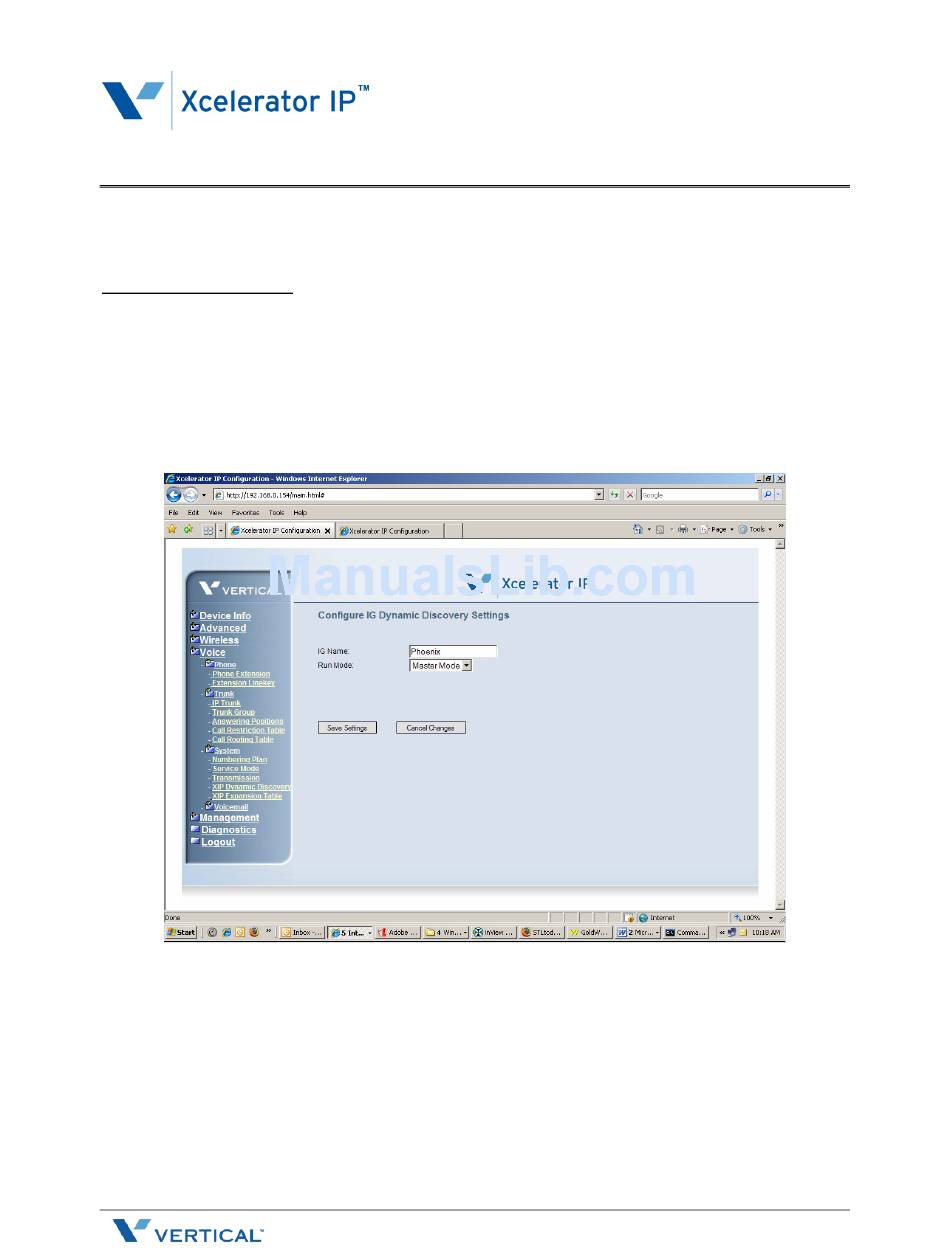

You will see the following screen:
At this time, configure the Master Xcelerator IP. In the IG Name box put the location name of the
Master Xcelerator IP (Phoenix). For the Run Mode select Master Mode then click Save Settings
When complete, browse to the Slave Xcelerator IP (Scottsdale) system and login. Click on Voice
then System and then click on XIP Dynamic Discovery. You will see the following screen:
1
Xcelerator IP 07009
July 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Xcelerator IP and is the answer not in the manual?

Questions and answers

Related Manuals for Vertical Xcelerator IP

Summary of Contents for Vertical Xcelerator IP

  • Page 1 You will see the following screen: At this time, configure the Master Xcelerator IP. In the IG Name box put the location name of the Master Xcelerator IP (Phoenix). For the Run Mode select Master Mode then click Save Settings When complete, browse to the Slave Xcelerator IP (Scottsdale) system and login.
  • Page 2 Change Run Mode setting to Slave Mode. The following screen will be displayed: You will enter the name of the local Xcelerator IP in the IG Name box, in this case it is Scottsdale, and then fill in the Master IP address (which will be the WAN IP address of the Phoenix Xcelerator IP).
  • Page 3 Click Save Settings. You need to give the Xcelerator IP a little time to make the link from Master to Slave Xcelerator IP. Click on the XIP Expansion Table. You will see the following screen: July 2007...
  • Page 4 Scottsdale office. We will start by routing station calls from Phoenix to Scottsdale. Browse to the Phoenix Xcelerator IP and login. In the column on the left side the screen click on Voice, then click on Trunk, then click on Call Routing Table.
  • Page 5 On the first line, you will see that the From is 0 and the To is 9. This is the default setting, indicating all calls that start with 0-9 with a min of 1 digit and a max of 99 will be sent out CO group 1 (which by default are the PSTN lines).
  • Page 6 Destination: IG Expansion, with Scottsdale as the network link to use to establish the call. • The same entries need to be configured at the Scottsdale Xcelerator IP. Below is a screen shot of what the Scottsdale Xcelerator IP Call Routing Table should look like.
  • Page 7 602 area code and use the trunks out of Phoenix, the configuration in Scottsdale would look like this: This concludes the Call Routing Section of the Xcelerator IP. If you have any questions, please contact Vertical Customer Support. July 2007...
