Oven Assembly
Stacking a CTBR-AP on top of a Mark V
1. Lay the Mark V on its back.
2. Remove the 25" legs. Pry the casters out of the old
legs.
3. Attach the 6" legs with casters as follows:
NOTE: The locking casters must be installed on the
front of the oven.
a. Align the threaded stud in each leg with the nut
located inside each bottom corner of the oven
frame. Turn the legs clockwise and tighten to the
nearest full turn.
b. Align the two leg plate holes in each leg with
those in the oven bottom. Secure each leg using
two 1/2" bolts.
c. Pry the foot out of the 6" legs. Snap the casters
into the legs.
d. Tip the oven up on the casters.

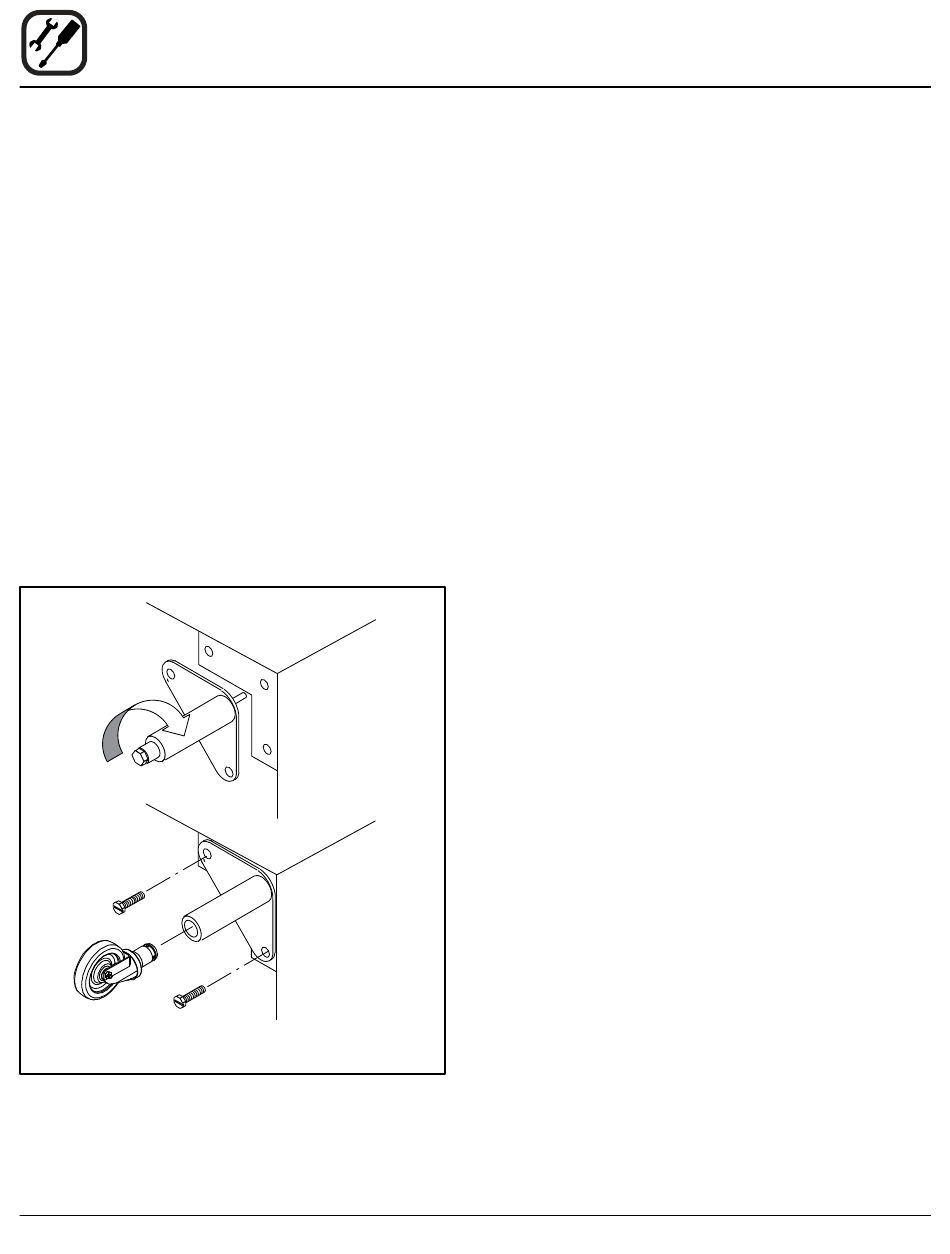

Attaching the 6' legs and casters
Figure 5
4. Remove the crown trim from the Mark V.
5. Bolt the stacking plate to the top of the Mark V with
the studs facing up.
6. Reinstall the crown trim.
7. Lay the CTBR-AP on its back. Attach the self adhe-
sive gasket tape to the front and side edges on the
bottom of the unit.
8. Set the CTBR-AP upright on top of the Mark V.
9. Remove the control compartment cover and access
panel from the CTBR-AP.
10. Align the front and rear bolt holes of the CTBR-AP
with the studs on the stacking plate.
11. Place a nut and washer on each of the studs and
tighten securely.
12. Replace the control compartment cover and access
panel.
13. Insert the flue extension over the flue on the Mark V.
Attach using screws provided.
NOTE: If the oven has a vent guard it must be re-
moved before installing the flue extension.
14. Place the flat plate of the flue brace on top the CTBR-
AP. The two holes in the end of the brace must line
up with the holes in the flue extension. Attach the flue
brace to the flue extension with the screws provided.
15. Place the top cap on top of the CTBR-AP.
NOTE: This will secure the flue brace.
Oven Leveling
1. Place a level on top of the oven. Loosen the set
screws on the side of each caster. Turn the adjust-
ment collar clockwise to raise and counter clockwise
to lower the oven.
2. When the oven is level, tighten the casters by turning
the two set screws on the side of each caster assem-
bly.
