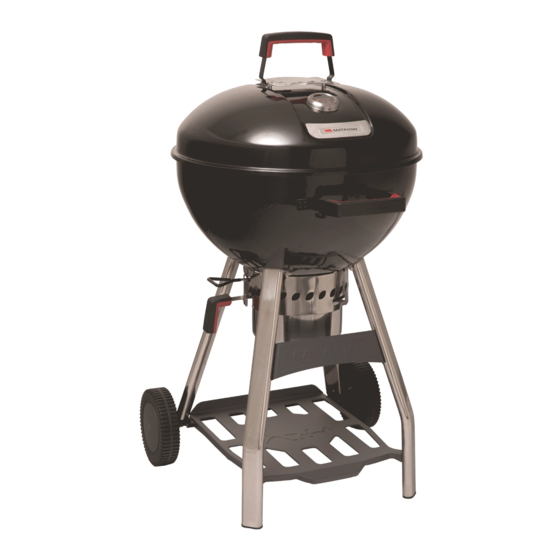

- Page 1 Before using the BBQ, remove any packaging material within and around the BBQ supplied for protection during transit. radiant C H A R C O A L B B Q Retain manual for further reference.
-
Page 2: Table Of Contents
Part diagrams Hardware list Assembly instructions 13-26 Warranty CONTACT INFORMATION For spare parts, order from your nearest Bunnings Warehouse. For service and warranty queries, please contact Mayo Hardware at matador@mayohardware.com.au or call; 1300 360 211 (AUS) 09 415 6240 (NZ) -
Page 3: Features & Benefits
Large Handles Bottom Shelf Lid Hanger Front Brace Bottom Heat Shield Lid Air Vent Ash Catcher Damper Temp Gauge Hinged Cooking Tool Charcoal Grate Hangers Grate BARBECUE DIMENSIONS Length Width Height 620 mm 708 mm 1120 mm MATADOR INSTRUCTION MANUAL... -
Page 4: Important Safety Information
Important safety information Read the Instruction Manual thoroughly before assembling or using the BBQ. flame. Do not use water to extinguish grease CAUTION: FOR OUTDOOR USE ONLY. fires. • We recommend assembling this BBQ with • Use caution and common sense when operating another person. -
Page 5: Do's & Don'ts
DO NOT attempt to move the BBQ. • Wear protective BBQ gloves. • DO NOT touch any hot BBQ surfaces • Keep children away from hot surfaces • DO NOT wear loose clothing or allow hair to come in contact with the grill. MATADOR INSTRUCTION MANUAL... -
Page 6: Positioning The Bbq
Positioning the BBQ • This BBQ should only be used in an above • Any enclosure in which the BBQ is used shall ground, open air situation with natural comply with one of the following: ventilation. • An enclosure with walls on one side, but at least •... -
Page 7: Before You Cook
Step 4 - Place the chimney starter on top of the charcoal grate inside the BBQ Step 5 - Fill the chimney starter with charcoal to about 5cm below the top rim MATADOR INSTRUCTION MANUAL... -
Page 8: Using The Bbq
There are several techniques of cooking that can be your BBQ. This zoning of the BBQ creates one side applied with your Matador Radiant BBQ. See below with a higher temperature for grilling and searing. to choose the one that best suits your needs. For... -
Page 9: Adding Fuel During Cooking
Apply a light coat of oil or vegetable oil spray to minimise rusting. vegetable oil or spray to the interior surface to prevent rusting. Do not coat charcoal grate. MATADOR INSTRUCTION MANUAL... -
Page 10: Exploded Parts Diagram
Exploded Parts Diagram... -
Page 11: Part Diagrams
13. Ash Catcher Ring 14. Right Rear Leg 15. Left Rear Leg 16. Front Legs x 2 17. Front Brace 18. Bottom Shelf 19. Axle 20. Wheel x 2 21. Wheel Cover x 2 22. Temperature Gauge 23. Lid Hook MATADOR INSTRUCTION MANUAL... -
Page 12: Hardware List
Hardware list Part Name Hardware Image Quantity BOLT - M6 X 30 BOLT SQUARE SHOULDER - M6 X 30 BOLT SQUARE SHOULDER - M6 X 12 BOLT - M6 X 12 WING NUT - M6 DOME NUT - M6 NUT - M6 WASHER - M8 X 16 WASHER - M6 X 12 “R’... -
Page 13: Assembly Instructions
Symbol: The following symbols will be shown in each procedure for indication of tightening the bolt and nut if necessary. Hand Tighten Only at this stage: Tighten with Tools at this stage: Pay Attention at this stage: MATADOR INSTRUCTION MANUAL... - Page 14 Assembly Instructions Step 1 - attach the rear legs Hardware Needed Pay attention when assembling BOLT SQUARE the rear legs to ensure they are on SHOULDER - M6 the correct side of the fire bowl. X 12 On the bottom of the Rear Legs are the letter ‘L’...
- Page 15 Fire Bowl (7). 2.3 Place Front Leg onto the bolts protruding through the Fire Bowl (7). Place and hand tighten Dome Nuts (F) to loosely secure the leg tube. 2.4 Repeat for the other leg. MATADOR INSTRUCTION MANUAL...
- Page 16 Assembly Instructions Step 3 - attach the bottom shelf NOTE: Hardware Needed This stage will require a Phillips head screwdriver and a 10mm socket (or adjustable wrench) to BOLT - M6 X 30 tighten the securing hardware. BOLT - M6 X 12 NUT - M6 3.1 Locate the Bottom Shelf (18) in the middle of the four legs with the upward lip detail being orientated at the back of the BBQ.
- Page 17 4.3 Once wheels are secured, attach the Wheel Covers (21) to each wheel. Wheel covers are a push fit onto the wheels. Align the three legs on the back of the Wheel Covers with the corresponding holes on the wheels and push until they clip into place. MATADOR INSTRUCTION MANUAL...
- Page 18 Assembly Instructions Step 5 - attach the front brace NOTE: Hardware Needed This stage will require a Phillips head screwdriver to tighten the securing hardware. BOLT - M6 X 12 5.1 Locate the Front Brace (17) between the Front Legs (16) and align it with the our threaded mounting points.
- Page 19 6.3 Slide the four location tabs on the Ash Catcher Holder (13) into the slot detail on the top of each leg to Step 7 - Tighten Fasteners 7.1 Now that you have located the Ash Catcher Holder, return and tighten the bolts assembled in Steps 1 & 2. MATADOR INSTRUCTION MANUAL...
- Page 20 Assembly Instructions Step 8 - Bottom air vent assembly 8.1 Place the bent tabs of the Fire Bowl Air Damper (8) through the hole in the bottom of the Fire Bowl (7). 8.2 Rotate the Damper (8) until the tab with the slotted hole is facing the opening in the Ash Catcher Ring (13) where the Air Vent Handle (9) will come through.
- Page 21 9.2 Take an M6 x 12 Bolts (C) and thread it through the Ash Catcher Handle (11) from the inside of the Ash Catcher Pan (12). Place the Spring Washer (R) onto the bolt and fasten with the Dome Nut (F) to secure. MATADOR INSTRUCTION MANUAL...
- Page 22 Assembly Instructions Step 10 - Attach Ash Catcher 10.1 To attach the Ash Catcher lift it up to the bottom of the Ash Catcher Ring (13) and insert the 3 tabs into the corresponding cut outs. When inserted, simply rotate the Ash Catcher so the tabs rest on the holder to secure it in place.
- Page 23 11.4 Place the second Washer (H) onto the top of the spring and push down and hold it. 11.5 Whilst holding the washer down, attach the securing Nut (G) to capture the assembly. You can tighten and loosen this nut to control the stiffness of the air vents rotation as desired. MATADOR INSTRUCTION MANUAL...
- Page 24 Assembly Instructions Step 12 - Attach lid handle and hanging hook Hardware Needed NOTE: For ease of assembly, it is BOLT - M6 X 30 recommended that you assemble each side of the handle one at a time. For ease, ask for additional help WING NUT - M6 when assembling this handle assembly.
- Page 25 13.1 Lower the Charcoal Grate (6) down into the Fire Bowl (7) until it comes to rest on the lower positional tabs. Step 14 - Assemble the cooking grate 14.1 Lower the Cooking Grate (5) down into the Fire Bowl (7) until its comes to rest on the upper positional tabs. MATADOR INSTRUCTION MANUAL...
-
Page 26: Assembly Instructions
Assembly Instructions Step 15 - Using the lid and hanging hook Step 16 - Lid hanging feature... -
Page 27: Warranty
Thank you for purchasing one of our quality Matador BBQs. YOUR MATADOR BBQ IS COVERED AGAINST BURN THROUGH AND RUST THROUGH OF THE FIRE BOWL AND LID FOR A PERIOD OF 10 YEARS, FOR PARTS AND LABOUR, REPAIR OR REPLACEMENT. - Page 28 To make a claim under warranty, take the product (with proof of purchase) to any Bunnings store (see www. bunnings.com.au for store locations) or contact Mayo Hardware Pty Ltd matador@mayohardware.com.au. Mayo Hardware Pty Ltd bears reasonable, direct, expenses of claiming under warranty. You may submit details and proof to Mayo Hardware Pty Ltd for consideration.
- Page 29 Refer to the troubleshooting section of this operating manual or contact the Mayo Hardware through the below details: Phone (Aus) 1300 360 211 Phone (NZ) 09 416 6240 Email: matador@mayohardware.com.au FOR SPARE PARTS Contact Mayo Hardware through the below details: Phone (Aus) 1300 360 211 Phone (NZ) 09 416 6240 Email: matador@mayohardware.com.au MATADOR INSTRUCTION MANUAL...
- Page 30 Notes...
- Page 31 Notes MATADOR INSTRUCTION MANUAL...
- Page 32 Visit www.matadorbbqs.com.au For technical and warranty support call 1300 360 211 (AUS) 09 415 6240 (NZ) Your purchase receipt will be required for warranty claims. For spares parts contact your local Bunnings Warehouse. PB0042f...
