Summary of Contents for Matador LEGEND 4

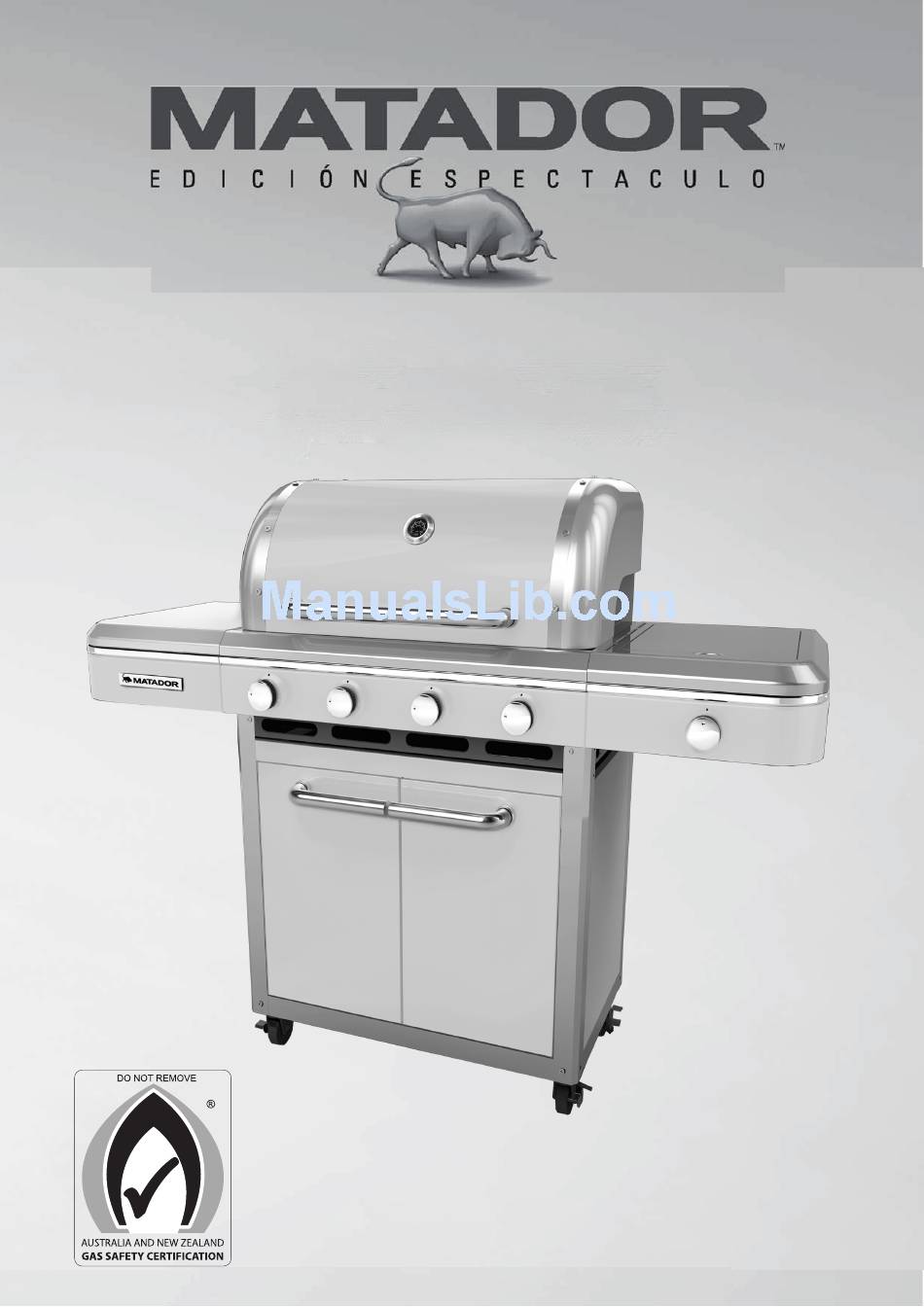

- Page 1 LEGEND 4 Retain manual for future reference.
-
Page 2: Table Of Contents
CONNECTING NATURAL GAS CONTACT INFORMATION For spare parts order from your nearest Bunnings Warehouse. For service warranty and Natural Gas Conversion queries call 1800 680 405 or email enquiry@focuslifestyle.com.au Your purchase receipt is required for all warranty claims. MATADOR INSTRUCTION MANUAL... -
Page 3: Gas Safety / Technical Data
If storing the barbecue indoors. The gas cylinder must be removed. manipulated by the user. This barbecue is only to be used outdoors. Store gas cylinder outdoors in a well ventilated area. Refer to Page 5 for gas cylinder safety. MATADOR INSTRUCTION MANUAL... - Page 4 Keep clear of the gas cylinder. cylinder only - Do not disconnect hose from the appliance. Turn all controls on the barbecue to OFF. Extinguish any open flame. If odour continues, immediately call you gas supplier or fire department. MATADOR INSTRUCTION MANUAL...
- Page 5 SERVICE AGENT MATADOR INSTRUCTION MANUAL...
- Page 6 OUTDOOR AREAS SAFE APPLIANCE LOCATIONS MATADOR INSTRUCTION MANUAL...
-
Page 7: Assembly
ASSEMBLY CARTON CONTENTS LIST DESCRIPTION DESCRIPTION Warming Rack BBQ Body Assembly Side Shelf W. timer knob Grill Plate Side Burner Assembly Hot Plate Pot Support Grease Receptacle MATADOR INSTRUCTION MANUAL... - Page 8 Casters without brake to the Trolley Seat on the right side of the Trolley bottom . W rench Qty. 1 ITEM #54 front ITEM #56 back ITEM #55 Install Cart legs ITEM #44 Phillips Head Screw 1/4" 3/8" Qty. 8 ITEM #45 back Flange Nut : 1/4" Qty.8 front MATADOR INSTRUCTION MANUAL...
- Page 9 Qty. "B" "B" Phillips Head Screw Qty. ITEM #49 "A" Flange Nut : M3 Qty.8 ITEM #50 ITEM #51 Install Trolley Side Panels. Phillips Head Screw 3/16" 3/8" Qty. 8 ITEM #43 Flange Nut : 3/16" Qty. MATADOR INSTRUCTION MANUAL...
- Page 10 Phillips Head Screw 3/16" 3/8" Qty. 4 ITEM #42 Flange Nut : 3/16" Qty.8 Install Separation Panel front ITEM #46 back Phillips Head Screw front 3/16 " 3/8" ITEM #48 Qty. 8 back Flange Nut : 3/16" front Qty.4 MATADOR INSTRUCTION MANUAL...
- Page 11 Note: This step requires two people. Phillips Head Screw 1/4" 3/8" Qty. 8 Install Side Shelf and side Burner. Phillips Head Screw 1/4"x1/2" Qty. 8 pre-installed screw-4 places Flange Nut : 1/4"x1/2" Side Shelf Qty.4 Side Burner Assembly MATADOR INSTRUCTION MANUAL...
- Page 12 To prevent the risk of cross threading the connection finger tighten first . Then tighten securely with a spanner. Do not use thread sealant tapes or similar products on this connection. Leak check before operating the appliance, refer page 5. MATADOR INSTRUCTION MANUAL...
- Page 13 Cylinder valve must face to right front of trolley once tank is attached. Failure to install cylinder correctly may allow gas hose to be damaged in operation, resulting in the risk of fire. MATADOR INSTRUCTION MANUAL...
- Page 14 When the barbecue is not in use, the gas must be turned off at the cylinder. The appliance control knob must be in the "OFF" position before opening the cylinder valve. Disconnect and remove gas cylinder when manoeuvring the barbecue over uneven surfaces or carrying up and down stairs. MATADOR INSTRUCTION MANUAL...
-
Page 15: Operating Procedure
The hood must be in the open position for lighting. Ensure no packing material is left in BBQ before lighting appliance. Do not smoke when attempting to ignite barbecue. Never use volcanic rock. Heat beads or other material. Always use protective gloves when handling hot components. MATADOR INSTRUCTION MANUAL... - Page 16 The hood must be in the open position for lighting. Ensure no packing material is left in BBQ before lighting appliance. Do not smoke when attempting to ignite barbecue. Never use volcanic rock. Heat beads or other material. Always use protective gloves when handling hot components. MATADOR INSTRUCTION MANUAL...
-
Page 17: Fault Finding
Shut off gas supply to the gas barbecue. Turn the control knobs to off position. Open the barbecue hood. Put out any flame with a fire extinguisher. Once the barbecue has cooled down,clean the burner tubes and burners. MATADOR INSTRUCTION MANUAL... -
Page 18: Care & Maintenance
Allow to cool completely before aluminium foil particularly the bottom. It could result in an disposing of the contents. accumulation of heat which might affect the cooking results and also damage the oven enamel. MATADOR INSTRUCTION MANUAL... - Page 19 MAINTENANCE Burner Port Burner Tube MATADOR INSTRUCTION MANUAL...
-
Page 20: Parts List / Diagram
Grease Tray Bracket P02703075B Grease Tray-Small P05701057E Door Handle P00205119M Door-L P04305077Y Door-R P04306074Y Cart Bracket, Front P03301081Y Magnet seat P05523059M 3" Castor w/ o brake P05112035A 3" Castor w/ brakePack P05112034A Trolley Bottom Panel P010030703 Hardware Pack P06032001A MATADOR INSTRUCTION MANUAL... -
Page 21: Parts Diagram
PARTS DIAGRAM Contact your place of purchase or the service agent to enquire about parts availability and or service MATADOR INSTRUCTION MANUAL... -
Page 22: Warranty
FOR CUSTOMER REFERENCE (Record and file in a safe place) Receipt Number Purchased from Serial No. Date purchased Model Name and Number NOTE: The serial number is located on the date plate located inside the cabinet door. MATADOR INSTRUCTION MANUAL... - Page 23 However, if a spare part is not in stock Focus Lifestyle Products reserves the right to send a similar part to resolve the problem. Model of BBQ Part that requires replacement Year of purchase Your Contact Details MATADOR INSTRUCTION MANUAL...
-
Page 24: Connecting Natural Gas
3. Upon completion of the conversion, the Gas Fitter/Plumber is Legally required to issue a Compliance Certificate. 4. Do Not attempt to complete the conversion yourself. 5. Failure to comply with these requirements and Installation Code AS5601 will automatically void the Warranty for this product. MATADOR INSTRUCTION MANUAL... - Page 25 MATADOR INSTRUCTION MANUAL...
- Page 26 For technical & warranty support and Natural Gas Conversion call 1800 680 405 Email: enquiry@focuslifestyle.com.au Your purchase receipt will be required for warranty claims. For spare parts contact your local Bunnings Warehouse 92013...
