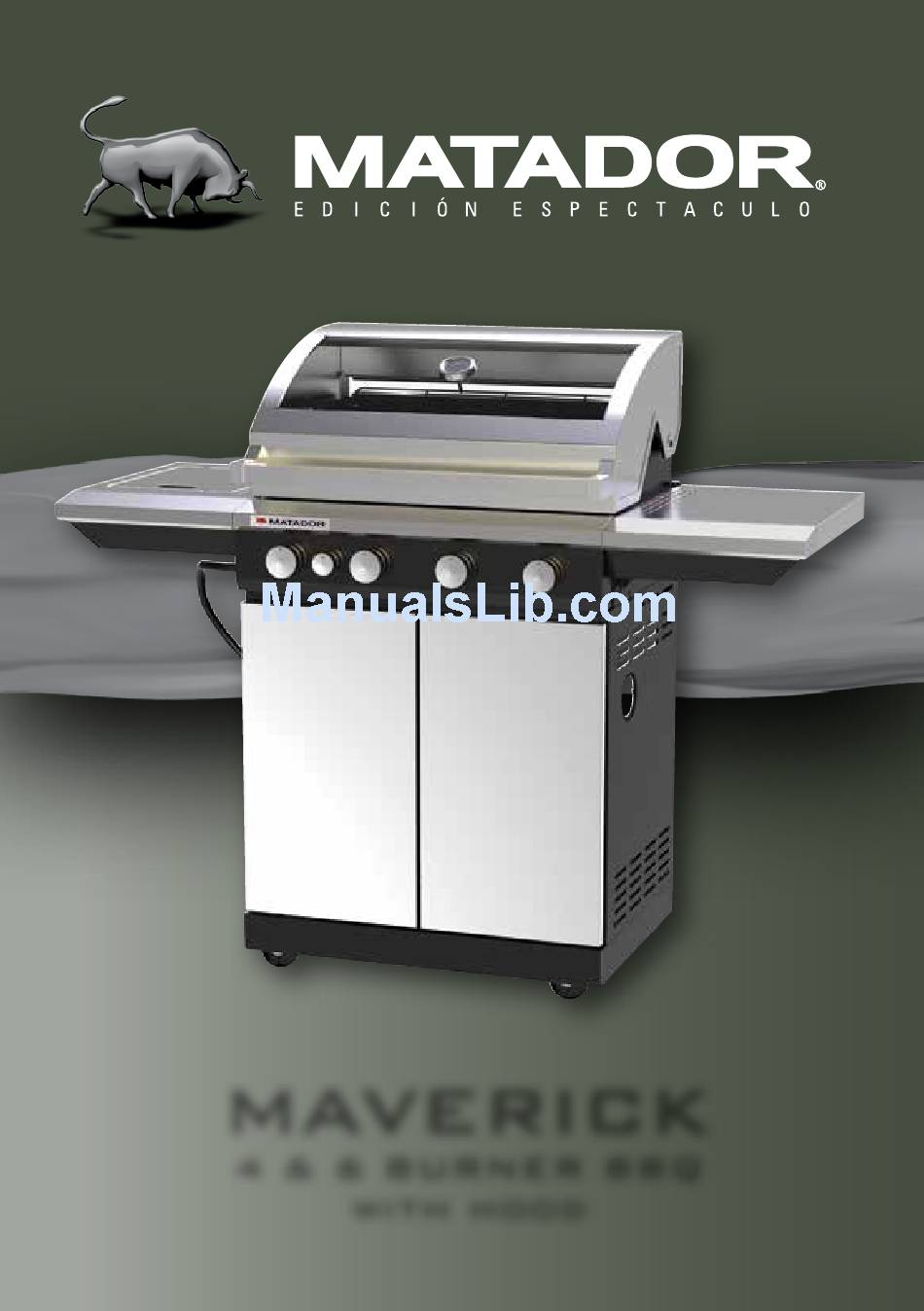

- Page 1 MAVERICK 4 & 6 BURNER BBQ with hood 03154 07/14 Retain manual for future reference...
-
Page 2: If You Smell Gas
General InformatIon Hose & regulator Safety The regulator and hose assembly supplied with ImPortant the barbecue are suitable for Propane Gas or Universal L.P.G. only. Read these instruction carefully prior to use. A gas regulator adjusted to have an outlet Familiarise yourself with the appliance before pressure of 2.75kPa is supplied for connection to connecting it to it’s gas container. -
Page 3: For Your Safety
If tHere IS a leaK for YoUr SafetY • Turn the cylinder off. • Ventilate the area to disperse gas. • Failure to comply with these instructions • Check all connections. could result in a fire or explosion which • If leak persists, keep the cylinder upright. could cause serious bodily injury, death or Keep skin away from any gas or liquid property damage. -
Page 4: General Information
General InformatIon location of your Barbecue for YoUr SafetY DO NOT use your barbecue in garages, porches, sheds, breezeways, or other enclosed areas. Your barbecue is to be used OUTDOORS. The • Do not store or use petrol or other barbecue is not intended to be installed in or on flammable liquids in the vicinity of this or recreational vehicles and/or boats and should... -
Page 5: Care And Maintenance
Care & maIntenanCe As with all appliances, proper care and Care of Cooking Surface maintenance will keep them in top operating Use and care of the cooking surface is condition and prolong their life. Your new important. Do not use pans on the cooking gas barbecue is no exception. -
Page 6: Exploded Diagram
4B eXPloded dIaGram... - Page 7 6B eXPloded dIaGram...
-
Page 8: Parts List
4B PartS lISt 1. Body Assembly 2. Side Burner 3. Side Shelf 4. Base Panel 5. Left Side Panel Assembly Assembly 6. Right Side Panel 7. Back Panel 8. Front Beam 9. Door Assembly 10. Cabinet 2pcs Separation Panel 11. Drip Tray 12. - Page 9 6B PartS lISt 1. Body Assembly 2. Side Burner 3. Side Shelf 4. Base Panel 5. Left Side Panel Assembly Assembly 6. Right Side Panel 7. Back Panel 8. Front Beam 9. Door Assembly 10. Cabinet 2pcs Separation Panel 11. Drip Tray 12.
-
Page 10: Assembly Instructions
4B/6B Bolt PaCK A. Cushion Rubber B. M6*15 Screw C. M4*8 Screw D. M4*10 Screw 2pcs 55pcs 11pcs 24pcs E. M6 Shoulder Screw F. M6 Flat Washer G. M6 Spring Washer H. M6 Nut 4pcs 24pcs 24pcs 4pcs aSSemBlY InStrUCtIonS Remove any transit protection material. - Page 11 SteP 2 Use M6 x 15mm screw (B) x 4 pcs to attach cabinet left side panel (5) and cabinet right side panel (6) to the base panel (4). SteP 3 Use M6 x 15mm screw (B) x 5 pcs to attach cabinet back panel (7).
- Page 12 SteP 4 Use M6 x 15mm screw (B) x 4 pcs to attach cabinet horizontal beam (8). Use M6 x 15mm screw (B) x 8 pcs to attach triangle (20) x 2 pcs. Note: Please DO NOT tighten the screws of this step now. SteP 5 Use M4 x 8mm screw (C) x 5 pcs to attach the fat cup box (25) beneath the separation panel.
- Page 13 SteP 6 Use M6 x 15mm screw (B) x 4 pcs to attach grease tray rail (12/13) on the top of the cabinet separation panel. SteP 7 Put the grease tray (1) on the top of the cabinet separation panel. Make sure the hole in the grease tray is in line with the hole in the separation panel.
- Page 14 SteP 8 Use M4 x 10mm screw (D) x 24 pcs to attach the door hinge (21) x 4 pcs to the cabinet door (9) x 2 pcs. Note: There are two adjustable screws on the door hinge, which can help you adjust the gap between the two doors.
- Page 15 SteP 9 Put the firebox assy. (1) on the top of the cart, open the hood and then use M6 x 15mm screw (B) x 4 pcs, M6 flat washer (F) x 4 pcs and M6 spring washer (G) x 4 pcs to fix the firebox assy. to the cart.
- Page 16 SteP 11 Attach M6 shoulder screw (E) x 2 pcs, M6 nut (H) x 2 pcs, flat washer (F) x 2 pcs and spring washer (G) x 2 pcs to the side shelf brackets’ lower holes and then hang the foldable side shelf onto them.
- Page 17 SteP 13 Use M6 x 15 screw (B) x 4 pcs to attach the side burner assy. to the firebox. Then adjust the side burner fascia to align with the main fascia and tighten the screws. SteP 14 Use M4 x 8mm screw (C) x 3 pcs to fix the injector bracket to the side burner assy.
- Page 18 SteP 15 SteP 16 Attach the side burner body to the side burner Insert the fat cup into the fat cup box beneath assembly and then insert the ignition wire into the separation panel. Slide in fully to the end. the end of the ignition pin.
- Page 19 SteP 18 Open the cabinet door, and let the hose go through the cabinet side panel to connect to the cylinder. Open the cylinder valve and leak test all connections with a soapy water solution. Note: 4B Shown BBQ SPeCIfICatIonS overall Barbecue dimensions - Including Side Shelves Barbecue Hood...
-
Page 20: General Assembly
General aSSemBlY lIGHtInG ProCedUre Connecting & disconnecting to Gas Source Familiarise yourself with the general information Burner operation & Ignition System Check and safety guidelines located at the front of this 1. With cylinder valve in ‘OFF’ position push and manual. -
Page 21: Operation
oPeratIon Burner operation & Ignition System Check Problem Possible Reason Solution Valve on gas bottle closed Open valve on gas bottle Control knob is closed Turn knob to high when lighting Burner will not ignite Igniter is faulty Use a long barbecue match. Insert through the hole at side of barbecue Burner has gone out Check that the gas bottle is not empty and... -
Page 22: Natural Gas Conversion
natUral GaS ConverSIon ServICInG InStrUCtIonS Installation, operation & maintenance Instructions Appliances should be serviced at least annually and servicing must only be carried out by a to Be InStalled onlY on or In a non- Licensed Plumber or Authorised Person. ComBUStIBle enCloSUre Clean the Burner Ports and top with a Soft Note: Recommended clearances must be... -
Page 23: Safe Appliance Locations
Safe aPPlIanCe loCatIonS This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. any enclosure in which the appliance is used shall comply with the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover. -
Page 24: Product Warranty
Any repair does not extend the warranty period. MONTHS of the date of purchase of the product. To make • Any parts other than original Matador parts will void a claim under the warranty, take the product (with proof of this warranty.
