Mounting the 6200

Check the list below to make sure you have performed all the necessary configuration tasks that require
accessing internal components (DIP switches and jumper JU2).
• Select device address (DIP switches). If you are not connecting multiple 6200 units in an RS-232C daisy chain, use the
factory setting. If you need to change this setting, refer to page 4 for instructions.
• Select sinking or sourcing configuration for the 24 programmable inputs (jumper JU2). If your application requires the 6200's
24 programmable inputs (on the
application requires the programmable inputs to sink current, refer to page 4 for instructions.

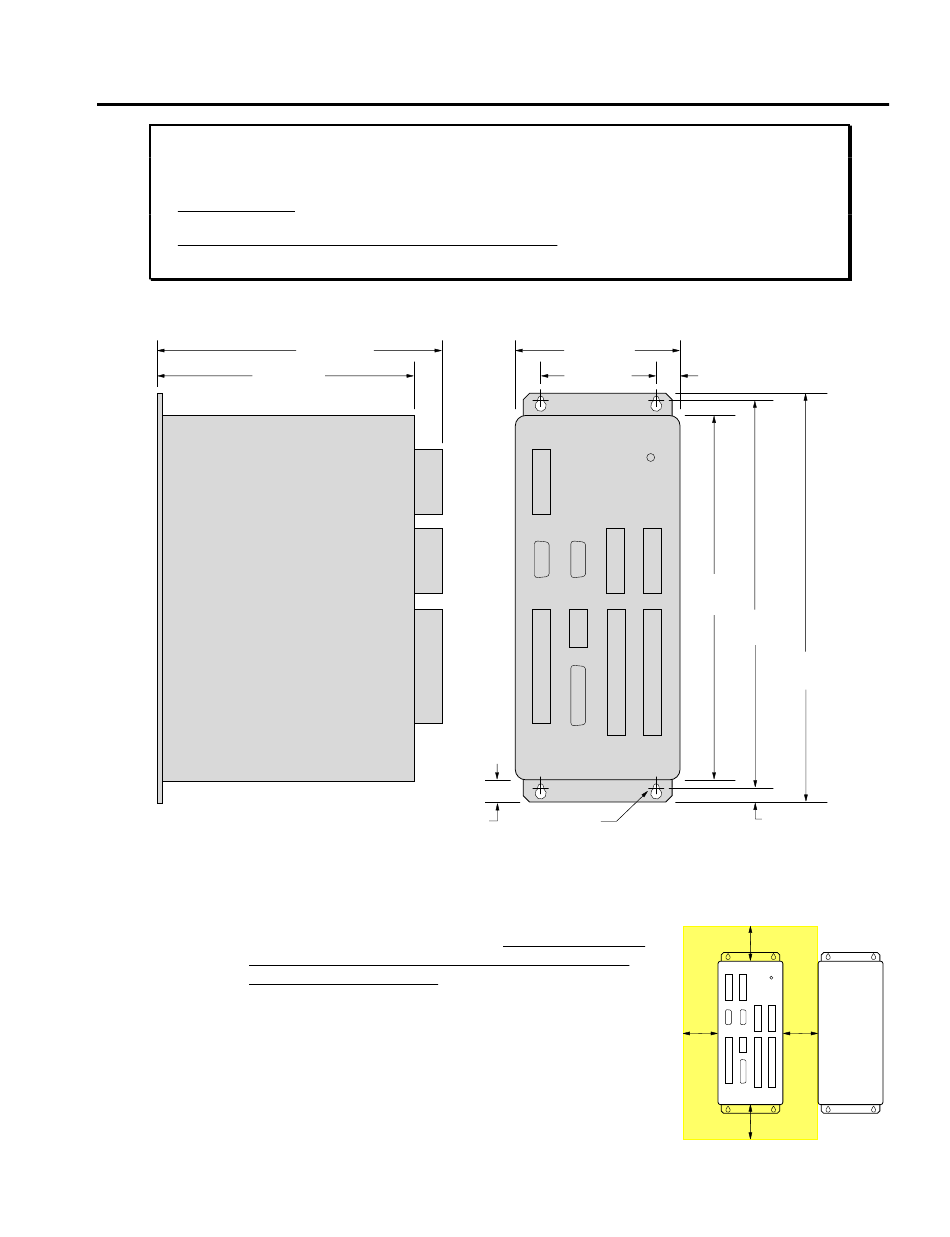

7.76 (197.10)
inches (millimeters)
Environmental
Temperature. Operate the 6200 in ambient temperatures
Considerations between 32°F (0°C) and 122°F (50°C). Provide a minimum of
2 inches (50.8 mm) of unrestricted air-flow space around the
6200 chassis (see illustration). Fan cooling may be necessary
if adequate air flow is not provided.
Humidity. Keep below 95%, non-condensing.
Airborne Contaminants, Liquids. Particulate
contaminants, especially electrically conductive material, such
as metal shavings and grinding dust, can damage the 6200. Do
not allow liquids or fluids to come in contact with the 6200 or
its cables.
