Simpli Home ACADIAN WS5113-4-BL Assembly Manual

2 pack parson chair
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ACADIAN / NORMANDY / BRUNSWICK
2 PACK PARSON CHAIR
MODEL # WS5113-4-BL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACADIAN WS5113-4-BL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simpli Home ACADIAN WS5113-4-BL

Summary of Contents for Simpli Home ACADIAN WS5113-4-BL

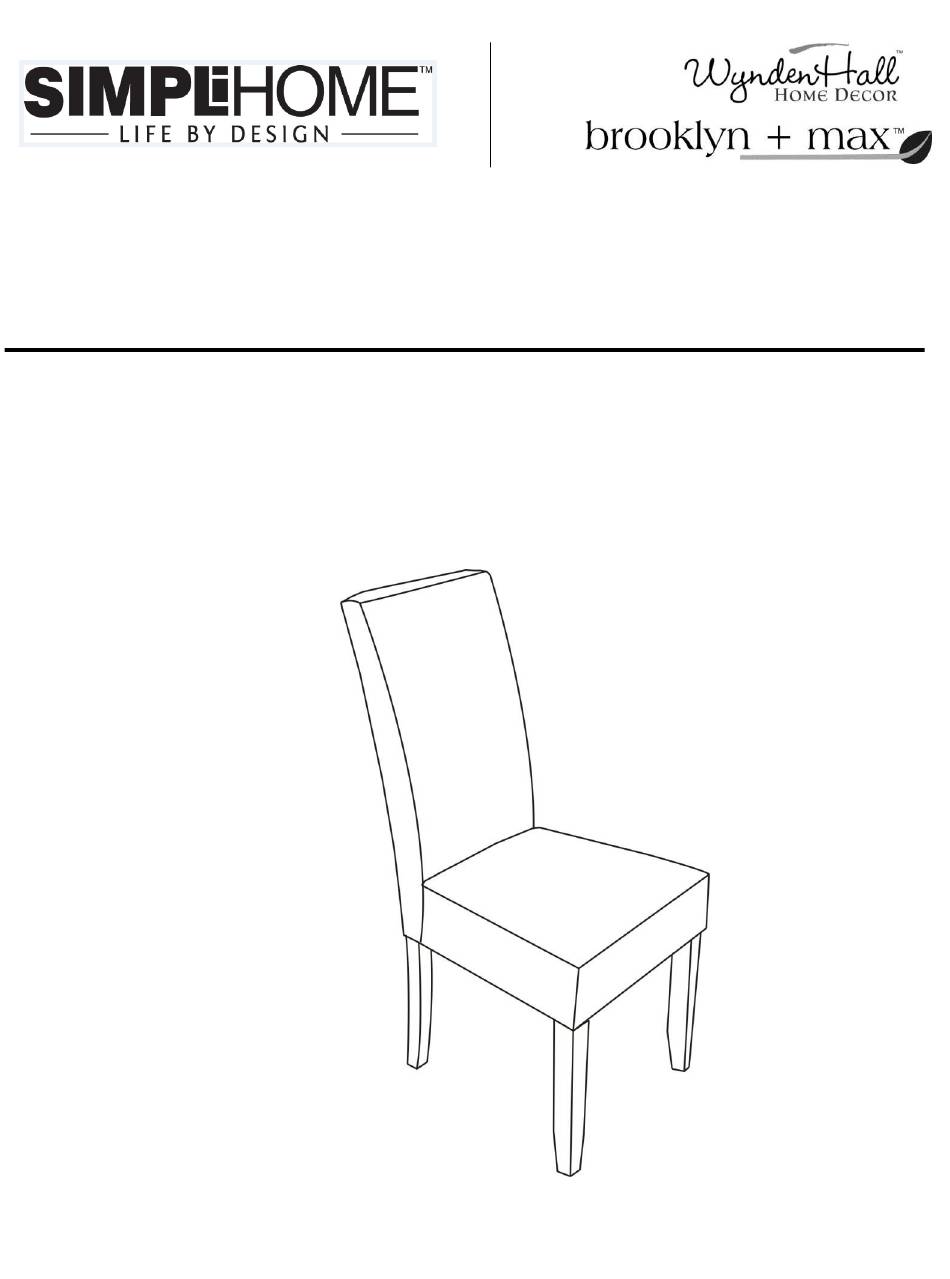

  • Page 1 ACADIAN / NORMANDY / BRUNSWICK 2 PACK PARSON CHAIR MODEL # WS5113-4-BL...
  • Page 2 Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 4 pm EST or go to www.simpli-home.com/parts request...

  • Page 3: Safety Information

    IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.

  • Page 4: Pre-Assembly Information

    PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION CHAIR BACK SEAT FRONT LEG QTY 1 QTY 1 QTY 2 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. 262 (9 am to 4 pm EST)

  • Page 5: Hardware Description

    PRE-ASSEMBLY INFORMATION HARDWARE DESCRIPTION ALLEN KEY SCREW ALLEN KEY SCREW ALLEN KEY SCREW M8 x 45MM M8 x 60MM M8 x 80MM QTY 1 QTY 4 QTY 4 ALLEN KEY DOWEL FLAT WASHER Ø8 x 30mm Ø22mm QTY 1 QTY 2 QTY 9 LOCK WASHER Ø13mm...
  • Page 6 ASSEMBLY STEP 1 Insert Dowels (5) into pre-drilled holes on Seat (B). Attach Seat (B) to Chair Back (A) using Allen Key Screw (1) and one Washer each of (6) and (7). Use Allen Key (4) to tighten. Do not over-tighten...
  • Page 7 ASSEMBLY STEP 2 Secure Seat (B) to Chair Back (A) using Allen Keys Screws (3) and four Washers each of (6) and (7). Use Allen Key (4) to tighten. Do not over-tighten.
  • Page 8 ASSEMBLY STEP 3 Attach Front Leg (C) to Seat (B) using Allen Keys Screws (2) and four Washers each of (6) and (7). Use Allen Key (4) to tighten. Do not over-tighten.
  • Page 9 ASSEMBLY STEP 4 Place Chair on a flat level surface to ensure it is level. If it is uneven, adjust either the Seat (B) or Front Legs (C). Ensure the Chair is level and then fully tighten all bolts.
  • Page 10 ASSEMBLY STEP 5 Attach fabric with Velcro to bottom of Seat.
  • Page 11 ASSEMBLY STEP 6 Turn Chair right side up.

  • Page 12: Warranty

    WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.

This manual is also suitable for:

Normandy ws5113-4-blBrunswick ws5113-4-bl
