Simpli Home WyndenHall Brooklyn+max ARTISAN Assembly Instructions Manual

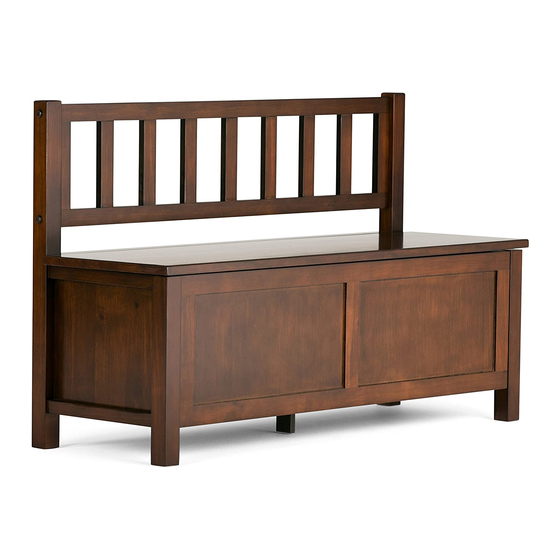

Entryway storage bench
Hide thumbs Also See for WyndenHall Brooklyn+max ARTISAN:

Advertisement

Quick Links

Download this manual
SIMP
I
HOME
I
L I F E B Y D E S I G N
ARTISAN / HOLDEN / STRATFORD
ENTRYWAY STORAGE BENCH
MODEL # AXCBEN002
1/14

Advertisement

loading
Need help?

Need help?

Do you have a question about the WyndenHall Brooklyn+max ARTISAN and is the answer not in the manual?

Questions and answers

Related Manuals for Simpli Home WyndenHall Brooklyn+max ARTISAN

Summary of Contents for Simpli Home WyndenHall Brooklyn+max ARTISAN

  • Page 1 SIMP HOME L I F E B Y D E S I G N ARTISAN / HOLDEN / STRATFORD ENTRYWAY STORAGE BENCH MODEL # AXCBEN002 1/14...
  • Page 2 SIMP HOME L I F E B Y D E S I G N Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...

  • Page 3: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.

  • Page 4: Care And Maintenance

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.

  • Page 5: Pre-Assembly Information

    MODEL # AXCBEN002 PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION LEFT SIDE RIGHT SIDE SEAT QTY 1 QTY 1 QTY 1 BACK PANEL BACKREST FRONT PANEL QTY 1 QTY 1 QTY 1 DIVIDER BOTTOM PANEL BOTTOM SUPPORT LEG QTY 1 QTY 1 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.
  • Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXCBEN002 HARDWARE DESCRIPTION ALLEN KEY BOLT CAM LOCK PIN WOOD DOWEL M6 X 50 mm CAM LOCK Ø8 X 30 mm QTY 4 QTY 4 SETS QTY 8 PHILLIPS SCREW PHILLIPS SCREW M4 X 15 mm M4 X 35 mm ALLEN KEY QTY 6...
  • Page 7 COMPONENTS – KEY DIAGRAM MODEL # AXCBEN002 7/14...
  • Page 8 ASSEMBLY MODEL # AXCBEN002 STEP 1 Small pre-drilled holes Pre-drilled holed of Hinges 1. Screw 2 threaded Cam Lock Pins 2 into pre-drilled holes on the back of Back Panel D . 2. Screw only to where the threading ends and ensure they are straight. Do not use excessive force to over-screw cam lock pin.
  • Page 9 ASSEMBLY MODEL # AXCBEN002 STEP 3 NOTE: The screwdriver is not included in the hardware pack. 1. Screw 2 threaded Cam Lock Pins 2 into pre-drilled holes on the back of Front Panel C . 2. Screw only to where the threading ends and ensure they are straight. Do not use excessive force to over-screw cam lock pin.
  • Page 10 ASSEMBLY MODEL # AXCBEN002 STEP 4 1. Align Left Side BL with assembled unit ( Front Panel C and Back Panel D ). 2. Insert 4 Wood dowels 3 into panel C and D . 3. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed.
  • Page 11 ASSEMBLY MODEL # AXCBEN002 STEP 5 1. Align Right Side BR with assembled unit ( Front Panel C and Back Panel D ). 2. Insert 4 Wood dowels 3 into panel C and D . 3. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed.
  • Page 12 ASSEMBLY MODEL # AXCBEN002 STEP 6 NOTE: The screwdriver is not included in the hardware pack. 1. Use 2 Phillips Screws 6 to attach Bottom Support Leg H into bottom of Bottom Panel G using centre support guide holes. 2. Use Phillips screwdriver to tighten screws. Do not over-tighten. STEP 7 1.
  • Page 13 ASSEMBLY MODEL # AXCBEN002 STEP 8 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Lid Support 8 with assembled unit ( Seat A and Divider F ). 2. Attach by inserting 4 Phillips Screws Round Head 7 into pre-drilled holes. 3.

  • Page 14: Warranty

    L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase.

This manual is also suitable for:

Wyndenhall brooklyn+max holdenWyndenhall brooklyn+max stratfordWyndenhall brooklyn+max axcben002
