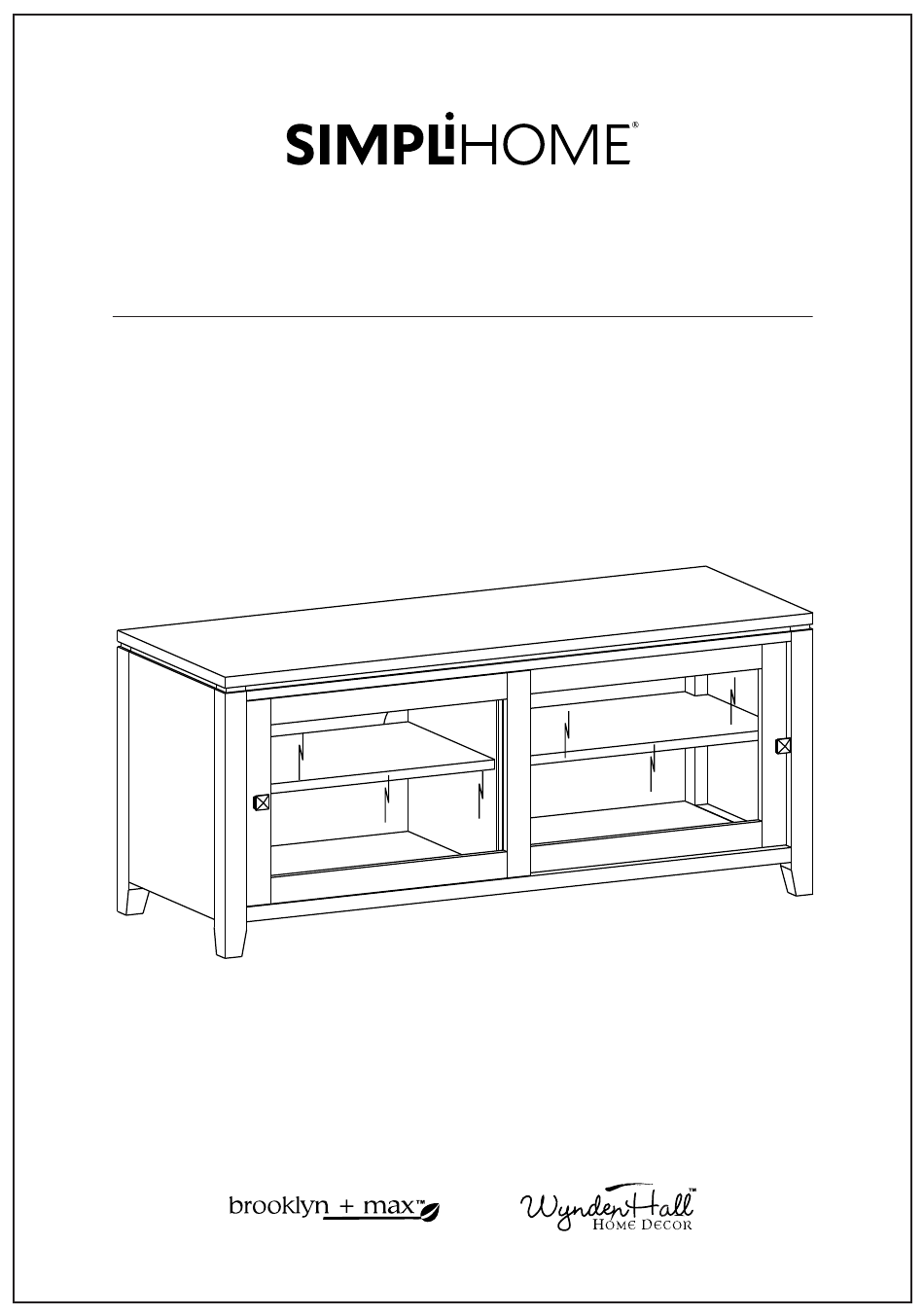

  • Page 1 Cosmopolitan / City / Essex TV Media Stand Model # AXCCOS-TV-BL...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Ac vate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your en re purchase! simpli-home.com/share-images...
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order informa on and issue. Submit form.
  • Page 5: Safety Information

    IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.
  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 150 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death. The recommended maximum width of the television intended for use is 55 inch (139.7 cm).
  • Page 8 Pre-Assembly Information Model # AXCCOS-TV-BL Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF LEFT SHELF CENTRE SUPPORT QTY 1 QTY 1 QTY 1 LEFT DOOR RIGHT DOOR RIGHT SHELF QTY 1 QTY 1 QTY 1 BACK PANEL QTY 1...
  • Page 9 Pre-Assembly Information Model # AXCCOS-TV-BL Hardware Description ALLEN KEY SCREW CAM LOCK PIN WOOD DOWEL M6 X 30 mm CAM LOCK Ø8 X 30 mm QTY 12 QTY 6 SETS QTY 8 PHILLIPS SCREW ROUND HEAD ALLEN KEY SHELF SUPPORT M4 X 15 mm QTY 1 QTY 12...
  • Page 10 Components - Key Diagram Model # AXCCOS-TV-BL...
  • Page 11 Assembly Model # AXCCOS-TV-BL Step 1 1. Insert 2 Wood Dowels 3 into guide holes on Bottom Shelf C . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of Dowels should be exposed. 3.
  • Page 12 Assembly Model # AXCCOS-TV-BL Step 2 1. Insert 2 Wood Dowels 3 into guide holes on other side of Bottom Shelf C . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of Dowels should be exposed. 3.
  • Page 13 Assembly Model # AXCCOS-TV-BL Step 3 1. Insert 2 Wood Dowels 3 into top corners of each Side BL , BR. 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of Dowels should be exposed. 3.
  • Page 14 Assembly Model # AXCCOS-TV-BL Step 4 Second Door First Door ( Left Door FL ) ( Right Door FR ) 1. Slide the wheels on bottom of each door to the slots on Bottom Shelf C . 2. Pull down the pins on top of each door then place the door to be parallel with the TV side post.
  • Page 15 Assembly Model # AXCCOS-TV-BL Step 5 1. Use a Phillips screwdriver to attach Handles 7 to Doors FL , FR . Step 6 1. Use 4 Shelf Supports 5 for each Shelf EL , ER in desired location. 2. 2 Shelf Supports 5 may be used on back top of each Shelf EL , ER as a tipping restraint.
  • Page 16 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 8 NOTE: The screwdriver is not included in the hardware pack.
  • Page 17 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
