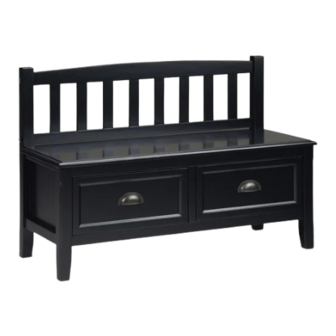

- Page 1 SIMP HOME L I F E B Y D E S I G N BURLINGTON / PORTLAND / BERKSHIRE ENTRYWAY STORAGE BENCH MODEL # AXCBURBE N-BL 1/13...
- Page 2 SIMP HOME L I F E B Y D E S I G N Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Care And Maintenance
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCBURBEN-BL PARTS DESCRIPTION SEAT LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 DIVIDER BOTTOM SHELF BACKREST QTY 1 QTY 1 QTY 1 LEFT DRAWER SIDE BACK PANEL DRAWER FRONT QTY 2 QTY 1 QTY 2 DRAWER BACK RIGHT DRAWER SIDE DRAWER BOTTOM... - Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXCBURBEN-BL HARDWARE DESCRIPTION ALLEN KEY BOLTS ALLEN KEY SCREW CAM LOCK PIN M6 x 50 mm M6 x 30 mm CAM LOCK QTY 4 QTY 20 QTY 14 SETS HANDLE WOOD DOWEL M4 x 12mm Ø8 x 30 mm ALLEN KEY QTY 2 SETS QTY 4...
- Page 7 COMPONENTS – KEY DIAGRAM MODEL # AXCBURBEN-BL 7/13...
- Page 8 ASSEMBLY MODEL # AXCBURBEN-BL STEP 1 1. Attach 4 Cam Lock Pins 3 to pre-drilled holes at back of Drawer Front G . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides HL , HR . 3. Insert 2 Cam Locks 3 into guide holes on each Drawer Side HL , HR . 4.
- Page 9 ASSEMBLY MODEL # AXCBURBEN-BL STEP 3 1. Align Drawer Back I with Drawer Bottom J and press firmly into slot . 2. Attach back using 2 Allen Key Screws 2 through guide holes on each side. 3. Use Allen key 5 to tighten. Do not over-tighten. STEP 4 NOTE: The screwdriver is not included in the hardware pack.
- Page 10 ASSEMBLY MODEL # AXCBURBEN-BL STEP 4 1. Attach Divider D to Bottom Shelf C using 3 Allen Key Screws 2 through guide holes. 2. Use Allen Key 5 to tighten screws. Do not over-tighten. STEP 5 1. Attach Divider D to Seat A using 3 Allen Key Screws 2 through guide holes. 2.
- Page 11 ASSEMBLY MODEL # AXCBURBEN-BL STEP 6 1. Insert 4 Dowels 6 into of each Bottom Shelf C . 2. Use rubber mallet to tap Dowels 6 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Attach 6 Cam Lock Pins 3 to Seat A . 4.
- Page 12 ASSEMBLY MODEL # AXCBURBEN-BL STEP 7 1. Attach Back Panel F to back frame using 15 Phillips screw round head 7 . 2. Use Phillips screwdriver to snugly tighten screws. STEP 8 1. Insert 4 Wood bolt caps 8 into exposed bolt holes on side of bench. 2.
-
Page 13: Warranty
L I F E B Y D E S I G N WARRANTY WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase.
