Clear-Com Encore V-Box Quick Start Manual

Quick
Start
Guide

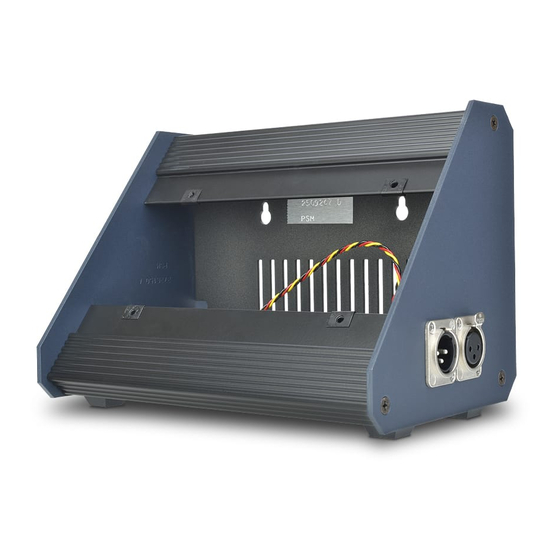

The V-Box Enclosure is a portable, sturdy four-gang enclosure for Clear-Com's KB Speaker Stations. It can be
desktop-mounted, shelf-mounted or wall-mounted, and either oriented horizontally or angled upwards or
downward. The V-Box Enclosure is available in different versions to accommodate different wiring requirements:
• V-Box – Includes a pass-through male and female 3-pin XLR for single channel use.
• V-Box-X6 – Includes a pass-through male and female 6-pin XLR for dual channel intercom use.
• V-Box-RJ45 – Includes an etherCON RJ45 and a bayonet DC power connector to accommodate the
optional EB7-4W four-wire adaptor.

Installing the KB Speaker Station inside the V-Box Enclosure

KB Speaker Stations can be installed in the angled (as shipped) or vertical face of the V-Box. A blank four-gang
panel with holes for installed cables, mounting screws and ventilation is installed on the empty face of the V-Box.
Below are some examples of installation.

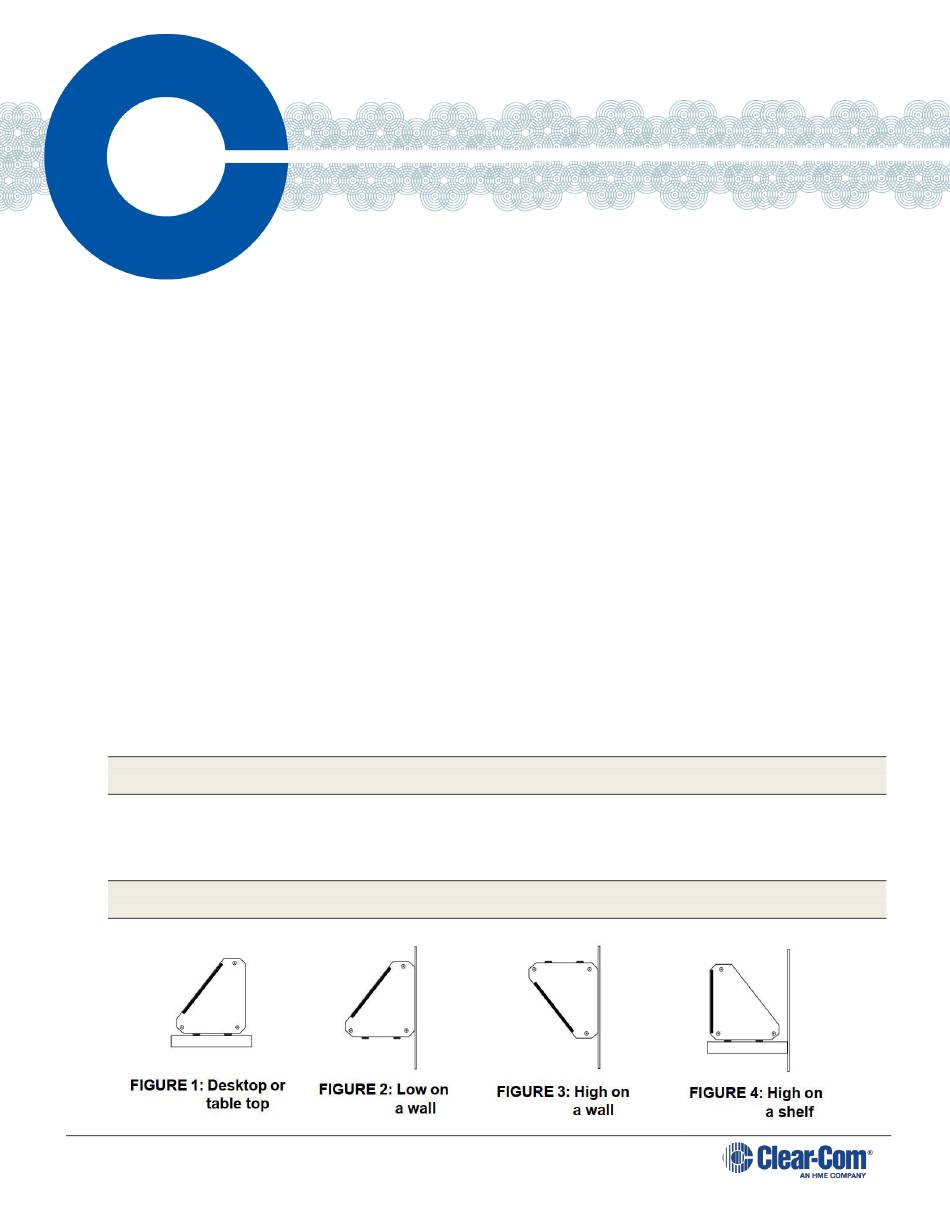

Desktop or table top
The Speaker Station panel is installed in the angled face (Figure 1).
Low or at working height in a wall
The Speaker Station panel is installed in the angled face, and the box is mounted to the wall using the
keyhole slots on the four-gang filler panel (Figure 2).
High on a wall
The Speaker Station panel is installed in the angled face and turned upside down. The blank four-gang panel
is inverted and mounted on the wall using the keyhole slots on the blank four-gang panel (Figure 3).
Note: When installing on a wall, ensure that the screws are secured in a material strong enough to support
the weight. If required, use screw anchors.
High on a shelf
The Speaker Station panel is installed in the vertical face, and the blank four-gang panel is installed in the
angled face (Figure 4).
Note: To properly maintain stability of the V-Box use a GM-9 microphone, not a GM-18, when installing a
V-Box high on a shelf.
399G313 Revision A
28 August, 2019
Encore ™ Partyline System
V-Box Enclosure
