EXIRA THERMOSTATIC SHOWER SET INSTALLATION

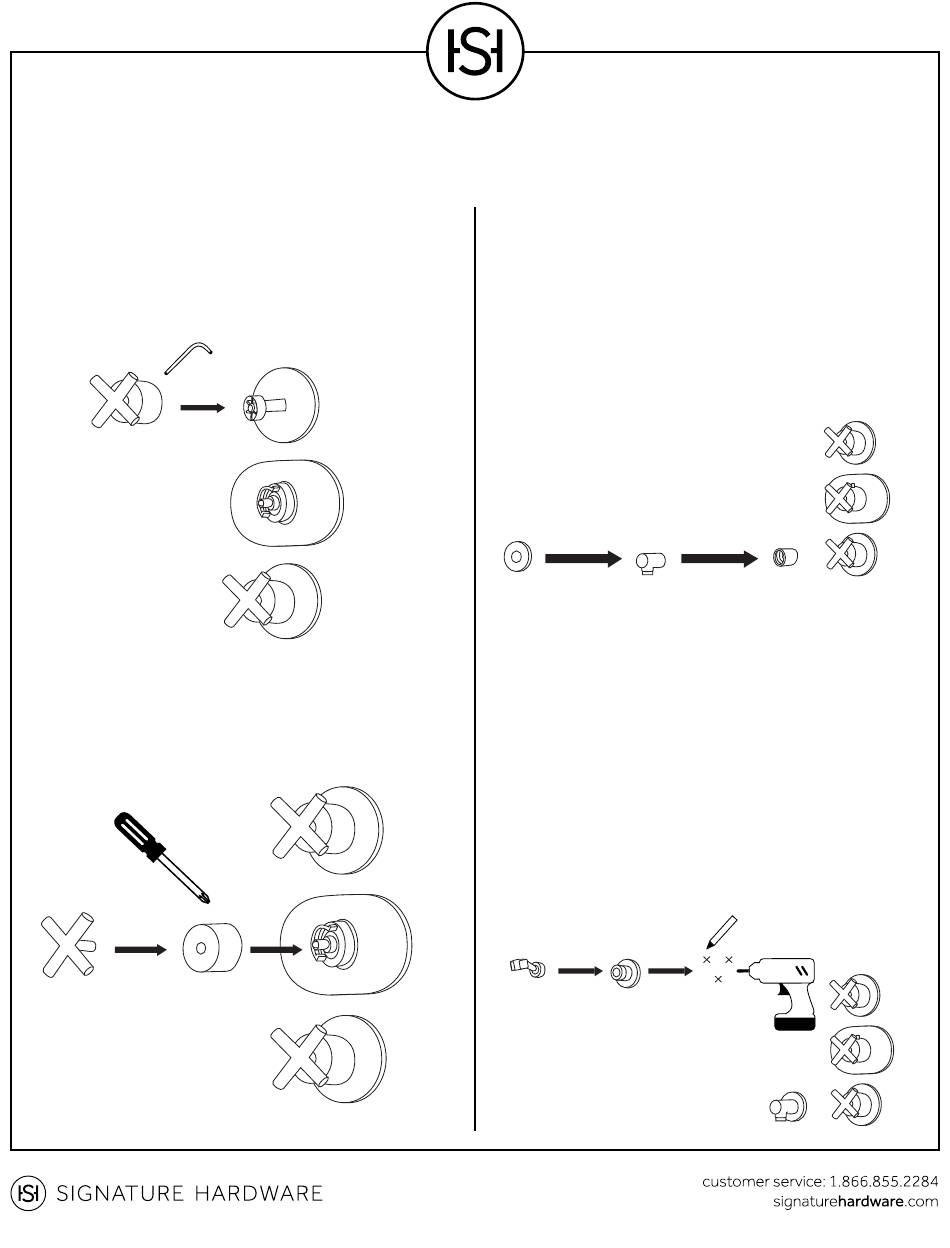

3. Slide the upper and lower knobs onto their spindles.
Tighten the knobs using the provided hex wrench to
secure.
4. To install the temperature control knob, loosen the
set screw and remove the handle from the knob base.
Attach the knob to the center stem using the provided
screw. Tighten with a Phillip's screwdriver, then
reattach the handle.
5. To install the hand shower's water supply elbow,
thread it onto its prepared female fitting. Apply thread
sealant or plumber's tape to the threads before tight-
ening. Use the decorative escutcheon to conceal the
rough-in.
6. Determine a location to mount the hand shower's
cradle. Unthread the decorative escutcheon to expose
the mounting holes. Mark the location of the mounting
holes on the wall. Drill pilot holes at the marked
locations, and insert the provided anchors into the wall.
Use the provided screws to secure the cradle to the
wall. Thread the decorative escutcheon back onto the
base to conceal the mounting hardware.
Important: If drilling through tile, you must use a
masonry drill bit and drill carefully.
