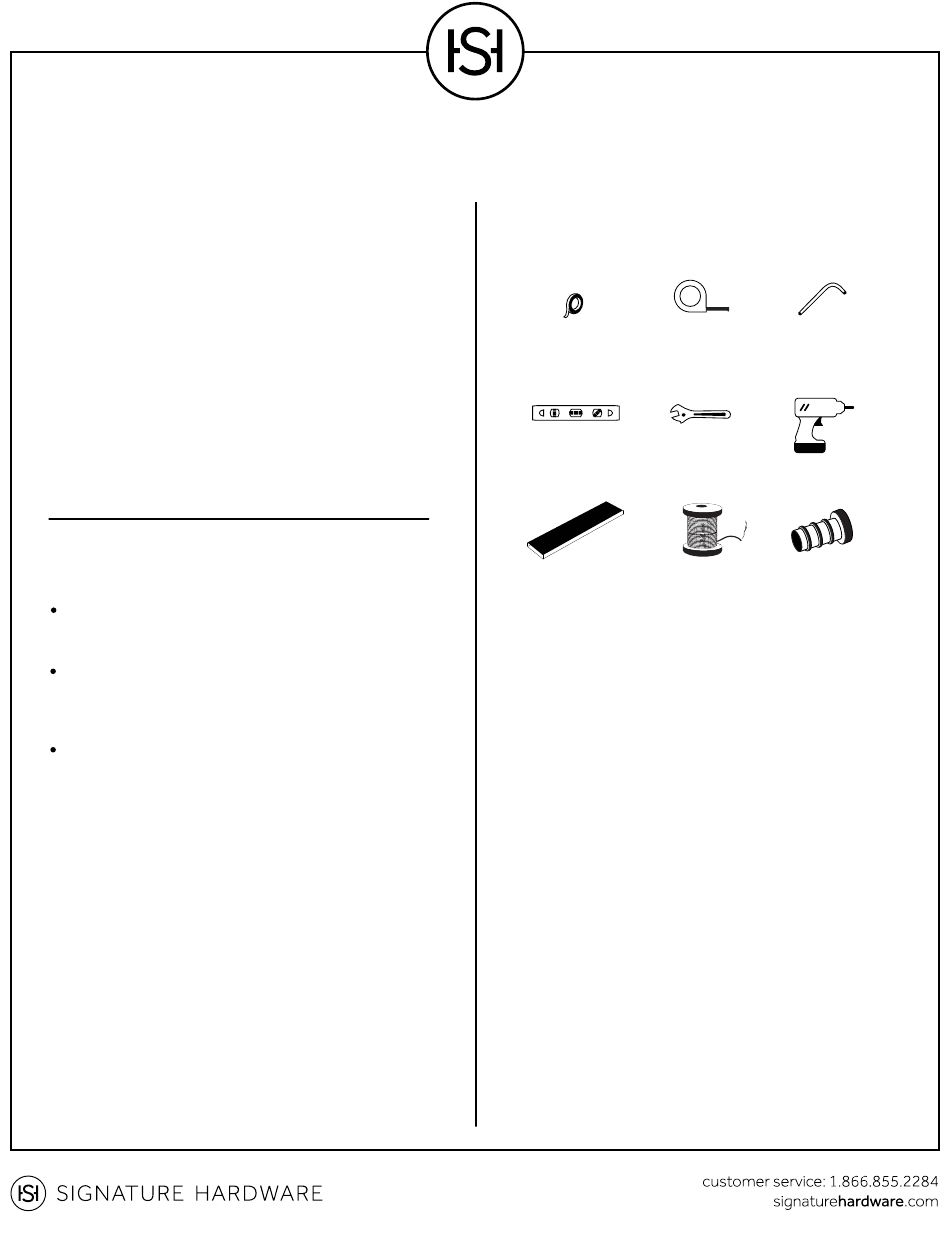

LATTIMORE SHOWER SET INSTALLATION
BEFORE YOU BEGIN
We recommend consulting a professional if you are
unfamiliar with installing plumbing fixtures. Signature
Hardware accepts no liability for any damage to the
plumbing, floor, walls, tub, or for personal injury during
installation.
Observe all local plumbing and building codes.
Unpack and inspect the items for shipping damage. If
any damage is found, contact our Customer Relations
team at 1-866-855-2284.
GETTING STARTED
Ensure that you have gathered all the required
materials that are needed for the installation.
For the following installation instructions, it is
assumed that the wall has been opened and that the
existing shower set has been removed.
Before you begin, the main water supply to your home
should be shut off.
TOOLS AND MATERIALS:
Plumbers
Tape Measure
Tape
Adjustable
Level
Wrench
Soldering Kit
Wood Blocking
(for copper pipe)
Lattimore Shower Set Installation Instructions
SKU(s): 931419
Hex Wrench
Drill
½" Test Plug
1
