EXIRA THERMOSTATIC SHOWER SET INSTALLATION
BEFORE YOU BEGIN
We recommend consulting a professional if you are
unfamiliar with installing plumbing fixtures. Signature
Hardware accepts no liability for any damage to the
plumbing, floor, walls, tub, or for personal injury during
installation.
Observe all local plumbing and building codes.
Unpack and inspect the item for shipping damage. If any
damage is found, contact our Customer Relations team
at 1-866-855-2284.
GETTING STARTED
Ensure that you have gathered all the required
materials that are needed for the installation.
For the following installation instructions, it is
assumed that the wall has been opened and that the
existing shower set has been removed.
Before you begin, the main water supply to your home
should be shut off.

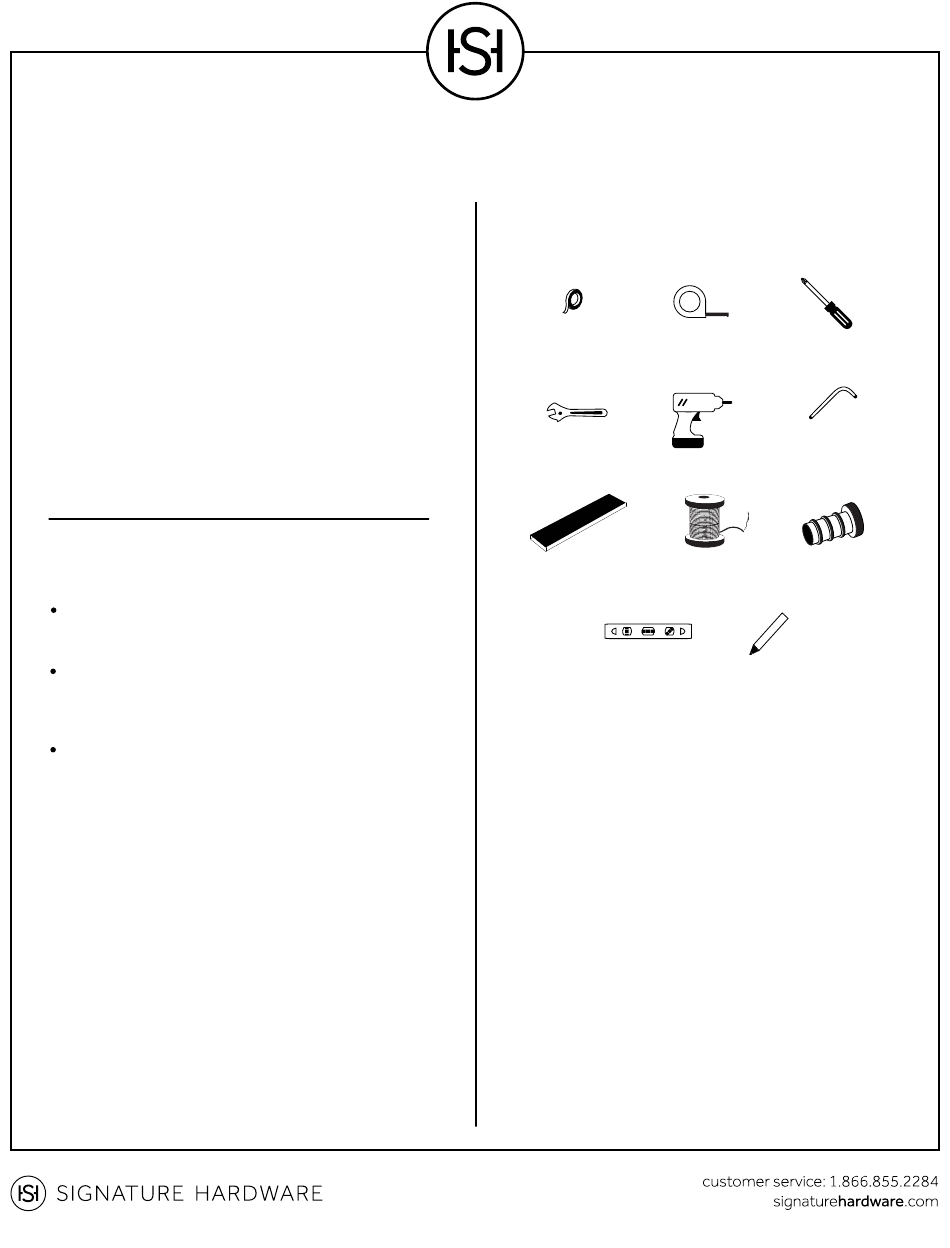

TOOLS AND MATERIALS:
Plumbers
Tape Measure
Tape
Adjustable
Wrench
Drill
Soldering Kit
Wood Blocking
(for copper pipe)
Level
Exira Thermostatic Shower Installation Instructions
SKU(s): 925945
Phillips
Screwdriver
Hex Wrench
½" Test Plug
Pencil or
Marker
1
