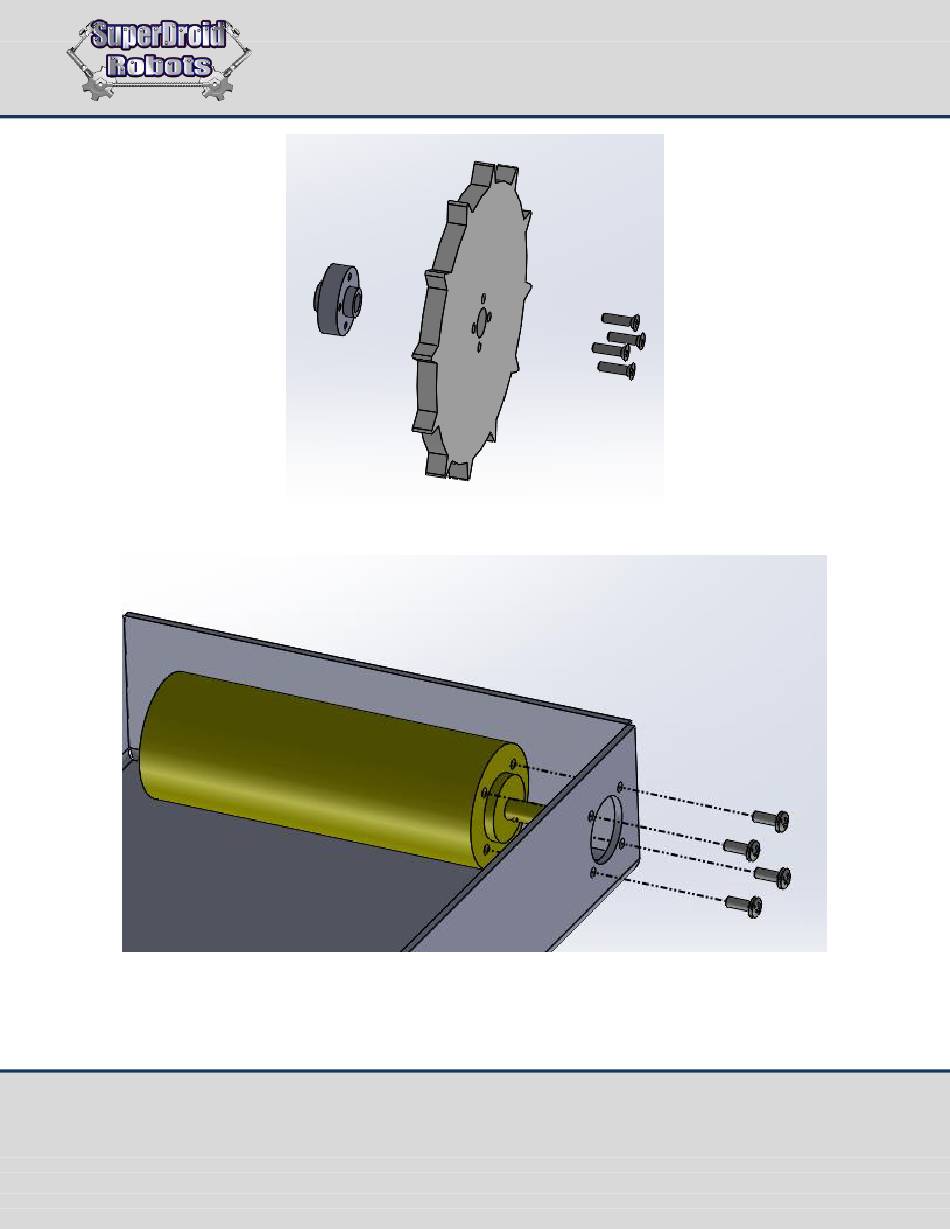

Bolt the 6mm drive hub to the sprocket wheel with the 4-40 x 0.5" machine screws.
6.
Now take the motor and bolt it onto the chassis using the M3 screws.
