3.

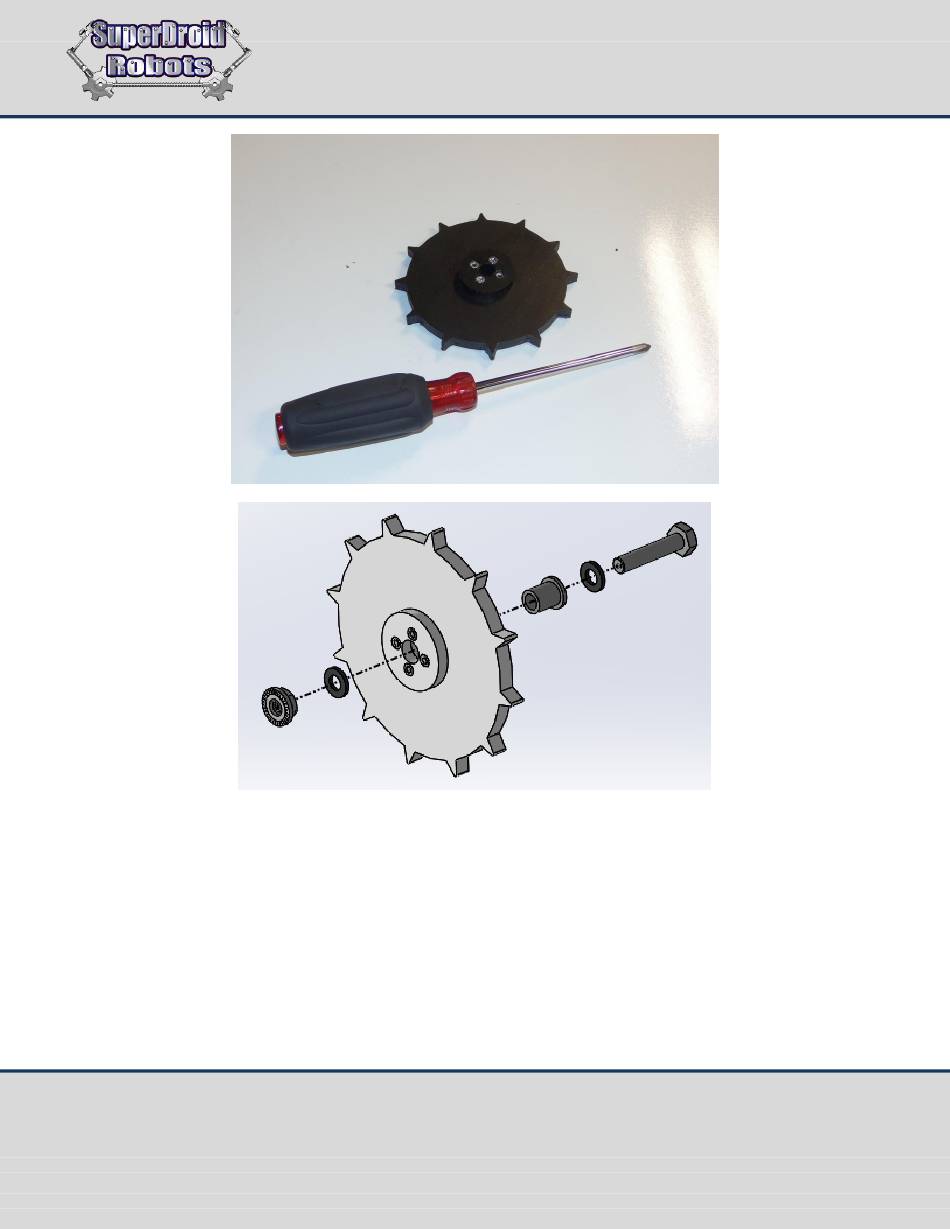

Finish the idler wheel assembly by pressing in the bronze sleeve bearing and sliding the ¼-20 hex head bolt
though, using plastic washers on either side. Tighten together with the flange nut oriented so that the
flange faces away from the wheel. Adjust the tightness of the nut until the wheel spins freely around the
bolt with minimal wobble.
