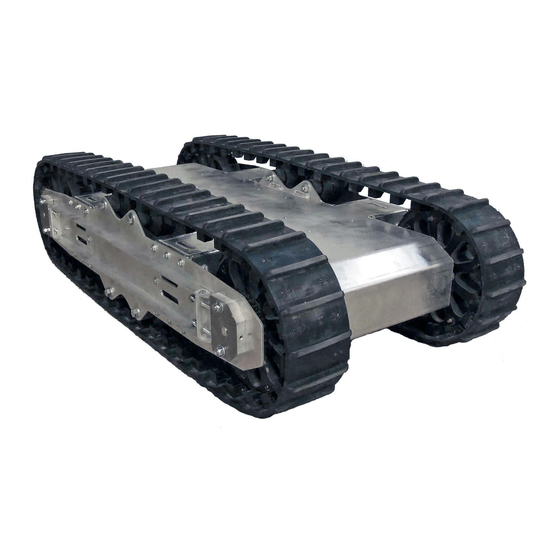

- Page 1 ASSEMBLY HD2 TREADED ATR TANK ROBOTIC PLATFORM SuperDroid Robots, Inc 919.557.9162 SDR@SDRobots.com 224 Technology Park Lane, Fuquay Varina, NC 27526...
- Page 2 TABLE OF CONTENTS TABLE OF CONTENTS LEGAL INFORMATION SAFETY GUIDE Safety Precautions CHAPTER 1 - ASSEMBLY Motor Electrical Wiring HD2 Kit Wheel Assembly Drive Wheel Shaft Block Mounting Motor Mounting...
- Page 3 2. SuperDroid Robots, Inc. makes no representations as to the fitness of its products for specific uses. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS HEREBY EXCLUDED.
- Page 4 SAFETY GUIDE Thank you for purchasing this product! WARNING - Before using, read this manual to ensure correct usage and operation. After reading, store in a safe place for future reference. Incorrect handling of this robot could result in personal injury or physical damage. The manufacturer assumes no responsibility for any damage caused by mishandling that is beyond normal usage defined in these manuals of this product.
- Page 5 Wire the motor before installing it as described above The motors need a motor spacer plate between them and the slots cut out in the ATR. Refer to Fig 2A. The HD2 uses a rectangular one that will be inserted so the long direction goes from front to back of the robot (used to cover the slots).
- Page 6 FIGURE 3B Roller Wheel Mounting This section applies to mounting the roller wheels on the HD2 tread assembly. 1. Your kit should come with eight (8) roller wheel assemblies, four (4) on each side. They should come assembled and ready to attach onto the chassis.
- Page 7 SECTION 1 - CONTINUED Tread Wheel Mounting This section applies to mounting the tread wheels on the HD2 tread assembly. NOTE • Do not tighten the drive wheel bearings until after the tread is placed on the wheels. • Do not tighten the idlers. Tightening may prevent the idler from spinning.
- Page 8 SECTION 2 - ELECTRICAL ASSEMBLY Wiring the Power System NOTE • Keep all electrical leads as short as possible to limit electrical noise. • Controller battery and Motor battery should be different sources to minimize noise. • Keep signal wires away from power lines. 1.
