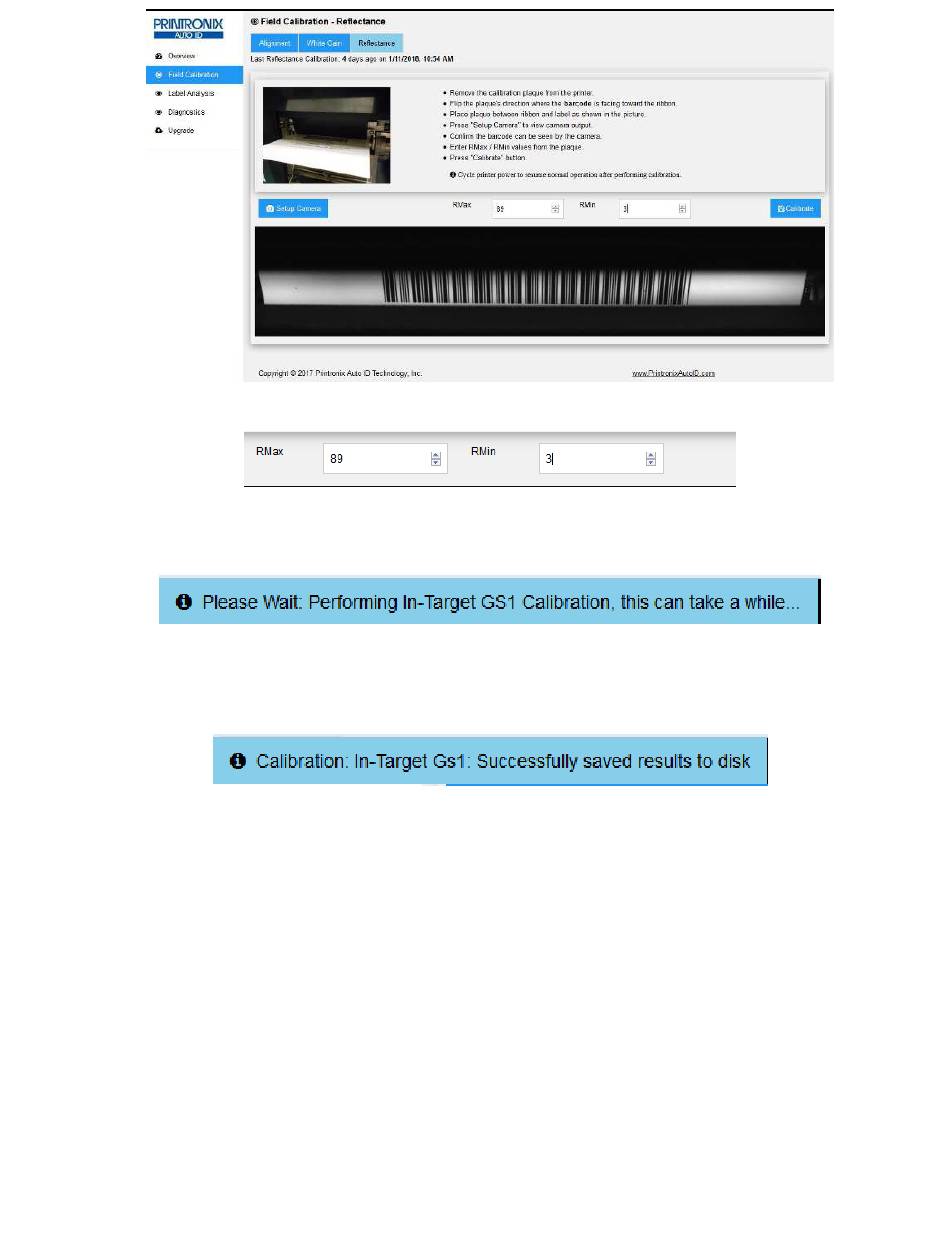

4. Enter the Rmax and Rmin values located on the calibration card as shown below
Note: Values above are Example only. Your card will have it's own value printed on it.
5. Press Calibrate button. The following message will be displayed.
Figure 45: Barcode Calibration in progress message
6. When the barcode calibration has finished, the following message will be displayed.
Figure 46: Barcode Calibration SUCCESS message
7. Power printer OFF / ON before performing the Functional Testing.
36
