3. Loosen the 3 small Locking Cap Screws by turning each one 1/2 turn CCW (Counterclockwise) using a 2.5mm
hex key.
NOTE: The Large Cap Screw torque value is factory set. DO NOT TIGHTEN OR LOOSEN THIS SCREW. The screw
captures a compression spring that provides tension between the ODV2D and the mounting bracket, preventing
the ODV2D from moving freely when the small locking screws are loosened.
4. Then while holding the square in place (See Figure 16), adjust Setscrew 'A' CW using a 2mm hex key to move
the ODV2 forward or CCW to move it back until each edge of the square is flush against the ODV and the
mounting bracket.
NOTE: Do not tighten any of the locking screws at this time. You will be instructed to do so in a later step.

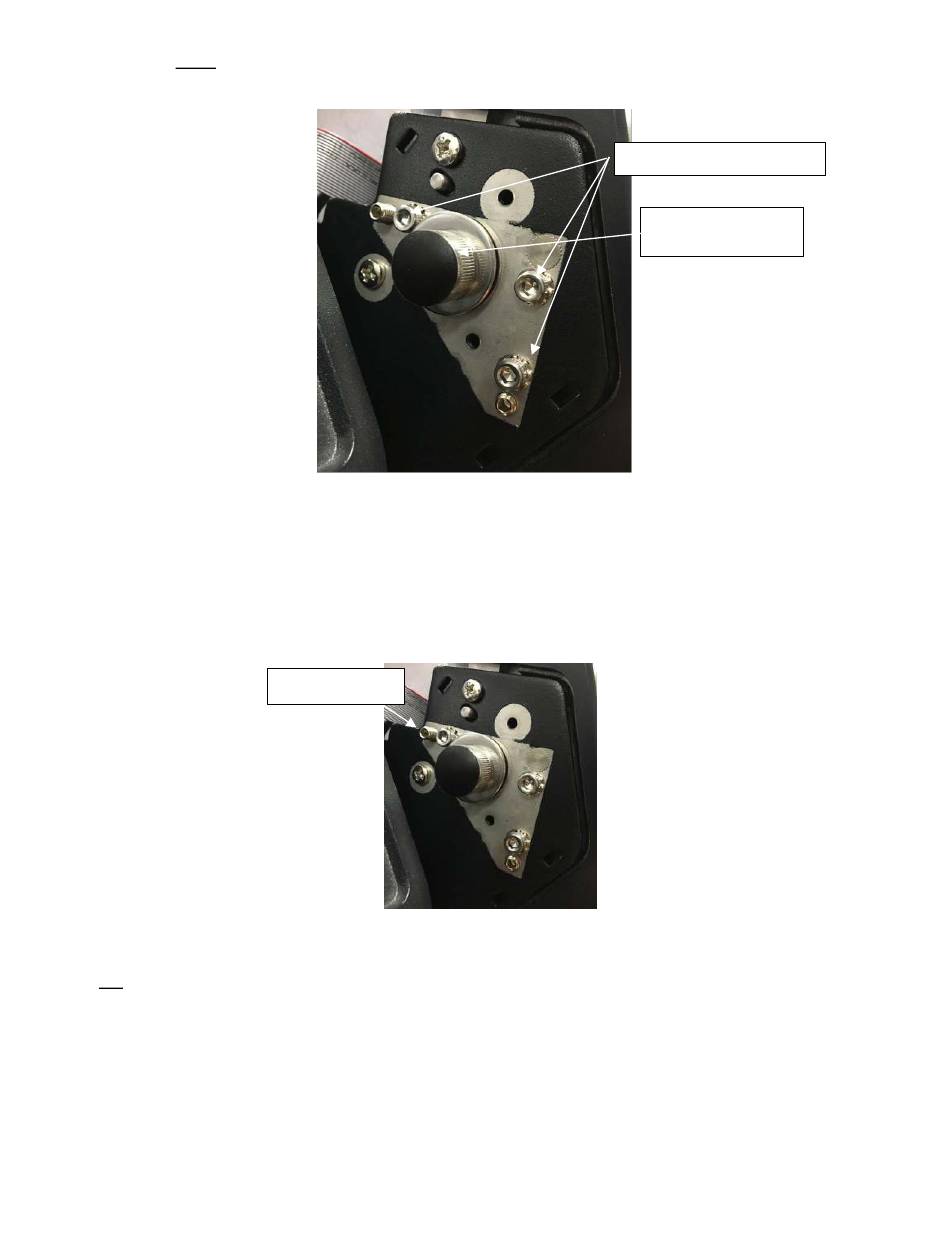

Figure 17: ODV2D-V2 Locking Screws
Setscrew 'A''
Figure 18: ODV2D-V2 Adjustment Setscrew A
Small Locking Cap Screws
Large Cap Screw
DO NOT TOUCH
