GYS SCM54E Manual

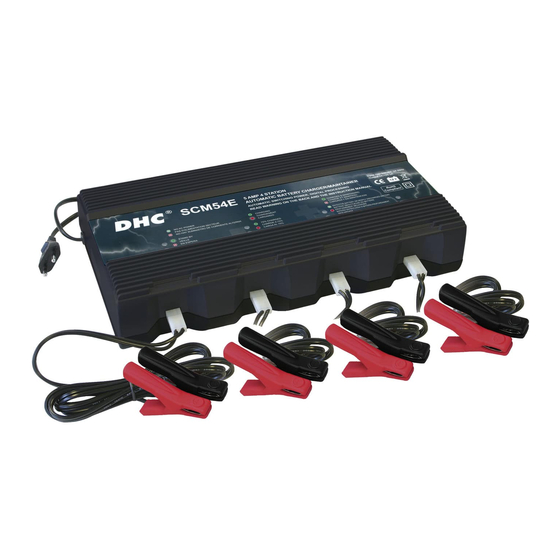

Switching power, digital processing battery bus charger/maintainer
Hide thumbs

Advertisement

Quick Links

Download this manual
SCM54E
SWITCHING POWER, DIGITAL PROCESSING
BATTERY BUS CHARGER/MAINTAINER
=================================================
Specification:
Charges------------------------ 12V SLI, AGM, Gel Batteries
Input-------------------------------------220~240VAC 2A 50HZ
Charging Output Mode--------------------------------5 AMPS
Maintenance Output Mode---------------------Pulse Charge
Leads-------------------------------------------------------183 CM
Size----------------------------------------35.0 X 19.0 X 7.5 CM
Weight------------------------------------------------------2.5KGS
- GB.1-V1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the SCM54E and is the answer not in the manual?

Questions and answers

Related Manuals for GYS SCM54E

Summary of Contents for GYS SCM54E

  • Page 1 SCM54E SWITCHING POWER, DIGITAL PROCESSING BATTERY BUS CHARGER/MAINTAINER ================================================= Specification: Charges------------------------ 12V SLI, AGM, Gel Batteries Input-------------------------------------220~240VAC 2A 50HZ Charging Output Mode--------------------------------5 AMPS Maintenance Output Mode---------------------Pulse Charge Leads-------------------------------------------------------183 CM Size----------------------------------------35.0 X 19.0 X 7.5 CM Weight------------------------------------------------------2.5KGS - GB.1-V1 -...
  • Page 2 SCM54E delivers up to 5 Amps. Do not expose SCM54E to direct sunlight, rain or snow. Do not use SCM54E on batteries that are in use or that are installed. If necessary to remove batteries from the vehicle and take to a properly installed SCM54E location.

  • Page 3: Personal Safety Precautions

    Suggested operation range is in ambient temperature. Never use SCM54E in or on any boat or watercraft. You must remove the battery from the boat or watercraft and charge the battery at the properly installed location of SCM54E unit.

  • Page 4: Preparing To Charge

    and water. If acid enters eye, immediately flood eye with running cold water for at least ten minutes and get medical attention immediately. NEVER smoke or allow a spark or flame in vicinity of battery or engine. Be extra cautious to reduce risk of dropping a metal tool onto the battery.

  • Page 5: Setting Up & Operations

    Mount SCM54E away from any vehicle repair or service. Make sure never to start or run an engine near the batteries being charged. Be sure the total amperage used by SCM54E should not exceed the amperage capacity of the supply source. If you do not know how to determine this, have a qualified electrician determine the capacity for you.
  • Page 6 When SCM54E is being used, it will show LED lights as follows: Green and red LED light both off: NO AC Power There is no AC power applied. Green light flashing only: Standby for charging batteries Before using, please check following: a.
  • Page 7 SCM54E is safely maintaining the battery at a full charge when the green light is on. The battery is ready. Simply remove the battery clamps and set them on the working surface clear from the other batteries and battery clamps. You can now load test the battery if necessary.
  • Page 8 2. Why do we offer 5 Stage Charging? The voltage/current curve graph Equalization Maintain Fast & Analysis Desulphation Desulphation Top Off Flotation Charge Fast Charge Voltage Current Time - GB.8-V1 -...
  • Page 9 Stage: Desulfation: Focused on deeply discharged or lightly sulfated batteries, which show low voltage and are hard to activate. The SCM54E Charger will start the charge pulse to charge the battery until the voltage recovers & reaches expected rechargeable level. The purpose of this stage is to save an over-discharged or a lightly sulfated battery for recovery.
  • Page 10 5 Amp Time to 75% Charge (Ah) Other advantages of SCM54E Charge Energy Saving: The SCM54E Charger provides True Pure DC current Charging capacity which reduce power consumption in charging process & save up to 20% energy compared to conventional chargers. Time Saving: Switching mode technology charges battery at least 1.5 times...

  • Page 11: Terms And Conditions Of Warranty

    TERMS AND CONDITIONS OF WARRANTY Any battery charger defective in material or workmanship will be repaired or replaced according to published defective return test repair procedures. The existence of a defect shall be determined by the seller in accordance with published procedures. The published test procedures are available upon request.
