Genelec S360-424B Instruction Manual

S360-424B Top-bottom mounting bracket for GENELEC S360
Instruction manual

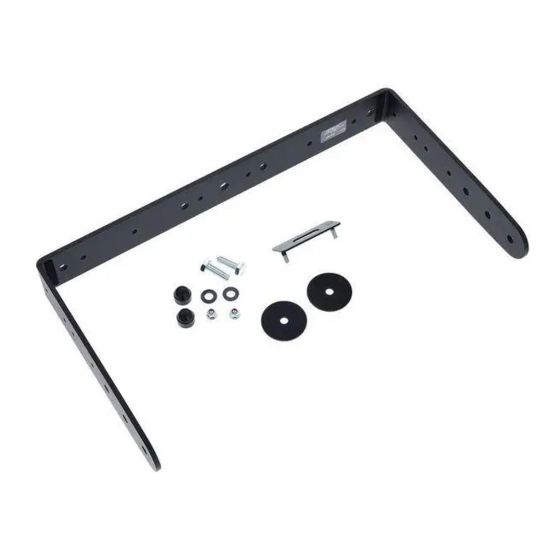

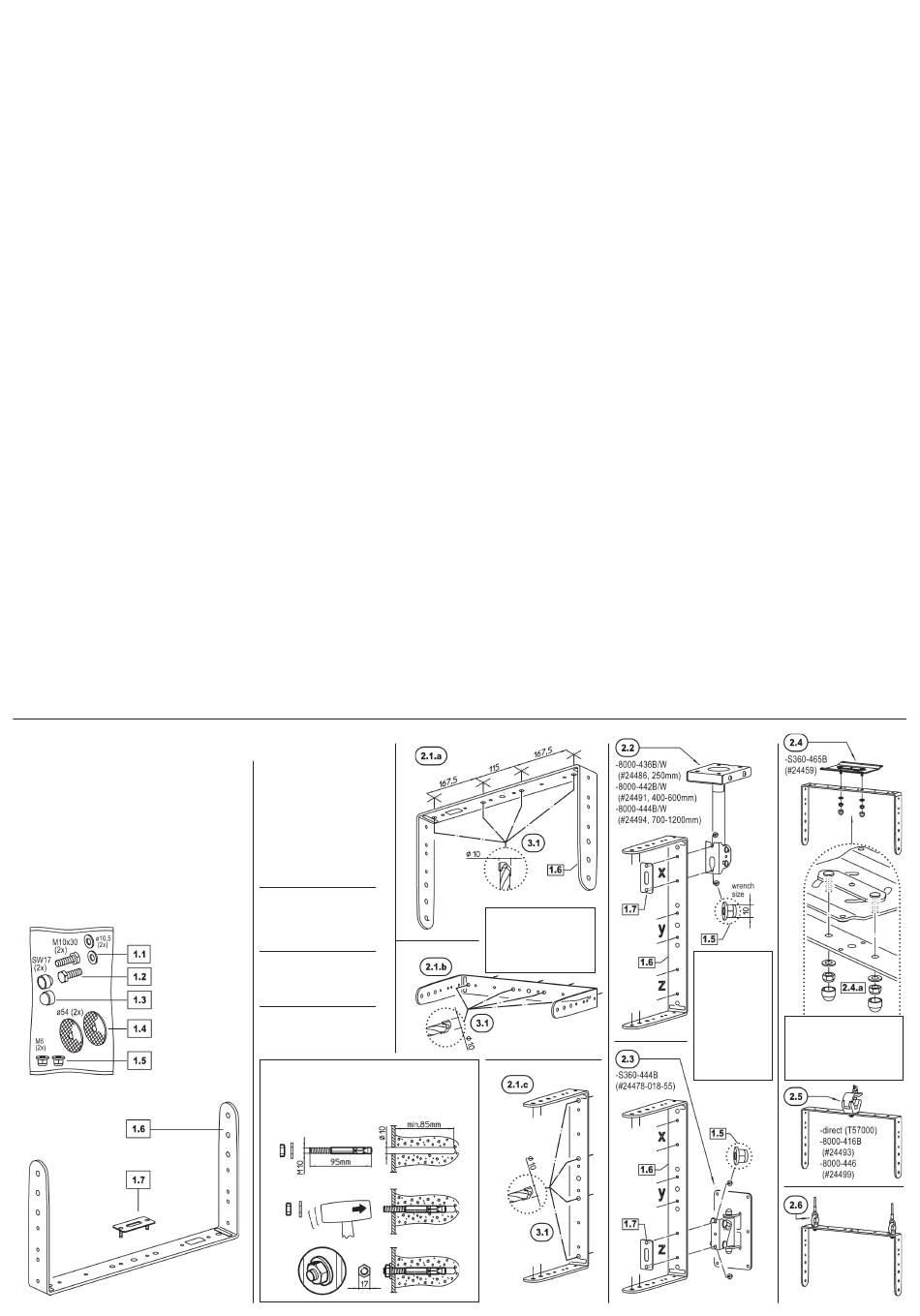

1. Scope of delivery

Please check if all the components
are there and o.k.
1.1 - washers ø 10,5/21 mm (2x)
1.2 - hexagon head screws M10 x 30 mm (2x)
1.3 - caps SW17 (2x)
1.4 - rubber discs ø 9,5/54 mm (2x)
1.5 - flange nuts M6 (2x)
1.5 - &
1.6 - U-bracket
1.7 - adaptor plate
2. Usage &
3. Mounting
2.1
Direct mounting
2.1.a - Ceiling mount
2.1.b - Wall mount -horizontal
2.1.c - Wall mount -vertical
&
Mounting (see fig.):
3.1 Preparations (drill holes)
3.1.a Installation sample
2.2 - Ceiling mount holders
2.3 - Wall Mount holder
&
Mounting (see fig.):
3.2 & 3.3 - Parts assembly
2.4 - Ceiling mount plate
&
Mounting (see fig.):
3.4 - Parts assembly
Further applications:
2.5 - Truss mount holder
2.6 - Eye bolt hang
3.1.a
Installation sample for concrete ceilings/walls:
Hammer in 4 bolt anchors M10 x 95 mm, install the
U-bracket, place the washers and tighten the nuts
3.1
Place the U-bracket (1.6),
mark the drill holes,
drill all 4 drill holes,
blowout the drill holes
3.2 / 3.3
Bolt the
U-bracket (1.6)
per adaptor (1.7)
to the fixing
bracket of the
holder. Use two 3.4
flange nuts (1.5). Bolt the U-bracket (1.6) to
the ceiling mount plate (2.4)
There are three
which also contains the
mounting options:
x - y- z screw set (2.4.a)
