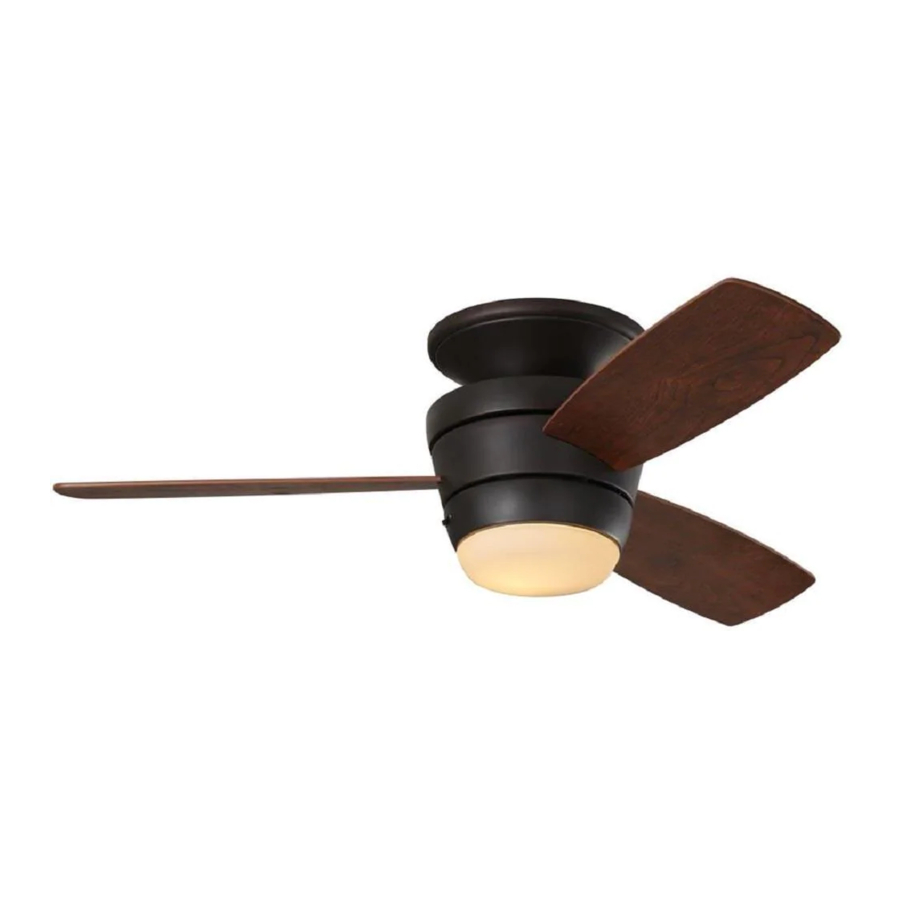

MAZON CEILING FAN
1
ITEM #0807421
0807422
MODEL #MZ44BNK3LR
MZ44ORB3LR
Español p. 18
ATTACH YOUR RECEIPT HERE
ADJUNTE SU RECIBO AQUÍ
4007498
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Harbor Breeze MAZON MZ44BNK3LR
Summary of Contents for Harbor Breeze MAZON MZ44BNK3LR
- Page 1 ITEM #0807421 0807422 MAZON CEILING FAN MODEL #MZ44BNK3LR MZ44ORB3LR Harbor Breeze® is a registered trademark of LF, LLC. All Rights Reserved. Español p. 18 ATTACH YOUR RECEIPT HERE ADJUNTE SU RECIBO AQUÍ ATTACH YOUR RECEIPT HERE 4007498 Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-643-0067, 8 a.m.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information .........................2 Package Contents .........................5 Hardware Contents .......................6 Preparation ..........................6 Initial Installation ........................6 Wiring ............................9 Final Installation ........................10 Operating Instructions ......................13 Care and Maintenance ......................15 Troubleshooting ........................16 Limited Lifetime Warranty ....................17 Replacement Parts List .......................17 SAFETY INFORMATION READ AND SAVE THESE INSTRUCTIONS Please read and understand this entire manual before attempting to assemble, install or operate the product. - Page 3 SAFETY INFORMATION DANGER When using an existing outlet box, make sure the outlet box is securely attached to the building structure and can support the full weight of the fan. Failure to do this can result in serious injury or death.
- Page 4 SAFETY INFORMATION CAUTION Be sure outlet box is properly grounded and that a ground wire (green or bare) is present. Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to ensure they are secure. Read all instructions and safety information before installing your new fan.
-
Page 5: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Mounting Plate LED Light Kit Canopy Ring Mounting Plate Lock Washer (preassembled) Motor Assembly Mounting Plate Screw Fitter Plate (preassembled) Glass Shade Motor Plate Screw Fitter Plate Screw (preassembled) (preassembled) Remote Pack Blade IMPORTANT REMINDER: You must use the parts provided with this fan for proper installation... -
Page 6: Hardware Contents
HARDWARE CONTENTS (shown actual size) Blade Fiber Wire Screw Blade Connector Washer Qty. 9 Qty. 3 + 1 extra Qty. 9 + 1 extra + 1 extra PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. - Page 7 INITIAL INSTALLATION This fan can be mounted as a flushmount on a regular (no-slope) ceiling only. 30 in. Check to make sure blades (G) will be at least min. 30 inches from any obstruction and at least 7 ft. above the floor. 7 ft.
- Page 8 INITIAL INSTALLATION Locate mounting plate screw (J)/mounting plate lock washer (I) on outer edge of mounting plate (A) that is closest to the j-hook and remove that mounting plate screw (J)/mounting plate lock washer (I). Also, remove mounting plate screw (J)/mounting plate lock washer (I) on outer edge of mounting plate (A) directly opposite the one that was just removed.
-
Page 9: Wiring
WIRING WARNING: To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to the corresponding fan lead wires, consult an electrician for the proper size wire connectors to use. -
Page 10: Final Installation
WIRING Wrap electrical tape around each individual wire connector (CC) down to the wire. WARNING: Make sure no bare wire or wire strands are visible after making connections. Place green and white connections on opposite side of box from the black and blue (if applicable) connections. - Page 11 FINAL INSTALLATION DANGER: To reduce the risk of serious bodily injury, DO NOT use power tools to assemble the blades (G). If screws are overtightened, blades (G) may crack and break. Insert the blade (G) through the slot on the band of the motor assembly (C).
- Page 12 FINAL INSTALLATION Locate BLUE and WHITE wires in fitter plate (D). Connect WHITE wire from LED light kit (H) to WHITE wire from fitter plate (D). Connect BLUE wire from LED light kit (H) to BLUE wire from fitter plate (D). Make sure molex connections are secure.
-
Page 13: Operating Instructions
OPERATING INSTRUCTIONS CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is not desired, turn wall switch off to any other programmable receiver or fan. FCC Compliance Notice for Remote Control Modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment. - Page 14 OPERATING INSTRUCTIONS 2. Restore electrical power. Within 30 seconds of restoring electrical power, press and hold the “0” button on the remote control transmitter for 5 seconds or until light on the fan blinks twice. Use the remote control transmitter to test the light and fan functions to confirm the learning process is complete.
-
Page 15: Care And Maintenance
OPERATING INSTRUCTIONS 4a. In warmer weather, setting the reverse switch in the LEFT position will result in downward airflow creating a wind chill effect. 4b. In cooler weather, setting the reverse switch in the RIGHT position will result in upward airflow that can help move stagnant, hot air off the ceiling area. -
Page 16: Troubleshooting
TROUBLESHOOTING WARNING: Before beginning work, shut off the power supply to avoid electrical shock. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Fan does not 1. Reverse switch not engaged. 1. Push switch firmly either left or move. right. 2. Power is off or fuse is blown. 2. -
Page 17: Limited Lifetime Warranty
LIMITED LIFETIME WARRANTY The distributor warrants this fan to be free from defects in workmanship and materials present at time of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option, replace the ceiling fan with a comparable or superior model.
