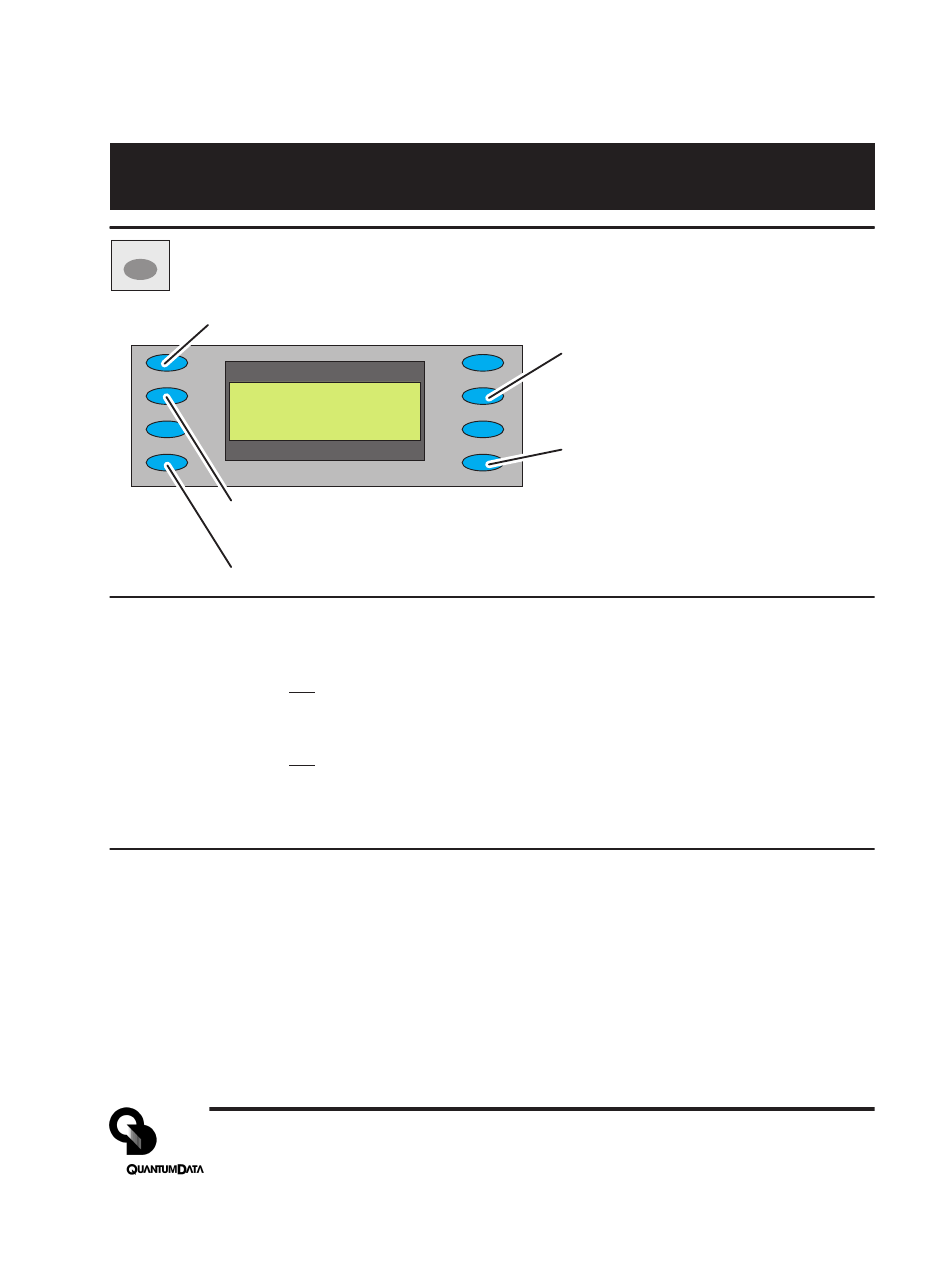

Options Menu
OPTIONS
This menu is used for system level options.
Power Save - Toggles enabling and disabling Power Saver option.
P w r
S a v e : O n
N T S C _ C a l
C l r
_
F m t s
NTSC_Cal - (Not on Model 606) Displays calibration Menu for setting peak white
signal on the TV output BNC connector. Appears only if the generator has been
configured to allow recalibration (see page 8).
Clr Fmts - Clears all formats from user memory.
Options Menu - Pwr_Save Button
When On and running from batteries: Unit will shut down after 30 minutes of no front panel
activity and the unit is not running in Burn-in test mode.
When On and running from external power: Current units ignore 30 minute shutdown timer
Older units updated to current firmware will shut down after 30 minutes of no front panel
activity and the unit is not in Burn-in test mode.
When Off: Unit ignores 30 minute shutdown timer and will continue to operate from either an
external power source or until the internal batteries are discharged.
Options Menu - Clr Fmts and Reload Fmts Buttons
Pressing the Clr Fmts button displays a confirmation request menu to clear all formats in
memory. Selecting Yes will cause all video formats in memory to be lost. There is no
way to abort or undo this operation. The LCD window will show "Initializing EEROM" when
the process is completed. Pressing the FORMAT button will display the Formats menu to list
the restored memory contents.
Pressing the Reload Fmts button restores all factory default formats to their original memory
locations. Any user formats in those locations will be lost. User formats saved in other memory
locations are left alone. The LCD will show Reloaded when the process is completed.
Part 68-00189 Rev I
_ _ _
C a l i b r a t e
_ _
R e l o a d F m t s
(added in version 2.02 firmware)
Calibrate - Displays calibration Menu
for setting RGB analog video and
sync amplitudes. Appears only if the
generator has been configured to
allow recalibration (see page 8).
Reload Fmts - Restores all factory
deafult formats without deleteing user
defined formats
Page 7
