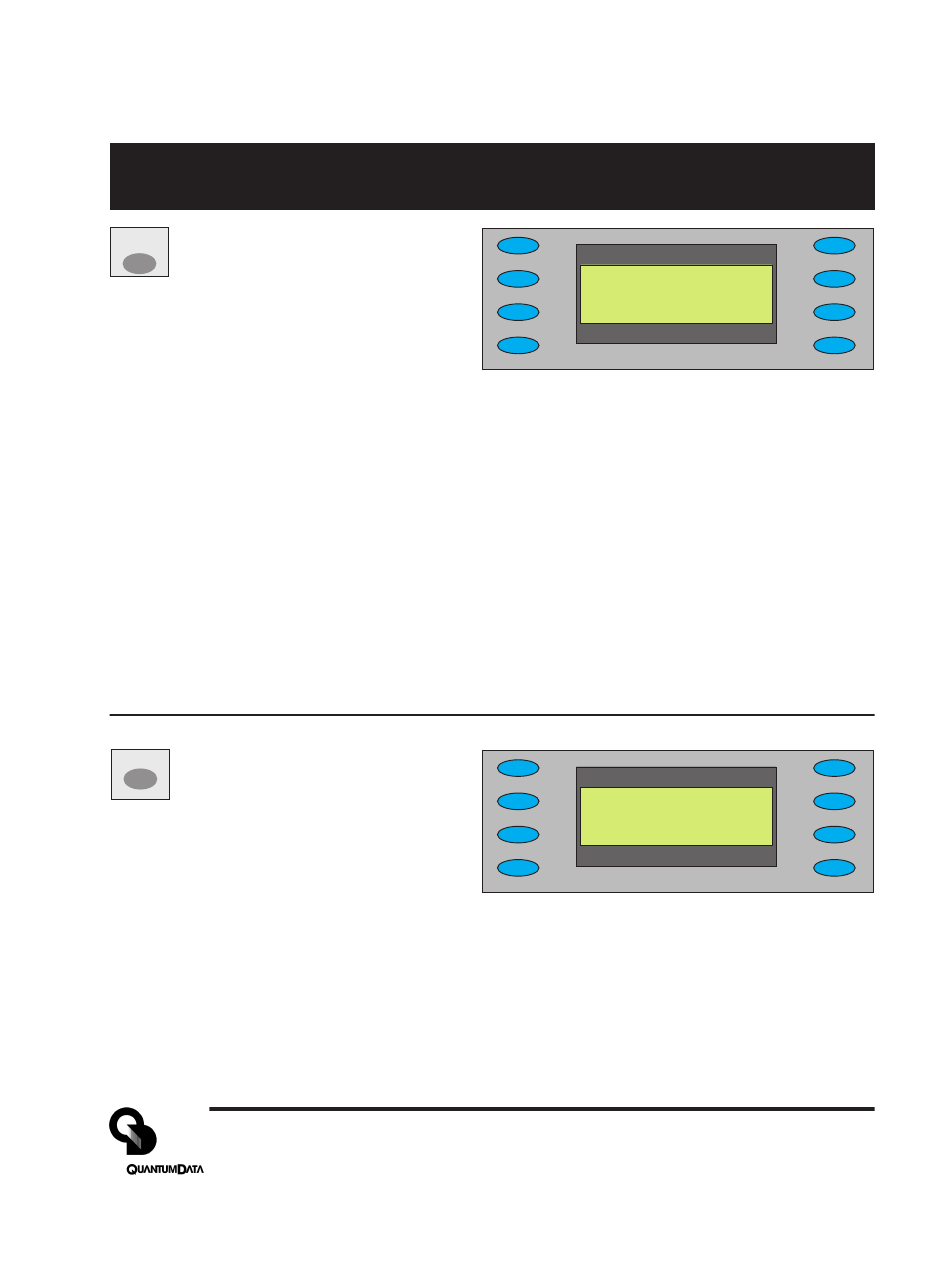

Signal Type and Format Menus
Signal Type Menu
SIGNAL
TYPE
Selecting one of the video types
shown will display a menu list of
matching formats. Pressing the FORMAT
button will return to the selected menu list
NOTES:
VESA = Red, Green, Blue component color video per VESA standards.
(VGA connector used for all outputs)
NTSC/PAL = Composite color baseband video signal (BNC connector) and
Separate Luminance and Chrominance video signals (S Video connector) or RGB
component video (VGA connector) per NTSC and PAL standards.
Formats in the Format menu using modulated RF output (Model 609 only) will
have a _Cnn in their name where the nn portion represents the given NTSC-M or
PAL-G television channel used.
HDTV YPrPB = Luminance plus color difference signals per HDTV standards
HDTV RGB = RGB component color video signals per HDTV standards
USER = Section of non-volatile memory reserved for user defined video formats
of any type.
Format Menu
FORMAT
Select from list of video formats
stored in the generator's memory
of the type selected from the Signal Type
menu. Use +/- buttons to page through list
when more than 8 items of a given type are
available. You can use the Quantum Data
VGM software package to add your own formats.You can also edit or replace any of the
factory default formats. A total of 120 video formats can be stored in the generator's non-
volatile memory. Unused locations are labeled on the LCD as being empty.
The Options menu allows you to remove all formats from all storage locations as well as put
all factory default formats back into their original locations.
Part 68-00189 Rev I
* V E S A
_ _ _ _ _ _ _ _ _ _ _
U S E R
_
N T S C / P A L
_
H D T V
_
Y P r P b
_
H D T V
_
R G B
* 6 4 0 x 4 8 0
_ _ _
1 6 0 0 1 2 0 0
_
8 0 0 x 6 0 0
_ _ _
1 9 2 0 1 4 4 0
_
_
1 0 2 4 x 7 6 8
_ _
2 0 4 8 1 5 3 6
_
_
1 2 8 0 x 1 K
_ _ _
2 0 4 8 2 0 4 8
_
Page 5
