Selecting Test Images; Video And Sync Outputs Gating - Quantum Data 606 Quick Start Manual

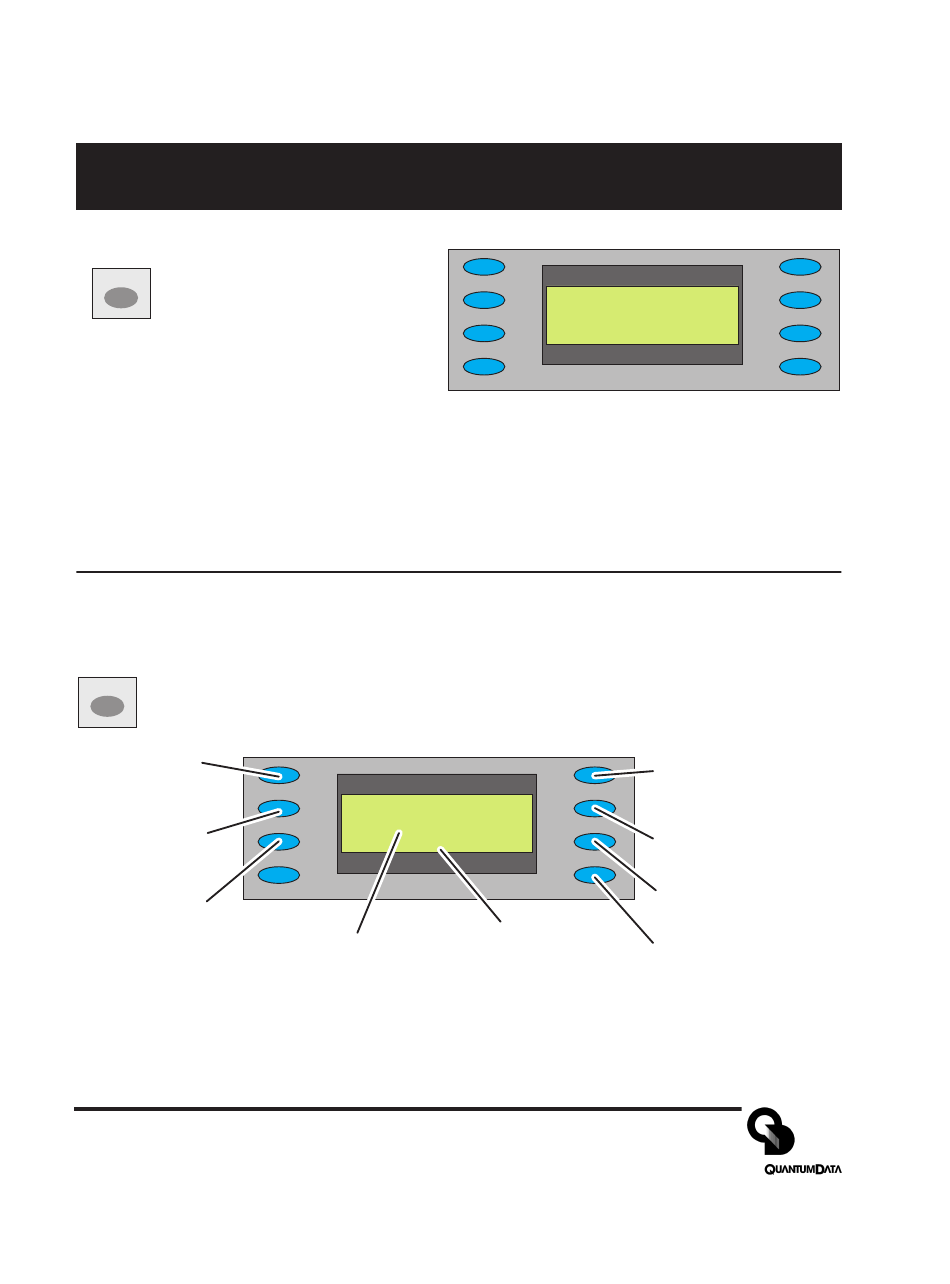

Image and Gating Menu
Image Menu
Select from list of available test
images (patterns). Use +/-
buttons to page through list if
more than 8 items. The current
firmware does not support adding your own
test images or modifying the built-in ones.
Gating Menu
GATING
Red Color
Component
ON/OFF
Green Color
Component
ON/OFF
Blue Color
Component
ON/OFF
Page 6 Model 606, 607, 608, 609 Quick Start Guide
* R E D _ _ G A T I N G _ _ _ _
* G R N _ _ _ _ _ _ _ _ _ _ _ _
* B L U _ _ F o r m a t _ _ _ _
_ _ _ _ _ _ I m a g e _ _ _ _ _
Current
Video Format
* G r i d _ _ _ _ _ _ _ _ _
_ D o t s _ _ _ _ _ _ _ _ _ _ _
_ C o l o r B a r _ _ _ _ _
_ G r a y B a r s _ _ _ _ _ _
ACS - Select Analog
Composite Sync
(Composite Video)
A C S _
D C S _
D S S *
DCS - Select Digital
O U T *
Composite Sync
DSS - Select Digital
Separate (H&V) Sync
Current
OUT - All test signal
Test Image
outputs ON/OFF
W h i t e
R e d _
G r e e n _
B l u e
