DDC Step and Probe Mode Sub-menus

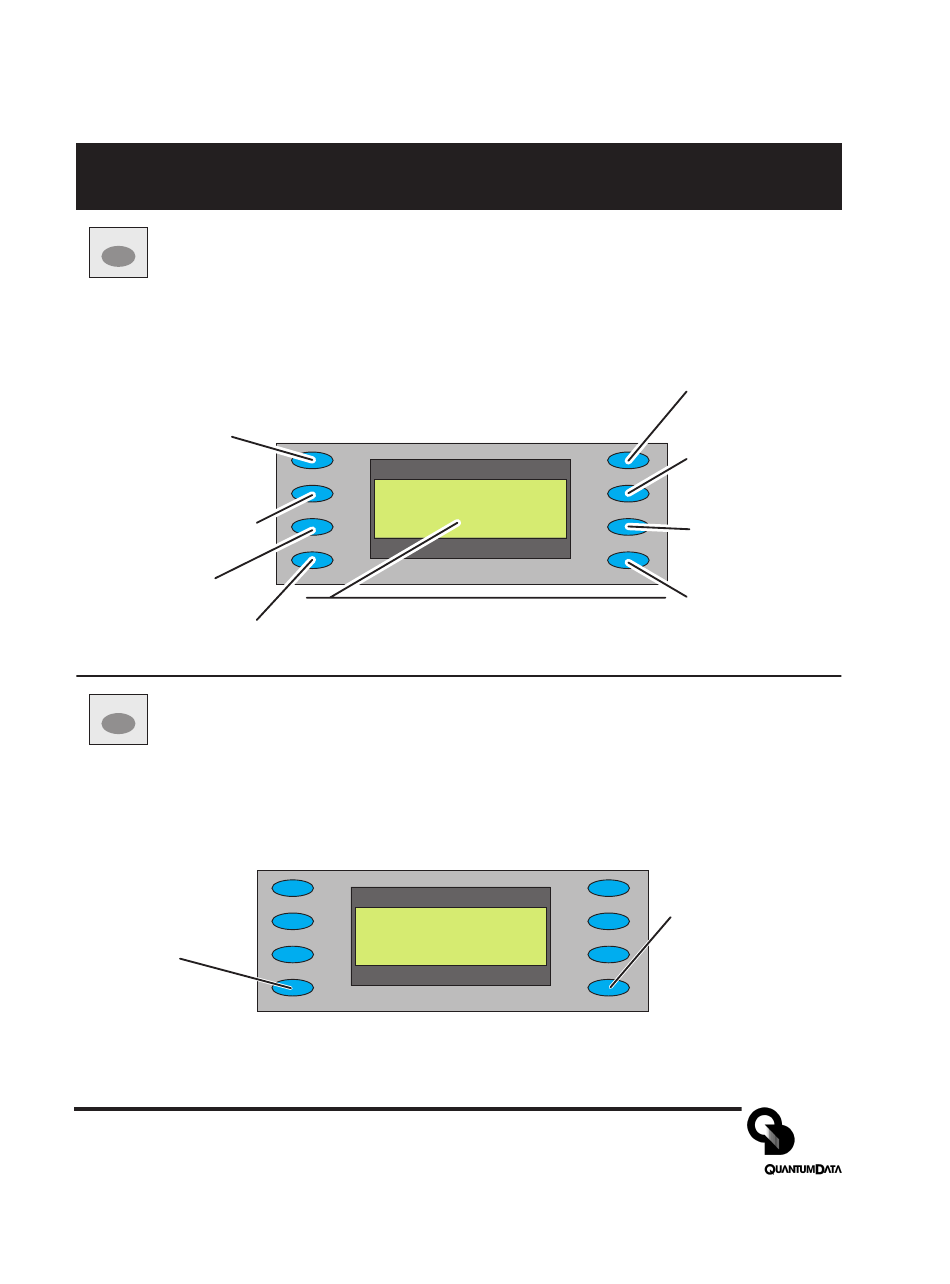

DDC Step Mode

TEST
Uses + button to step through video formats in list produced by Learn DDC
+
function. Uses - button to step through all available test images. Pressing Run
DDC Step
menu button causes generator to automatically cycle through all test images for
every video format in the list. Pressing Stop menu button restores manual stepping.
Run - Press to run
Automatcally cycle
through all format and
test images
Stop - Press to return to
manual format and
image stepping
Red Color Component
ON/OFF
Green Color
Component ON/OFF
Blue Color Component
ON/OFF
CS-1 Probe Test Mode
TEST
Uses the Quantum Data Model CS-1 color sensor to measure the chromaticity
+
and luminance (brightness) of the test CRT display. The CS-1 probe connects
CS1 Probe
directly to the serial port on the generator. Chromaticity is shown as x,y C.I.E.
coordinates and the luminance (Y) can be shown either in units of foot-Lamberts or nits. The
CS-1 needs to be over a fully lit white area of the CRT screen for accurate readings. The built-
in Flat_Wht test image is suitable for use with the CS-1
Read - Take new
reading.
Error Codes: 1, 7 - CS-1 not seeing a usable test image.
5, 8 - Generator did not find a Model CS-1 probe.
2, 3, 6 - Probe malfunctioning.
Page 14 Model 606, 607, 608, 609 Quick Start Guide
_ R u n _ _ D D C _ S t e p
_ R e d _ _ _ _ _ _ _ _ _ _ _ _
_ G r n _ _ _ F o r m a t
_ B l u _ _ _ I m a g e
Line 1: Video format used in current step
Line 2: Test image used in current step
_ _ _ _ _ _ Y : _ 2 4 . 1 4 1
_ _ _ _ _ _ x : _ . 2 9 3
_ _ _ _ _ _ y : _ . 2 7 9
_ R e a d _ _ _ _ _ _ _ f L / n i t s
_ _ O U T *
D S S *
_ _ _ D C S _
_ _ _ _ A S C
_ f L
OUT - All test
signal outputs
ON/OFF
DSS - Select
Digital Separate
(H&V) Sync
DCS - Select
Digital Composite
Sync
ASC - Select
Composite Analog
Sync (Composite
Video)
fL/nits - Toggle
between foot-
Lamberts and
nits for units of
measure and
take new reading.
