Making Connections - Quantum Data 606 Quick Start Manual

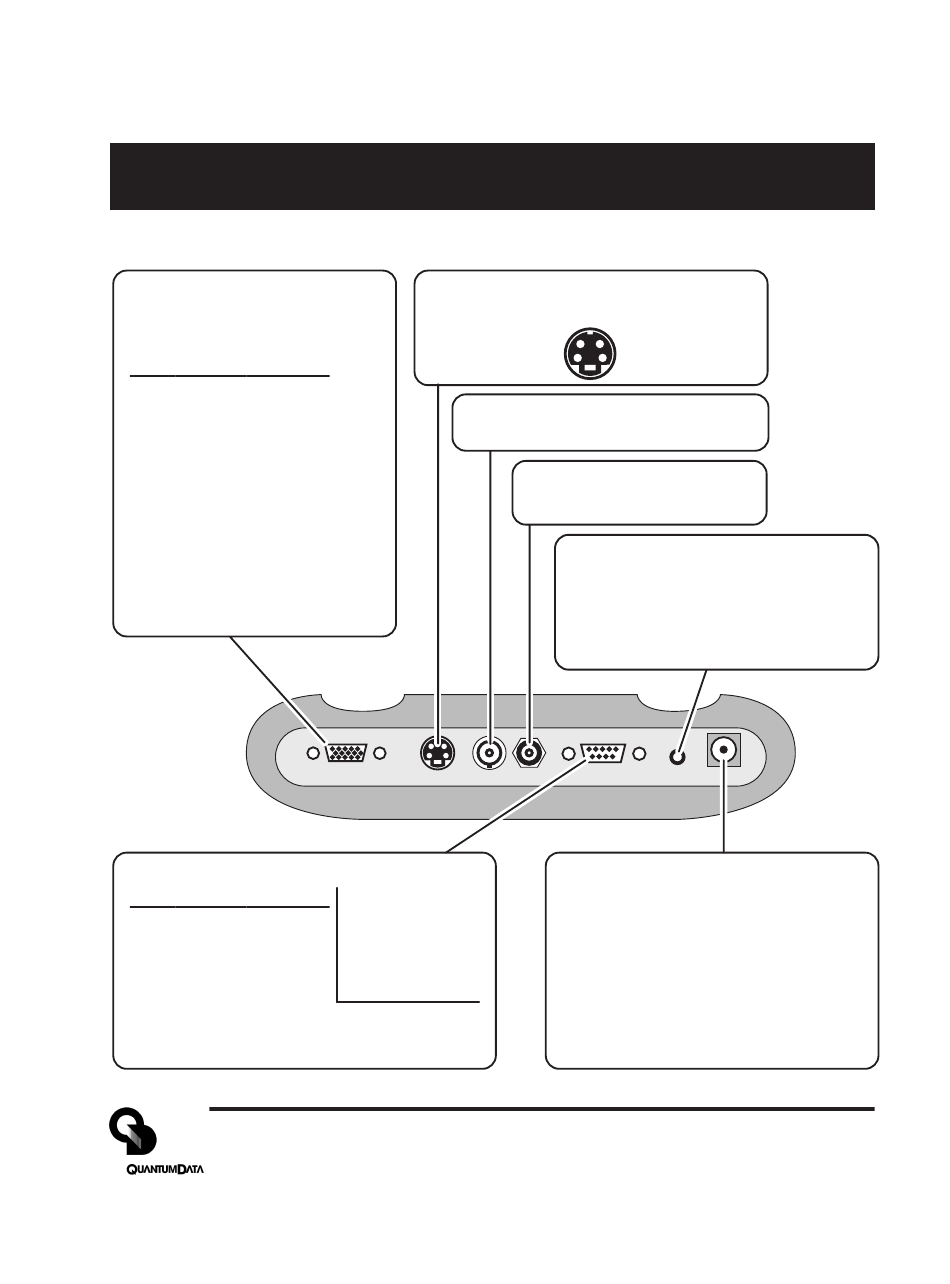

Making Connections

VGA Receptacle
(No HDTV Y,Pr,Pb on 606*)
15 Pin HD D-Sub
Pin # Signal
1 Red Video (*HDTV Pr)
2 Green Video (*HDTV Y)
3 Blue Video (*HDTV Pb)
4 Ground
5 Ground
6 Ground
7 Ground
8 Ground
9 +5 VDC Out
10 Ground
11 Ground
12 DDC Data - SDA
13 TTL Horiz Sync
14 TTL Vert Sync
15 DDC Clock - SCL
RS-232 Port - 9 Pin D-Sub Plug
Pin # Signal
1 No Connection
2 Data In (Rx)
3 Data Out (Tx)
4 DTR Out
5 Ground
6 No Connection
7 RTS Out
8 CTS In
9 No Connection
Part 68-00189 Rev I
Test Signal Output Connectors
S-Video Receptacle
4 Pin mini-DIN
Chrominance (C)
Ground
NTSC / PAL
BNC Receptacle
VGA/HDTV S VIDEO NTSC/PAL
Factory Defaults:
9600 Baud
8 Data Bits
No Parity
1 Stop Bit
X on - X off
Pinout same as for 9
pin PC-AT serial port
connector
(Not on 606)
Luminance (Y)
Ground
(Not on 606)
Television RF
F Receptacle
(609 Only)
Stereo Audio - 3.5 mm Phone
Jack
(Not on 606 and 607)
Tip Left Channel (1 KHz)
Ring Right Channel (2 KHz)
Sleeve Ground
RF RS 232 AUDIO
External DC Power /
Battery Recharge Input
Center Pin: +9.0 VDC
Outer Sleeve: - (Ground)
WARNING:
Attempting to use an
external power source other than the
Quantum Data supplied AC power
supply may cause operator injury
and/or damage the generator.
POWER
Page 3
