Test Menu and Sequence Mode Sub-menu

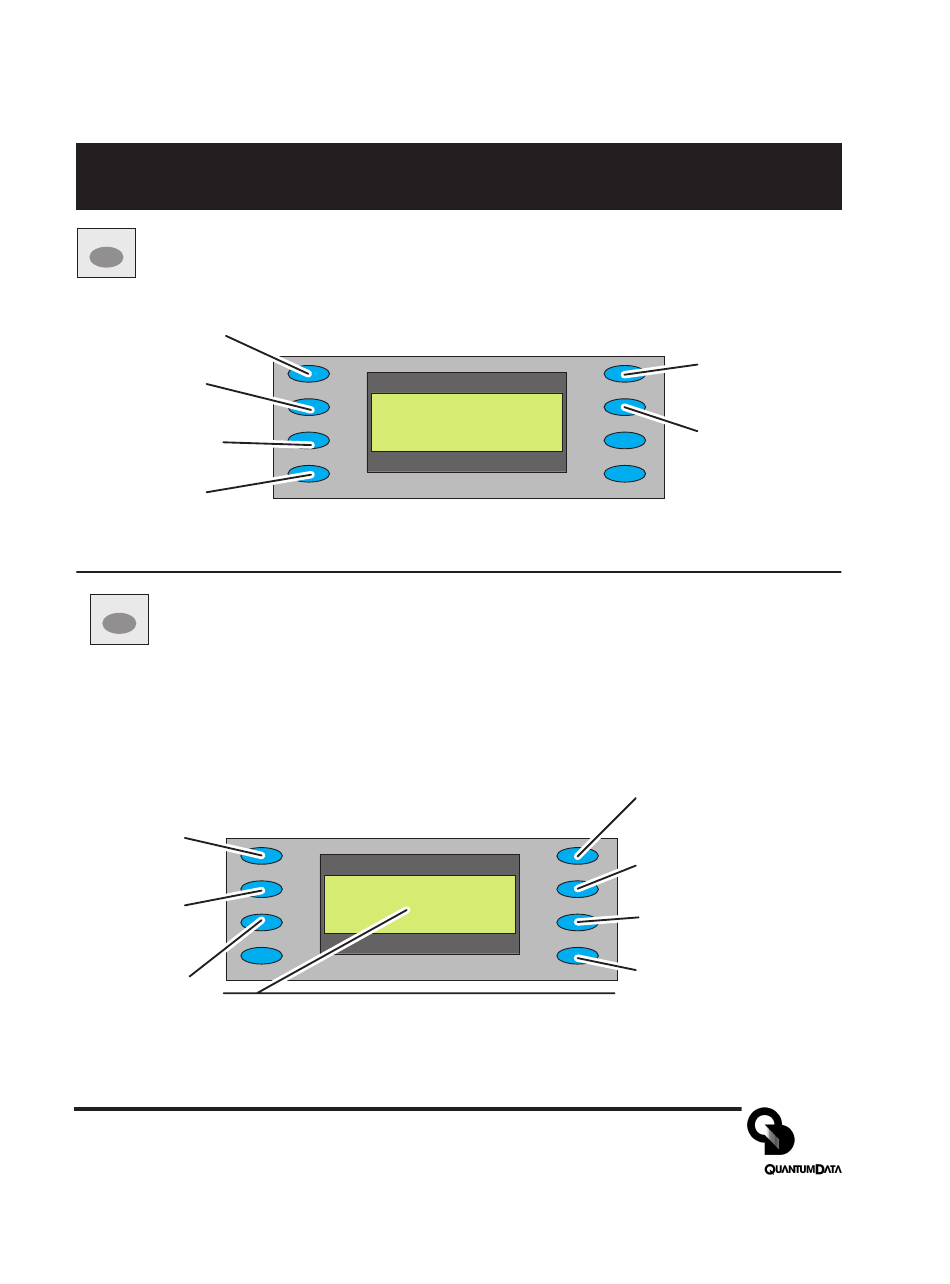

Test Menu

TEST
Select special test operating modes.
Sequence Mode
Sub-Menu
Burn-In Mode
Sub-Menu
Freq Shift Mode
Sub-Menu
Audio Set-up
Sub-Menu
Sequence Mode
TEST
Uses +/- buttons to manually step through a sequence of defined tests. Each step
+
loads a given video format and test image. Menu buttons permit the operator to
Sequence
gate video color information, change sync types and turn all signal outputs on and
off. The current firmware includes a sample test sequence. You can use Quantum Data's
VGM software to create and save your own test sequence. Use the Burn-in Test menu selec-
tion if you wish for the generator to automatically cycle through all of the steps.
Red Color
Component
ON/OFF
Green Color
Component
ON/OFF
Blue Color
Component
ON/OFF
Line 1:
Line 2:
Line 3:
Line 4:
Page 12 Model 606, 607, 608, 609 Quick Start Guide
_ S e q u e n c e _ _ _ _ _ _
_ B u r n - I n _ _ _ _
_ F r e q S h i f t
_ A u d i o
_ R e d _ _ S E Q _ N A M E _ _ A C S
_ G r n _ _ S t e p # x x x _ _ D C S
_ B l u _ _ _ F o r m a t _ _ _ D S S *
_ _ _ _ _ _ _ I m a g e _ _ _ _ O U T *
Name of Test Sequence currently running.
Current step number in sequence
Video format used in current step
Test image used in current step
P r o b e
D D C _ S t e p
ASC - Select Composite
Analog Sync
(Composite Video)
DCS - Select Digital
Composite Sync
DSS - Select Digital
Separate (H&V) Sync
OUT - All test signal
outputs ON/OFF
Probe
CS-1 Readings
Sub-Menu
DDC Step
Mode
Sub-Menu
