BZB Gear HDS-B41PA100 User Manual

4k@60 4x1 switcher with 2x50w audio amplifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
4K@60 4×1 Switcher with
2×50W Audio Amplifier
VER 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDS-B41PA100 and is the answer not in the manual?

Questions and answers

Related Manuals for BZB Gear HDS-B41PA100

Summary of Contents for BZB Gear HDS-B41PA100

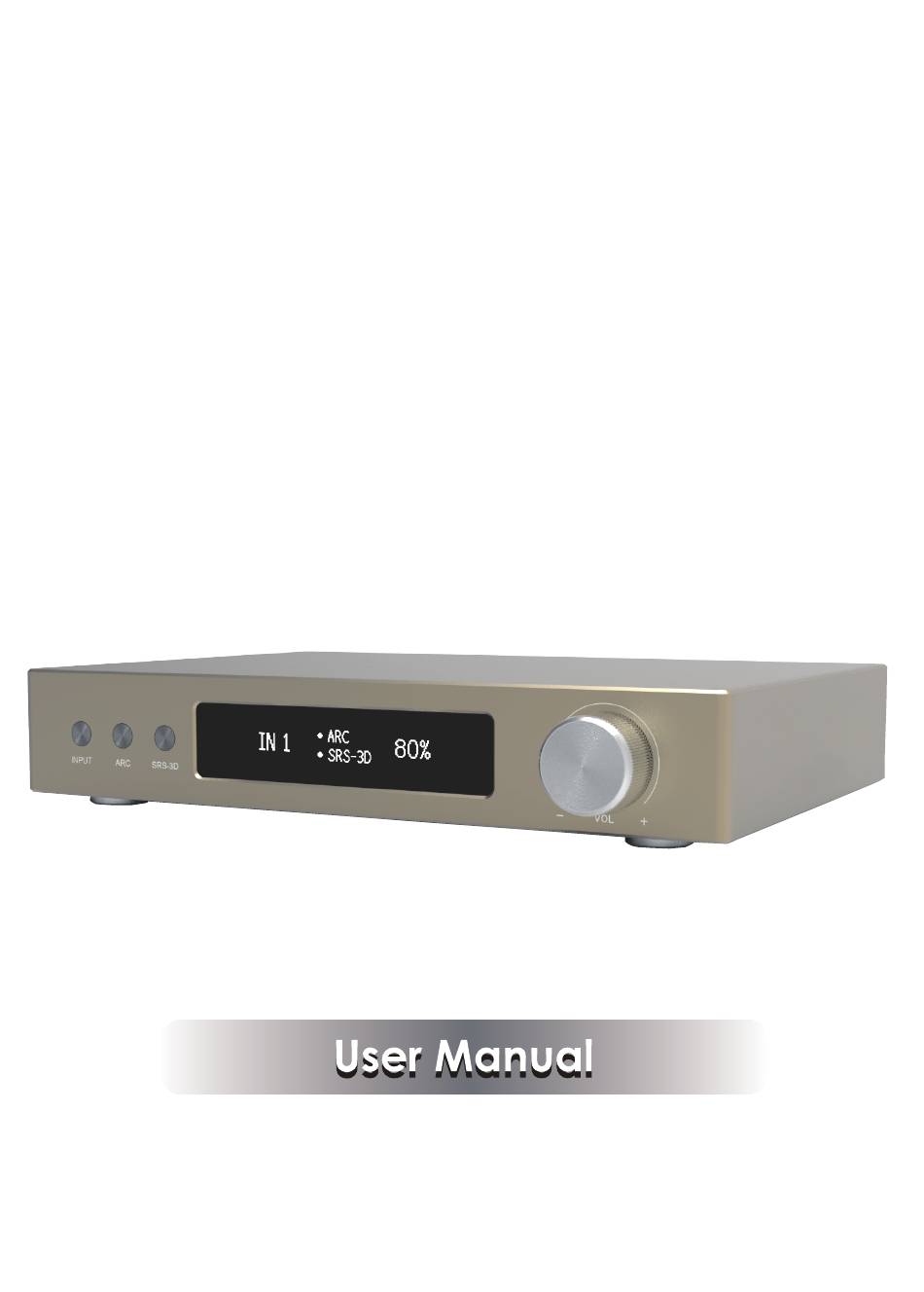

  • Page 1 4K@60 4×1 Switcher with 2×50W Audio Amplifier VER 1.0...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electr-ical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Package Contents

    1. Introduction The high performance 4K60Hz 4×1 Switcher supports four HDMI high definition inputs and one HDMI output, the highest resolution is up to 4K60Hz YCbCr 4:4:4, HDCP 2.2. It supports external analog audio input. It can extract HDMI audio and external analog audio to analog audio and 2×50W amplifier output.

  • Page 4: Specifications

    4. Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18Gbps 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, Video Resolution YCbCr 4K2K@50/60Hz ( 4:4:4) LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, HDMI Audio Formats DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD ＞94dB Signal-Noise ratio ＜0.03%（@1KHz 4Ω...

  • Page 5: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Front Panel INPUT SRS-3D 1 2 3 Number Name Function description The OLED screen will display relevant information INPUT button when the INPUT button selects one input source. Start and stop ARC function. The OLED on front ARC button panel will display when the ARC is started.

  • Page 6: Remote Control

    Number Name Function description ▪ 1~4 HDMI ports: Connect to HDMI source device such as DVD or PS4 player with an HDMI cable. INPUT ports ▪ 5 LINE port: Connect to external audio input such as MP3 or DVD. ▪ HDMI port: Connect to HDMI display device such as TV or projector with an HDMI cable.

  • Page 7: Application Example

    7. Application Example Power Supply SPEAKER 50W 2@4 HDMI 1HDMI 2 HDMI 5 LINE LINE DC-24V 3 HDMI 4 HDMI MENU MP3 Player 2.0 Active Speakers 50W×4Ω 50W×4Ω Speakers TV or Monitor DVD or Blu-ray Player DVD or Blu-ray Player...
