Summary of Contents for ACTi Q92

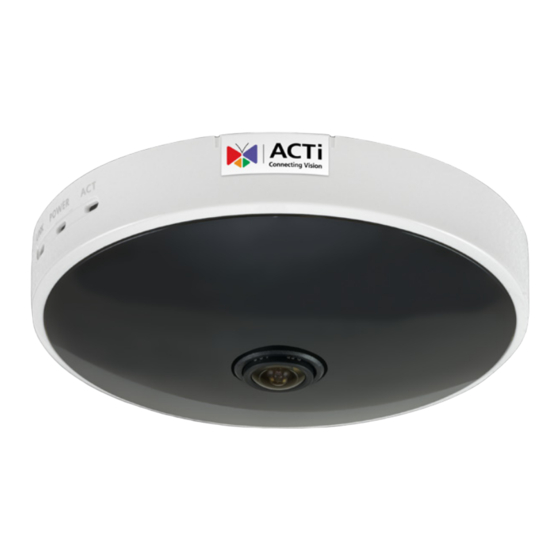

- Page 1 Indoor Mini Dome Hardware Manual Q92, Q93, Q94 Ver. 2016/11/24...
-
Page 2: Table Of Contents
How to Install / Remove the Memory Card ............19 How to Insert the Memory Card ................19 How to Remove the Memory Card ..............19 How to Connect the Power Adapter (Optional) ............ 20 Accessing the Camera Configure the IP Addresses ................... 21 www.acti.com... - Page 3 Initial People Counting Configuration ..............27 How to Configure People Counting? ..............30 Where to Save the Counting Data? ..............34 How to Create the Camera Identity? ..............34 Other People Counting Firmware Setup Tips ............. 35 Using the Live People Counting Viewer www.acti.com...
-
Page 4: Precautions
Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. ACTi will not be held responsible for any typographical or technical errors and reserves the right to make changes to the product and manuals without prior notice. - Page 5 This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022 and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures. www.acti.com...
-
Page 6: Safety Instructions
Safety Check Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine if the product is in proper operating condition. www.acti.com... -
Page 7: Introduction
Extreme WDR, SLLS, Fixed lens 1MP People Counting Indoor Mini Dome with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed lens From the installation perspective, the above models are very similar; therefore one manual is used for all of them. www.acti.com... -
Page 8: Package Contents
When the camera is taken out from the box, the lens cover is covered by a thin film. DO NOT remove this film. It is used to protect the lens cover from scratches or fingerprint marks which may happen during installation. Remove this film only after the camera is securely installed and all connections are complete. www.acti.com... -
Page 9: Physical Description
Connects to a network using an Ethernet cable with RJ-45 connector. (RJ-45) DC 12V Power Connects to a DC 12V power when a Power-over-Ethernet (PoE) Input switch or injector is not available. See How to Connect the Power Adapter (Optional) on page 20 for more information. www.acti.com... -
Page 10: Mounting Options
(optional accessory set) is required for this type of installation. NOTE: For more information about the mounting solutions and accessories, please check the Mounting Accessory Selector in our website (http://www.acti.com/mountingselector). The above mounting accessories are not included in the package. Contact your sales agents to purchase. www.acti.com... -
Page 11: Installation Procedures
Note that the camera logo indicates the upright camera orientation. For ease of configuration, it is recommended that camera is installed with the logo facing the people passing by. www.acti.com... -
Page 12: General Installation
Make sure that the doors are not opened on the detection line. Do not mount the camera too far away from the door to avoid missing people. www.acti.com... -
Page 13: Escalator Installation
The recommended areas for people counting on the escalator are before a person can get on the escalator or after getting off the escalator. Not on the moving escalator itself. Mount the camera where the edge of the field of view will meet the edge of the escalator. www.acti.com... -
Page 14: Step 2: Open The Dome Cover
Hardware Manual Step 2: Open the Dome Cover 1. Hold the camera on its base with one hand and twist the dome cover towards the left with the other hand. 2. Lift to remove the dome cover. www.acti.com... -
Page 15: Step 3: Route The Cables
2. Route the cable from the network side through the hole and connect it to the Ethernet port of the camera. 3. Push the cable through the hole on the surface. If the cable will be routed along the surface 1. Cut off the marked tab on the dome cover and the camera body. www.acti.com... -
Page 16: Step 4: Install The Camera
1. If necessary, insert a memory card into the memory card slot of the camera. See How to Insert the Memory Card on page 19 for more information. 2. Install the camera to the surface using the three (3) bundled screws. NOTE: Please make sure the screw is flat on the plate. www.acti.com... -
Page 17: Step 5: Connect To Network
Power Cable PoE Switch Ethernet Cable AC Power (Data + Power) Source Camera Step 6: Close the Dome Cover 1. Align the cable tab side of the dome cover to the direction of the network cable to close the cover. www.acti.com... -
Page 18: Step 7: Access The Camera Live View
2. Twist the dome cover towards the right to lock the cover into place. Final installation should look similar to the illustration below. Step 7: Access the Camera Live View Accessing the Camera on page 21 for more information on how to access the Live View of the camera. www.acti.com... -
Page 19: Other Adjustments And Accessories
In case there is a need to remove the card, make sure to access the camera Web Configurator to safely “unmount” the card first (see the camera Firmware User’s Manual for more information). Once unmounted from the firmware, push the card to eject it from the slot. www.acti.com... -
Page 20: How To Connect The Power Adapter (Optional)
1. Map the power adapter wires to the wires on the converter cable by mapping them according to the table below. Converter Cable PPBX-0002 Power Adapter White Cable WITH white stripe Black Cable without stripe 2. Connect the other end of the converter cable to the camera power jack. Camera Power Jack Converter Cable www.acti.com... -
Page 21: Accessing The Camera
Windows system – just by pressing the “Network” icon, all the cameras of the local area network will be discovered by Windows thanks to the UPnP function support of our cameras. In the example below, we successfully found the camera that we had just connected to the network. www.acti.com... - Page 22 The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility With just one click, you can launch the IP Utility and there will be an instant report as follows: You can quickly see the camera model in the list. Click on the IP address to automatically launch the default browser of the PC with the IP address of the target camera filled in the address bar of the browser already.
-
Page 23: Using The Default Camera Ip Address
PC has to be configured to match the network segment of the camera. Manually adjust the IP address of the PC: In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below: www.acti.com... - Page 24 In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time. www.acti.com...
-
Page 25: Access The Camera
When using Internet Explorer browser, the ActiveX control for video stream management will be downloaded from the camera directly – the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case. www.acti.com... - Page 26 HTTP port of the camera is 80, which can be omitted from the address for convenience. Before logging in, you need to know the factory default Account and Password of the camera. Account: Admin Password: 123456 www.acti.com...
-
Page 27: Initial People Counting Configuration
To use the People Counting feature, the parameters on the Reporting Server, Location and Object Counting pages must be configured on the firmware. The pages are used to configure the following: Object Counting: Defines the virtual line for people counting and the schedule to send reports. See www.acti.com... - Page 28 Hardware Manual How to Configure People Counting? on page 30. Reporting Server: Defines where the counting data is saved. See www.acti.com...
- Page 29 Location: Defines the exact location where the camera is installed. The information on this page will be used to identify the camera and will appear on the Reporting Server application. See Other People Counting Firmware Setup Tips on page 35. www.acti.com...
-
Page 30: How To Configure People Counting
On the Object Counting page, a line appears on the upper left corner and a purple box (detection size) on the lower left corner for first-time configuration. To configure or modify an existing configuration, click on “Setup” to adjust the line and define its parameters. Click “Enabled” to enable People Counting. www.acti.com... - Page 31 Check “Reverse Direction” to reverse the in or out direction. Counting Schedule The camera can be set to count only on specific time and days of the week. Check the day(s) when to activate counting and set the starting and ending time. www.acti.com...
- Page 32 Hardware Manual Send Counting Data to IVS Server The camera can send the counting data to a Reporting Server (see www.acti.com...
- Page 33 Reporting Server Up to two reporting servers can be configured for one camera. The counting data can be sent to Server 1 or Server 2 or select “all” to send to both servers as configured on the Reporting Server page. www.acti.com...
-
Page 34: Where To Save The Counting Data
Hardware Manual Where to Save the Counting Data? Download the Reporting Server application from www.acti.com and save it on a computer which will be the server. The data can be sent to up to two reporting servers. Check Server 1 or Server 2 to enable and configure the servers. Enter the computer “Network Address”, “Network Port”, and “Account”... -
Page 35: Other People Counting Firmware Setup Tips
Draw the detection line on the center of the field of view. Draw the detection line to cover the width where people will pass by. Do not draw the line to be too short to avoid missing people. www.acti.com... -
Page 36: Using The Live People Counting Viewer
For automatic camera configuration, the Live People Counting Viewer can be used for initial installation and configuration. 1. From ACTi’s Download Center, download and install the application to the computer. 2. Enter the camera IP address, user and password. (Default user and password: admin, 123456) - Page 37 Hardware Manual 3. Enter the Height of camera installation, then click Automatic. The counter changes as people pass by the camera. www.acti.com...
- Page 38 Copyright © 2016, ACTi Corporation All Rights Reserved 7F, No. 1, Alley 20, Lane 407, Sec. 2, Ti-Ding Blvd., Neihu District, Taipei, Taiwan 114, R.O.C. TEL : +886-2-2656-2588 FAX : +886-2-2656-2599 Email: sales@acti.com...
