- Page 1 Indoor Hemispheric Dome Hardware Manual B57, B57A, B59, B59A, B511, B511A 2017/01/16...
-
Page 2: Table Of Contents
Step 2: Prepare the Camera ............17 Step 3: Install the Camera............18 Step 4: Connect the Cable(s) ............18 Step 5: Access the Camera Live View ......... 20 Accessing the Camera Configure the IP Addresses ............21 Access the Camera ................. 25 www.acti.com... -
Page 3: Precautions
Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. ACTi will not be held responsible for any typographical or technical errors and reserves the right to make changes to the product and manuals without prior notice. - Page 4 This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022 and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures. www.acti.com...
-
Page 5: Safety Instructions
Safety Check Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine if the product is in proper operating condition. www.acti.com... -
Page 6: Introduction

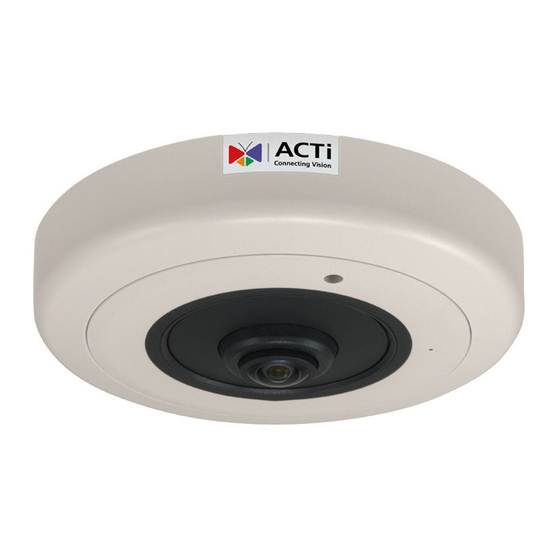

6MP Video Analytics Indoor Hemispheric Dome with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed lens 6MP Video Analytics Indoor Hemispheric Dome with D/N, Adaptive B57A IR, Extreme WDR, SLLS, Fixed lens 8MP Video Analytics Indoor Hemispheric Dome with D/N, Adaptive... -
Page 7: Package Contents
When the camera is taken out from the box, the lens is covered by a thin film. DO NOT remove this film. It is used to protect the lens from scratches or fingerprint marks which may happen during installation. Remove this film only after the camera is securely installed and all connections are complete. www.acti.com... -
Page 8: Physical Description
Connects to the network using an Ethernet cable. Audio Output Connects to an audio output device, such as a speaker, with a 3.5 mm audio jack connector. Audio Input Connects to an audio input device, such as a microphone, with a 3.5 mm audio jack connector. www.acti.com... -
Page 9: Before Installation
1. Loosen the screws of the 12V and GND pins of the power terminal block. 2. Take note that a standard power adapter cable has two (2) different wires: Connects to GND Pin White stripe: Connects to 12V Pin www.acti.com... - Page 10 4. Tighten the screws of the 12V pin and the GND pins to secure the wire connection. 5. Set the prepared power adapter for connection later. Below is an example of a power adapter with an attached terminal block. NOTE: The power adapter is not bundled in the package. www.acti.com...
-
Page 11: Prepare The Di/Do Connector (Optional)
To connect digital input / output devices, map the pins to one of the pin combinations below: Device Mapping Instructions Digital Input (DI) Connect the wires of the input device to GND and DI. Digital Output (DO) Connect the wires of the output device to 12V and DO. www.acti.com... - Page 12 DI/DO device to an external power source. In this case, wire connection GND and DI pins to connect a DI device and use the 12V and DO pins to connect a DO device. See wiring scheme below: www.acti.com...
- Page 13 The illustration below is a graphic example of connecting a relay to a high voltage DO device. 110V-220V AC External Power Source Relay (DO1 Device) Camera Illuminator NOTE: For more information on DI/DO connections, please refer to the Knowledge Base article All About Digital Input and Digital Output downloadable from the link below (http://Download.acti.com?id=516). www.acti.com...
-
Page 14: Installation Procedures
Suitable when mounting the camera on high walls. The camera can be tilted Mount 10° to capture a larger viewing angle below the camera and less on the ceiling. PMAX-0320 Pendant Mount Suitable when mounting the camera on hard and high cielings. PMAX-0101 PMAX-0103 PMAX-0101 PMAX-0102 www.acti.com... - Page 15 PMAX-0402 NOTE: For more information about the mounting solutions and accessories, please check the Mounting Accessory Selector in our website (http://www.acti.com/mountingselector). The above mounting accessories are not included in the package. Contact your sales agents to purchase. www.acti.com...
-
Page 16: Mounting On The Ceiling Or Wall
2. If the cables will pass through the ceiling or wall, drill also the cable hole at this point and pull the cables through the hole on the ceiling or wall. 3. Remove the drill template sticker from the surface. www.acti.com... -
Page 17: Step 2: Prepare The Camera
2. If the cables will pass through the surface, skip this step. If the cable will be routed along the surface, remove the tab from the cover ring. This is where the cables will be routed through from the camera. www.acti.com... -
Page 18: Step 3: Install The Camera
If necessary, connect other cable connectors (optional), like audio input/output, DC 12V power, and DI/DO. See sample image below. DC 12V Power DI / DO Network Cable Audio Output NOTE: The cables are not included in the camera package. www.acti.com... - Page 19 2. Attach the cover ring, take note that the arrow on the camera should be aligned with the arrow on the cover ring. NOTE: The cables must be slightly bent underneath the cover ring. 3. Twist the ring counter-clockwise to secure the ring to the camera. 4. Remove the thin film protecting the lens. www.acti.com...
-
Page 20: Step 5: Access The Camera Live View
Switch Ethernet Cable AC Power (Data + Power) Source Camera Step 5: Access the Camera Live View Accessing the Camera on page 21 to view the camera Live View and adjust the capture settings or flip the image view. www.acti.com... -
Page 21: Accessing The Camera
In the example below, the camera that has just been connected to the network is successfully found. Double-click the mouse on the camera model name, the default browser of the PC is automatically launched and the IP address of the target camera is already filled in the address bar of the browser. www.acti.com... - Page 22 The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility When you launch IP Utility, the list of connected cameras in the network will be shown. See sample illustration below: You can quickly notice the camera model in the list.
- Page 23 PC has to be configured to match the network segment of the camera. Manually adjust the IP address of the PC In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below: www.acti.com...
- Page 24 In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time. www.acti.com...
-
Page 25: Access The Camera
When using Internet Explorer browser, the ActiveX control for video stream management will be downloaded from the camera directly – the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case. www.acti.com... - Page 26 HTTP port of the camera is 80, which can be omitted from the address for convenience. Before logging in, you need to know the factory default Account and Password of the camera. Account: Admin Password: 123456 For further operations, please refer to the Firmware User Manual. www.acti.com...
- Page 27 Copyright © 2016, ACTi Corporation All Rights Reserved 7F, No. 1, Alley 20, Lane 407, Sec. 2, Ti-Ding Blvd., Neihu District, Taipei, Taiwan 114, R.O.C. TEL : +886-2-2656-2588 FAX : +886-2-2656-2599 Email: sales@acti.com...
