iPad™ IPM-500 Mounting Frame Installation Instructions
The IPM-500 open mounting frame securely holds the Apple iPad™ or
iPad2™ (not included) in place and gives access to all iPad™ controls
and connections. Its removeable wall mount plate may be installed on
any single stud surface, and provides 360° rotation for landscape or
portrait placement.
Step 1
Remove the wall plate from the
IPM-500.
Step 2
Use two (2) #8 x 1¼" wood screws
to attach the wall plate to a single
wood stud.
#8 x 1¼" Wood Screw
• All trademarks are the property of the respective trademark owners.
Installation Instructions
9531-056-041-00
Visit the Premier Mounts website at http://www.mounts.com
3130 East Miraloma Avenue
Anaheim, CA 92806 USA
USA and Canada
Phone: 1.800.368.9700
Fax: 1.800.832.4888
Other Locations – Phone: (001).714.632.7100; Fax: (001).714.632.1044 ©Premier Mounts 2011
Parts List

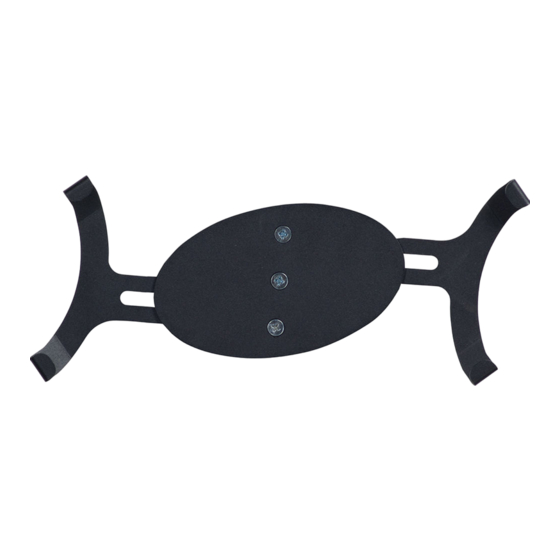

IPM-500
(Qty 1)
Step 3
Are you installing an original
iPad™ or iPad2™ to the
IPM-500?
If an original iPad™, remove
the corner felt pads on the
IPM-500. Then continue to
step 4 below.
If an iPad2™, continue to
step 4 below.
Step 4
➊
Extend the arms of the IPM-500.
➋
Insert the iPad™ in the IPM-500.
Each arm of the IPM-500 should
fit over a corner of the iPad™.
IPM-500
#8 x 1¼" Wood Screw
(Qty 2)
Remove if using original iPad™
Remove if using original iPad™
