Terminal Identification; Function/Description; Ac / Ac; + Dc - - Altronix ALTV1224C220 Installation Manual

SMP5 - Power Supply Board
Terminal Legend

AC / AC

+ DC -

- BAT +

PD8(CB) - DC Output

1P - 8P
1N - 8N

PD8(CB) - AC Output

1P - 8P
1N - 8N

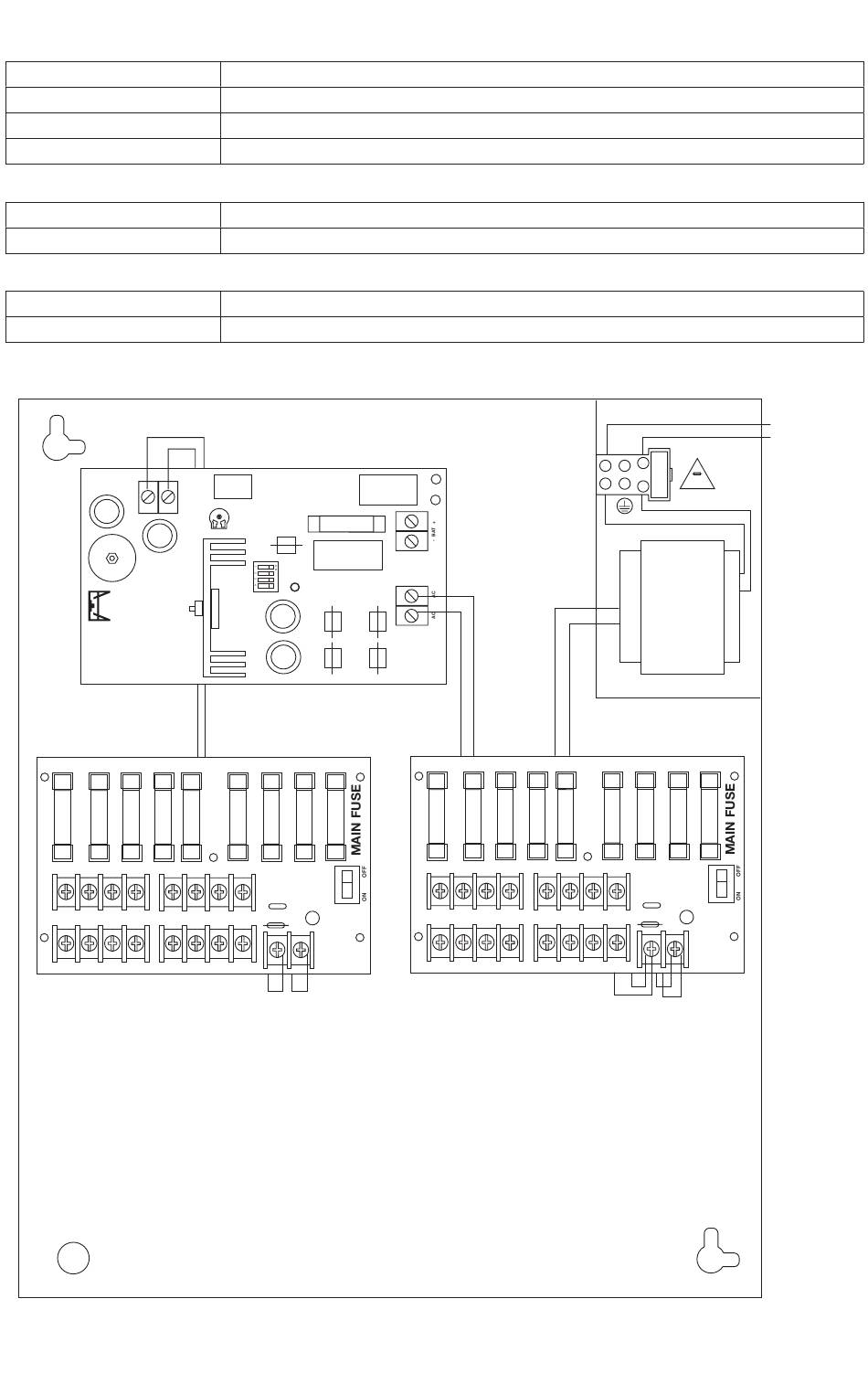

Fig. 1
+ DC INPUT -
1 2 3 4 5 6 7 8
P
F U S E D P O W E R O U T P U T S
N
C O M M O N P O W E R O U T P U T S
DC Outputs
ALTV1224C220

Terminal Identification:

Function/Description

Low voltage AC input (24VAC / 175VA / 220VAC).
12VDC 3.5A total continuous output.
Stand-by battery connections. Maximum charge rate 0.5A.
Positive DC power outputs.
Negative DC power outputs.
AC power outputs.
AC power outputs.
D1
LED
R1
INPUT
DC
AC
1 2 3 4 5 6 7 8
P
F U S E D P O W E R O U T P U T S
N
C O M M O N P O W E R O U T P U T S
AC Outputs
2A
250V
Red Lead
Black Lead
XFMR
D1
LED
R1
INPUT
Input
220 VAC,
50/60 Hz
0.79A
- 3 -
