Altronix ALTV129-DC Installation Instructions

Altronix

Overview:

The Altronix ALTV129-DC DC CCTV Power Supply is designed with eight (8) individually fused outputs for
powering CCTV Cameras and other video accessories. It will provide 9 or 12 VDC distributed via eight (8) fuse
output with a total of 4 AMPS continuous supply current.

Specifications:

• Input 115VAC 60Hz, 1.45 amps
• Eight (8) individually fused outputs
• 4 amps continuous supply current
• Output fuses are rated at 3.5 amps / 250VAC
(see Fig.1,#4)
• Main fuses are rated at 5 AMP / 250VAC.
(see Fig. 1, #5)
• Switch selectable 12VDC or 24VDC output
• Filtered and electronically regulated outputs
• AC input and DC output LED indicator
• Power ON/OFF switch
• Surge protection
• Spare fuses included
• Ease of installation saves time and eliminates costly labor
• Unit maintains camera synchronization
• Unit is supplied assembled in enclosure
Enclosure dimensions: 15.5"H x 12"W x 4.5"D
Optional available with 220VAC input
order model # ALTV129-DC/220.

Power Supply Output Specifications:

Output Switch
VDC Position
9VDC SW1 Open
12VDC SW1 Closed
Installation Instructions:
1. Mount ALTV129-DC enclosure in desired locations.
2. Slide switch SW1 (see Fig. 1, #1) to OFF position.
3. Set the ALTV1224-DC to desired DC output voltage by setting switch (SW1) (see Fig 1, #7) on the power supply
board to the appropriate position (see power supply output specification table).
4. Connect the AC (115 VAC 50 / 60 Hz) to the black and white flying leads of the transformer (see Fig 1, #2).
5. Connect each DC device to terminal pairs 1 to 8, marked "1P-1N thru 8P - 8N" (see Fig 1, #3) carefully
observing correct polarity.
Note: Is good operating practice to measure output voltage before connecting devices.
6. When batteries are being used the DC output voltage must be increased by approximately 15% by turning the
trim pot VR1 (see Fig 1, #8) clockwise. Connect battery to terminals - BAT + (see Fig. 1, #6) as marked on the unit
(battery leads included).
CAUTION: Determine the maximum operating voltage of the equipment being powered before adjusting the
output voltage.
7. Slide switch SW1 (see Fig. 1, #1) to ON position.
8. Green LED will illuminate when AC power is present..
9. Upon completion of wiring, secure enclosure door with screws (supplied).
WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture. This installation should be
made by qualified service personnel and should conform to all local codes and in accordance with the National Electrical
Code.
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.

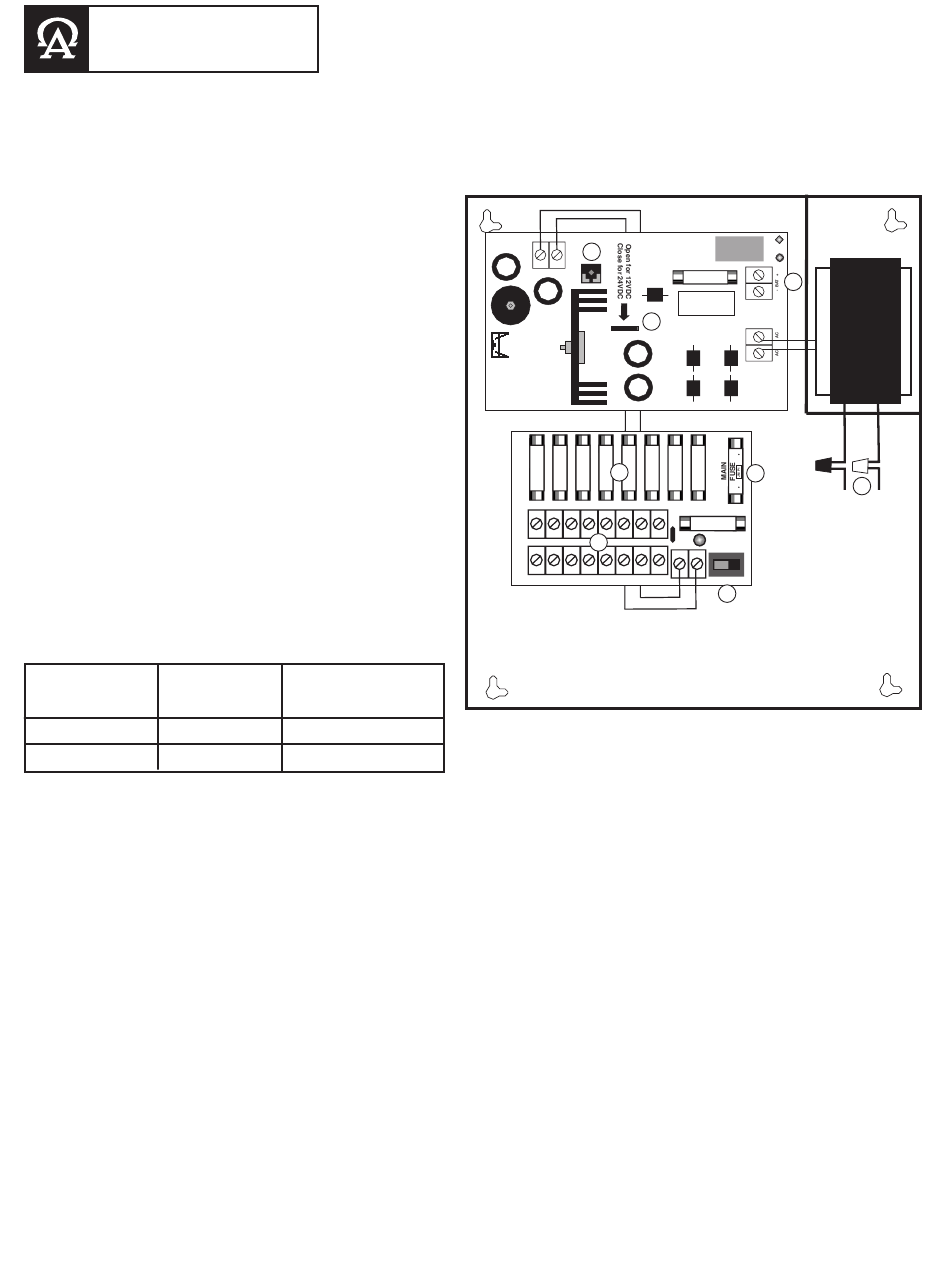

ALTV129-DC
®
CCTV Camera & Accessory Power Supply
Maximum
Load DC
4 amps
4 amps
+ DC OUTPUT -
8
7
SMP5
POWER SUPPLY / CHARGER
F1 F2 F3 F4 F5 F6 F7
4
FUSED POWER OUTPUTS
P
3 MOV
1 2 3 4 5 6 7 8
N
N
COMMON POWER OUTPUTS
DC
AC
6
XFMR
Black
White
Lead
Lead
F8
5
2
115VAC input
PD8
60 Hz,
SPARE
1.45AMP
LED
SW1
P
ON OFF
1
Fig. 1
