ALTV1224C Series

AC/DC Dual Output Power Supplies

Installation Guide

Models Include:

ALTV1224C

- 12VDC @ 3.5A max.

24VAC @ 3.5A max..

- Sixteen (16) Fuse Protected Outputs.

ALTV1224CCB

- 12VDC @ 3.5A max.

24VAC @ 3.5A max..

- Sixteen (16) PTC Protected Outputs.

Rev. 101716

More than just power.

Table of Contents

Do you have a question about the ALTV1224C and is the answer not in the manual?

Page 1: Installation Guide
ALTV1224C Series AC/DC Dual Output Power Supplies Installation Guide Models Include: ALTV1224C - 12VDC @ 3.5A max. 24VAC @ 3.5A max.. - Sixteen (16) Fuse Protected Outputs. ALTV1224CCB - 12VDC @ 3.5A max. 24VAC @ 3.5A max.. - Sixteen (16) PTC Protected Outputs.
Page 2: Installation Instructions

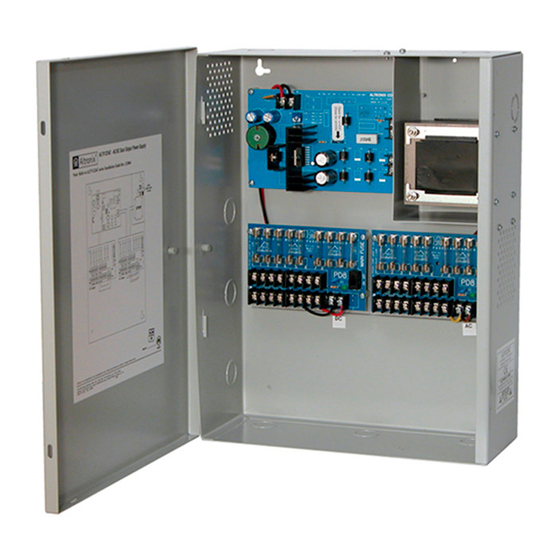

Overview: Altronix ALTV1224C Series AC/DC dual output power supplies provide both 12VDC and 24VAC outputs where a combination of both AC and DC outputs is required. They provide eight (8) 12VDC outputs at 3.5A total max. and eight (8) 24VAC outputs at 3.5A total max.
Page 3: Terminal Identification
SMP5 - Power Supply Board Terminal Legend Function/Description AC / AC Low voltage AC input (24VAC / 175VA). Altronix part # T24175 + DC - 12VDC 3.5A total continuous output. - BAT + Stand-by battery connections. Maximum charge rate 0.5A.
Page 4 (117.22mm) (38.1mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IIALTV1224C Series D24R...
