Altronix ALTV164 Quick Manual

Overview:

Altronix ALTV164 CCTV Power Supply is designed to power CCTV cameras and accessories.
It provides 16VAC @ 6A or 18VAC @ 5A supply current, distributed via four (4) fuse protected outputs

Specifications:

Input:
• Input 115VAC 50/60Hz, 0.9A.
Output:
• 16VAC @ 6A or 18VAC @ 5A supply current.
• Four (4) individual fuse protected outputs.
• Surge protection.

Fuse Ratings:

• Output fuses are rated @ 3.5A/250VAC (Fig. 1).
• Main fuse is rated @ 10A/250VAC (Fig. 1).

Visual Indicators:

• AC power LED indicator.

Additional Features:

• Power ON/OFF switch.
• Spare fuse included.
• Unit maintains camera synchronization.
• Ease of installation saves time and eliminates
costly labor.

Enclosure Dimensions (H x W x D):

8.5" x 7.5" x 3.5"
(215.9mm x 190.5mm x 88.9mm).
Optional: available with 220VAC input.
Order model # ALTV164220.

Installation Instructions:

1. Mount unit in the desired location.
Mark and predrill holes in the wall to line up
with the top two keyholes in the enclosure.
Install two upper fasteners and screws in the wall
with the screw heads protruding.
Place the enclosure's upper keyholes over the two upper screws; level and secure. Mark the position of the lower two holes.
Remove the enclosure. Drill the lower holes and install the three fasteners. Place the enclosure's upper keyholes over the two
upper screws. Install the two lower screws and make sure to tighten all screws (Enclosure Dimensions, pg. 2).
Secure enclosure to earth ground.
2. Slide switch on PD board to OFF position (Fig. 1).
3. All units are factory set for 16VAC operation.
For 18VAC operation adjust unit prior to mounting and applying power as follows:
Change the wire position so that the black wire [18V] is connected to the terminal
marked [P] and the yellow wire [16V] is connected to the terminal marked [S] (Fig. 2).
4. Connect AC power to the black and white flying leads of the transformer(s) (Fig. 1).
Use 18 AWG or larger for all power connections.
5. Measure output voltage before connecting devices. This helps avoiding potential damage.
Terminals marked [1P - 4P] are positive of the same polarity.
CAUTION: Determine the maximum operating voltage of the equipment being powered
before adjusting the output voltage.
6. Connect devices to terminals marked [1P - 1N through 4P - 4N] on PD4 board (Fig. 1).
7. Slide switch on PD board to ON position (Fig. 1).
8. Green LED will illuminate when unit is powered.
9. Upon completion of wiring, secure enclosure door with the screws (supplied).
CAUTION: Equipment to be installed/serviced by authorized/trained personnel only.
Shut branch circuit power before installing/servicing equipment.
ALTV164
CCTV Camera and Accessory Power Supply

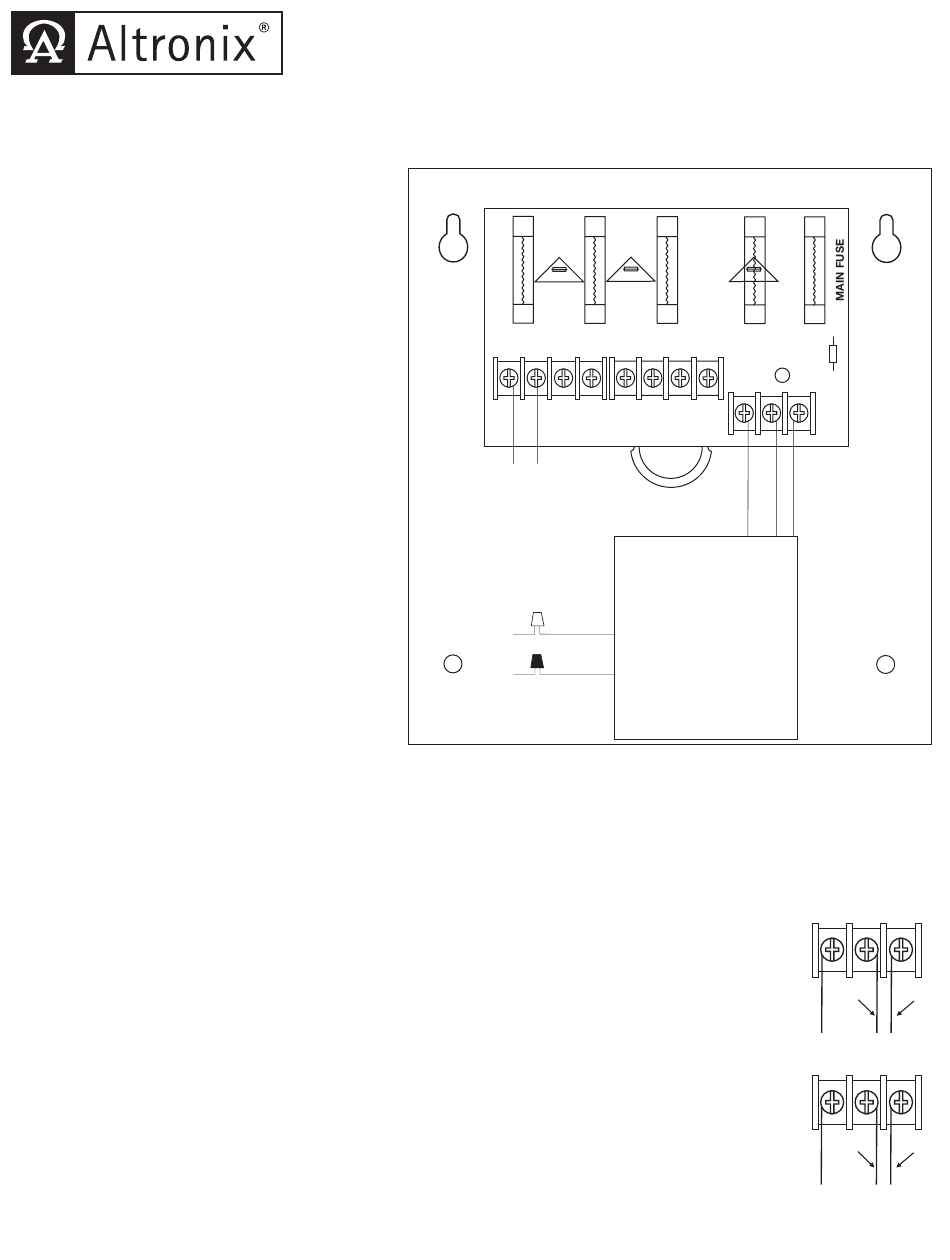

Fig. 1
16VAC fuse protected output 1
(Follow the same procedure using
terminals 2P & N through 4P & N
fuse protected outputs 2 through 4)
115VAC
50/60 Hz
3.5A 250V 3.5A 250V
1P, 2P, 3P, 4P = FUSED OUTPUTS
1N, 2N, 3N, 4N = COMMON OUTPUTS
1P 1N 2P 2N 3P 3N
White Lead
Input
Black Lead
3.5A 250V
LED
4P 4N
INPUT
N P S
XFMR
Voltage Selection
Fig. 2
Configuration
N
16VAC
Output
(Yellow)
N
18VAC
Output
(Black)
P S
(Black)
P S
(Yellow)
