ALTV1224DC220 Series
CCTV Power Supplies
Models Include:
ALTV1224DC220
- 12VDC or 24VDC @ 4A
- Eight (8) Fuse Protected Outputs.
ALTV1224DC1220
- 12VDC or 24VDC @ 4A.
- Sixteen (16) Fuse Protected Outputs.
ALTV1224DC2
- 12VDC or 24VDC @ 6A.
- Sixteen (16) Fuse Protected Outputs.
Installation Guide
Rev. 022505
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
ALTV1224DCCB220
- 12VDC or 24VDC @ 4A
- Eight (8) PTC Protected Outputs.
ALTV1224DC1CB220
- 12VDC or 24VDC @ 4A.
- Sixteen (16) PTC Protected Outputs.
ALTV1224DC2CB220
- 12VDC or 24VDC @ 6A.
- Sixteen (16) PTC Protected Outputs.
More than just power.
TM

Advertisement

loading
Need help?

Need help?

Do you have a question about the ALTV1224DC220 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Altronix ALTV1224DC220 Series

  • Page 1 ALTV1224DC220 Series CCTV Power Supplies Models Include: ALTV1224DC220 ALTV1224DCCB220 - 12VDC or 24VDC @ 4A - 12VDC or 24VDC @ 4A - Eight (8) Fuse Protected Outputs. - Eight (8) PTC Protected Outputs. ALTV1224DC1220 ALTV1224DC1CB220 - 12VDC or 24VDC @ 4A.
  • Page 2: Specifications

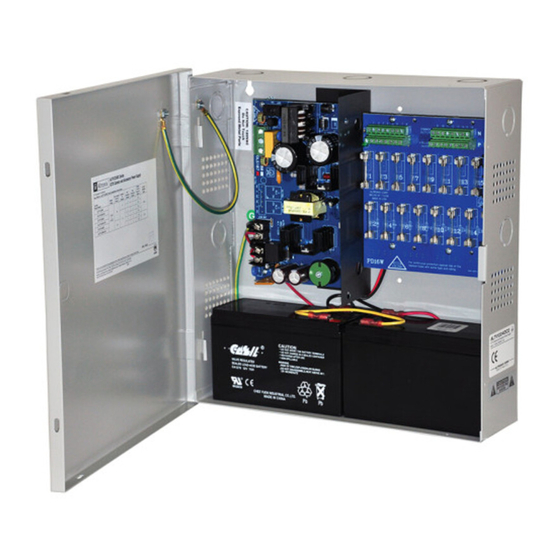

    Overview: Altronix ALTV1224DC220 Series DC CCTV power supplies are designed to power CCTV Cameras and accessories. Units provide 12VDC or 24VDC distributed via eight (8) or sixteen (16) fused or PTC protected outputs with a total of 4A or 6A continuous supply current.
  • Page 3 If stand-by battery (batteries) are connected the DC output remains on. 24VDC output - OFF OFF - 24V 12VDC output - ON ON - 12V Trimpot Adjusts output voltage on power supply ALTV1224DC220 Series Installation Guide - 3 -...
  • Page 4 ON - 12V Trimpot Adjusts output voltage on power supply 1 2 3 4 5 6 7 8 common 9 10 11 12 13 14 15 16 outputs protected outputs Used on ALTV1224DC1CB220 - 4 - ALTV1224DC220 Series Installation Guide...
  • Page 5 ON - 12V Trimpot Adjusts output voltage on power supply 1 2 3 4 5 6 7 8 common 9 10 11 12 13 14 15 16 outputs protected outputs Used on ALTV1224DC2CB220 ALTV1224DC220 Series Installation Guide - 5 -...
  • Page 6 (servicing) instructions in the literature accompanying the appliance. CAUTION: To reduce the risk of electric shock do not open enclosure. There are no user serviceable parts inside. Refer servicing to qualified service personnel. - 6 - ALTV1224DC220 Series Installation Guide...
  • Page 7 Notes: ALTV1224DC220 Series Installation Guide - 7 -...
  • Page 8 1.0” 1.0” 10.5” (266.7mm) (25.4mm) (25.4mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty IIALTV1224DC220 Series L07U...
