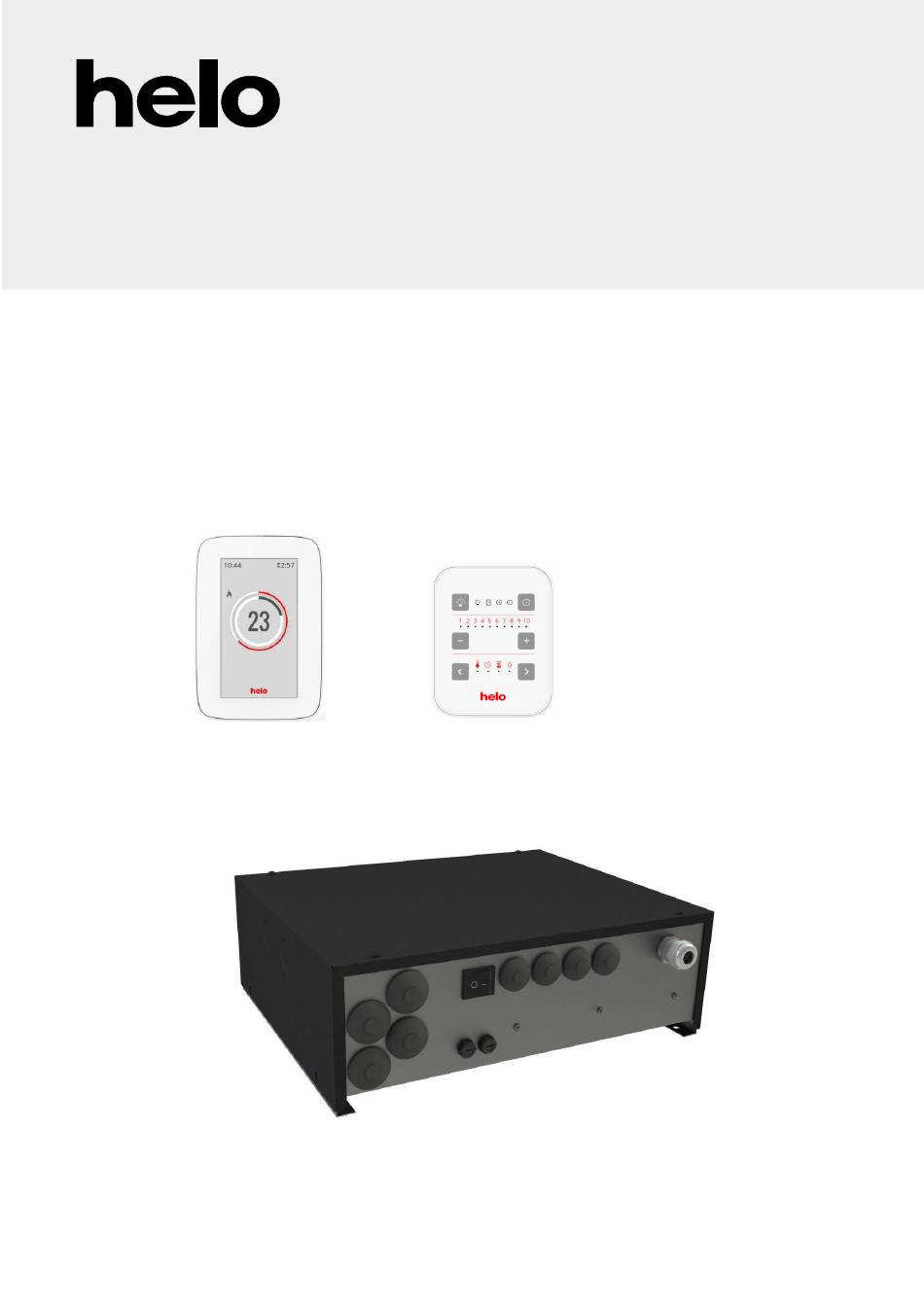

- Page 1 REWARD YOURSELF User and installation manual WE 40 Contactor box WE 40 (2005 – 40) Control panels Premium Wifi (1601 – 33) (1601 – 31) Trend Premium Wifi Trend Contactor box WE 40 314 SYWE 32-3 A...
-
Page 2: Table Of Contents
Figure 5. Pin layout of a RJ10 circuit Figure 6. Installing the door switch Figure 7. Wiring diagram for contactor box WE 40 Figure 8. Principle diagram of connection Figure 9. Internal connection for sauna heaters SKLE / Laava Figure 10 Internal connection for sauna heaters SKLF / Octa Safety clearancest to heater 1105 –... -
Page 3: Check Before Taking A Sauna Bath
User and installation manual WE 40 1.1. Check before taking a sauna bath The sauna room is suitable for taking a sauna bath. The door and the window are closed. The sauna heater is topped with stones that comply with the manufacturer's recommendations, the heating elements are covered with stones, and the stones are piled sparsely. -
Page 4: Preparing For Sauna Heater Installation
User and installation manual WE 40 1. Preparing for sauna heater installation Check the following before installing the sauna heater. - The ratio of the heater's input (kW) and the sauna room's volume (m ). Volume recommendations are presented in Tables 1 and 3 on page 5 and 6. The minimum and maximum volumes must not be exceeded. -
Page 5: Safety Clearances For Sauna Heaters 1101 And 1105 - Xx (Skle / Laava)
User and installation manual WE 40 4. Safety clearances for sauna heaters 1105 – XX (SKLE / Laava) 40 mm > min 50 mm 500 mm Figure 2. Alternative installation location of Figure 1. Installation location of the OLET 31 sensor the OLET 31 sensor on a ceiling in the centre above the heater. -
Page 6: Cables And Fuses For Heaters 1105 - Xx (Skle / Laava)
User and installation manual WE 40 5. Cables and fuses for heaters 1105 – XX (SKLE / Laava) Model Power Fuse Fuse Sauna heaters con- Sauna heaters nection cable connection cable H07RN-F / H07RN-F / 60245 IEC 66 60245 IEC 66 400 –... -
Page 7: Cables And Fuses For Heaters 1106 - Xx (Sklf / Octa)
1106 - …. 9 – 15 kW 400V – 415V 3N~ The models of the control panels that can be used to control contactor cases WE 40. 31 (Trend) and 33 (Premium Wifi). Refer to the control panel operating manual for more specific instructions. -
Page 8: Door Switch
The switch part is installed on the door frame and the magnet is installed on the door. The distance between the switch and the magnet is 18 mm. When the door switch is installed on the top part of the door, TylöHelo recommends using the TylöHelo model with product number 0043233, SSTL 8260371. -
Page 9: Wiring Diagram We
Sensor extra Senzor extra / Érzékelő extra Вентилятор не более 100 Вт . Tuuletin / Fläkt / Ventilator / Fan max, 100W / Ventilateur / Ventilador / Wentylator 354 SYWE 25 B Figure 7 Wiring diagram for contactor box WE 40... -
Page 10: Principle Diagram
User and installation manual WE 40 13. Principle diagram Terminal block Limiter Contactor box WE 40 Sensor cable 1 Blue OLEA 103 2 White Sensor OLET 31 3 Red 4 Yellow Control panel Contactor box 1601 – 31 WE 40... -
Page 11: Internal Connection For Sauna Heaters
User and installation manual WE 40 14. Internal connection for sauna heaters Teho, Effekt, Vstup Lämpövastukset, Värmeelement, Tennid, Heating elements, Ryhmäteho Input, Potencia, Moc Lämpövastukset, Värmeelement, Tennid, Teho, Effekt Heizeelement, Resistores Térmicos, Éléments chauffants, Gruppeffekt Leistung, Potenza Heating elements, Heizeelement, Resistores ТЭНы,...
