Helo Trend User And Installation Manual
Control centre
Hide thumbs
Also See for Trend:
- Instructions for use and installation (14 pages) ,
- Product manual (65 pages) ,
- Product manual (212 pages)
Related Manuals for Helo Trend
Summary of Contents for Helo Trend
- Page 1 REWARD YOURSELF User and installation manual Trend CONTROL CENTRE: 1601 - 31 (RA – 31) 314 SYRA 70-3...
-
Page 2: Table Of Contents
2.5 Setting the timer 2.6 Setting usage time 2.7 Door switch installation and operation 2.8 External control use 2.9 Fault alarms 2.10 Connecting the Trend control panel to the adapter circuit board RoHS Trend control panel dimensions: 27 mm 86 mm... -
Page 3: General
In private use, the maximum usage time for the heater is 6 hours. In institutions and in monitored use it is 10–24 hours. Temperature adjustment 20–110°C. Preset time 1–10 hours. Requires a door switch, Helo product number 0043233, SSTL 8260371. Instructions for the door switch installation are included in the user and installation instructions for the heater or the contactor case. -
Page 4: Use Of The Control Panel
The factory setting for the Trend control panel is programme 1. Set to heat the heater to a maximum temperature of 110°C for a maximum time of 6 hours. The temperature may be adjusted during use. The on time may be adjusted when the heater or the steam generator is off. -
Page 5: Start

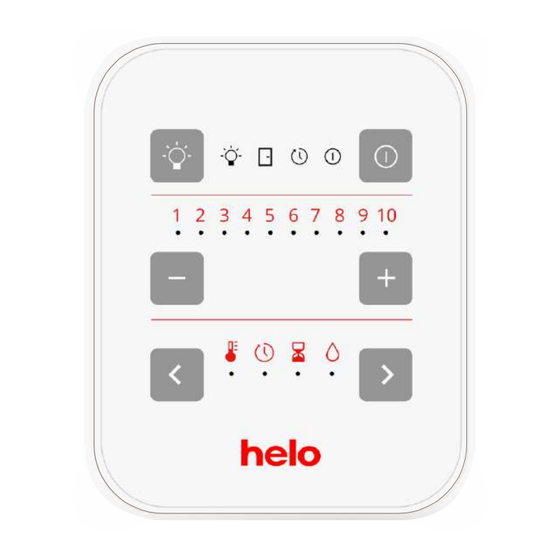

User and installation manual Trend 2.3 Start Switch the heater or the steam generator on by pressing the button (C). The latest temperature and usage time set- tings will remain preset. A green indicator light will come on in area (B) to indicate that the device has been switched You may switch the system off before the usage time ends by pressing the same button again. -
Page 6: Door Switch Installation And Operation
If the door is left open for more than 5 minutes during a sauna bath, the heater or the steam generator will automatical- ly switch itself off. The recommended door switch is the Helo model with product number 0043233, SSTL 8260371 2.8 External control use The system can be connected with an external switch or an on/off button which can be used to switch the heater or the steam generator on or off outside the control panel. -
Page 7: Fault Alarms
The reason may be inadequate ventilation, for example. If the fault lies somewhere else, or if it is not resolved by these measures, contact the retailer or an authorised Helo service facility. Check the heater or the steam generator type plate for the type, serial number and production number, and the control panel for the potential fault code. -
Page 8: Rohs
User and installation manual Trend User and installation manual Trend 3. ROHS Ympäristönsuojeluun liittyviä ohjeita Anvisningar för miljöskydd Tämän tuotteen käyttöiän päätyttyä sitä ei Denna produkt får inte kastas med saa hävittää normaalin talousjätteen vanliga hushållssopor när den mukana, vaan se on toimitettava inte längre används.
