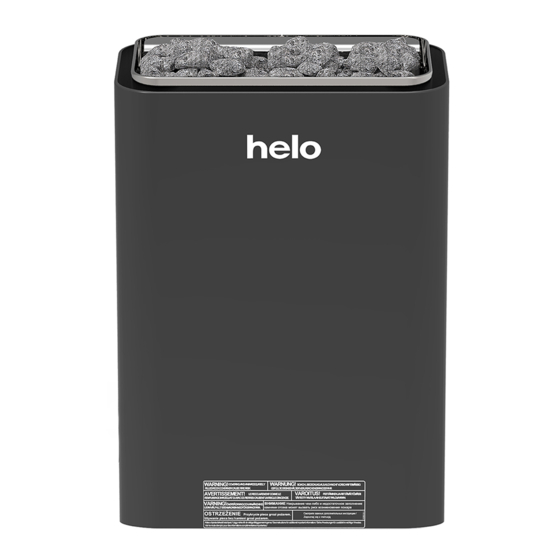

Helo Vienna D Installation And User Manual
Electric sauna heater, control panel, contactor box
Hide thumbs
Also See for Vienna D:
- Installation and user manual (127 pages) ,
- Product manual (49 pages) ,
- Product manual (127 pages)
Related Manuals for Helo Vienna D
Summary of Contents for Helo Vienna D

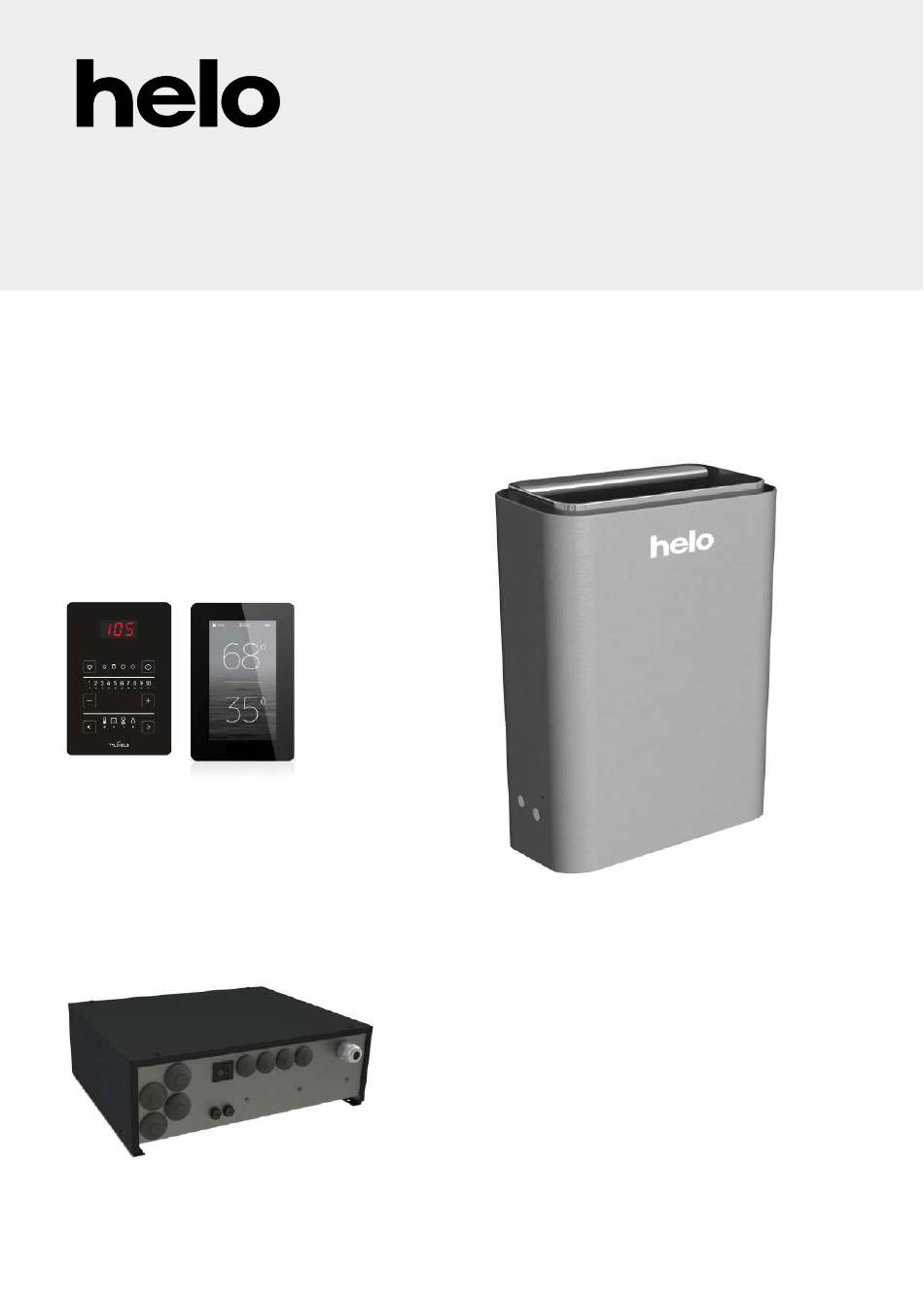

- Page 1 REWARD YOURSELF Installation and User Manual Vienna D ELECTRIC SAUNA HEATER: 1712 – 450 – 04 1712 – 600 – 04 1712 – 800 – 04 CONTROL PANEL: Pure Elite CONTACTOR BOX 2005 – 40 (WE – 40) 314 SKLT 224-3 A...
-
Page 2: Table Of Contents
2.15. Door switch 2.16. Wiring diagram Vienna Heater and contactor box WE 40 2.17. Principle image when Pure is used as control panel 3.Spare parts for Vienna D -electric sauna heater 4.ROHS Figures and tables Figure 1 Rekommended sauna room ventilation... -
Page 3: Warnings
Installation and User Manual Vienna D 1. WARNINGS 1.1. Check before taking a sauna bath The sauna room is suitable for taking a sauna bath. The door and the window are closed. The sauna heater is topped with stones that comply with the manufacturer's recommendations, the heating elements are covered with stones, and the stones are piled sparsely. -
Page 4: Heating The Sauna
Installation and User Manual Vienna D 2. Heating the sauna Before turning the sauna heater on, make sure the sauna room is suitable for taking a sauna bath. When heated for the first time, the sauna heater may emit some odour. If you detect any odour while the sauna heater warms up, disconnect the sauna heater briefly, and air the room. -
Page 5: Ceiling Installation Of The Sensor
Installation and User Manual Vienna D 2.3. Ceiling installation of the sensor ø 5 mm In ceiling installation, a 5-mm hole must be drilled to the sensor case to allow any condensed water to drain. Do not spray water directly towards the sensor or splash water at it with a sauna scoop. -
Page 6: If The Sauna Heater Will Not Heat Up
Installation and User Manual Vienna D 2.6. If the sauna heater will not heat up If the sauna heater will not heat up, please check that: the power is on; the main fuses of the sauna heater are intact; is there any error messages on the control panel. In case of an error message on the control panel, please refer to the control panel instructions. -
Page 7: Heater Safety Distances And Sensor Position
Installation and User Manual Vienna D 2.9. Heater safety distances and sensor position Minimum distances for the mounting (mm) Drill. Ø3,5 mm Screw 6 x 40 mm (2 pcs) Screw 6 x 16 mm (2 pcs) Figure 2 Heater installation to wall... -
Page 8: Connection Of The Sauna Heater To The Mains
Installation and User Manual Vienna D Power Saunaroom Minimum distance to Stone Volume Height Side In front Floor Ceiling wall min. max. m³ m³ min. mm Circa kg Circa kg 1900 1200 1900 1200 1900 1200 Table 1 Safety clearances 2.10. -
Page 9: Locating The Connecting Box For The Connection Cable In The Sauna Room
Installation and User Manual Vienna D 2.12. Locating the connecting box for the connection cable in the sauna room A = Specified minimum safety clearance 1. Recommended location for the connecting box 2. Silumin box recommended in this area. 3. This area should be avoided. Always use a silumin box. -
Page 10: Door Switch
The switch part is installed on the door frame and the magnet is installed on the door. The distance between the switch and the magnet is 18 mm. When the door switch is installed on the top part of the door, TylöHelo recommends using the TylöHelo model with product number 0043233, SSTL 8260371. -
Page 11: Wiring Diagram Vienna Heater And Contactor Box We
Installation and User Manual Vienna D 2.16. Wiring diagram Vienna Heater and contactor box WE 40 Lämpövastukset, Värmeelement, Tennid, Teho, Effekt Heating elements, Heizeelement, Resistores Input, Potencia Térmicos, Éléments chauffants, Elementy Leistung, Moc ТЭНы, Vöimsus,Wejscie grzewcze, Elemento riscaldante, Fûtõelemek Puissance,... -
Page 12: Principle Image When Pure Is Used As Control Panel
Installation and User Manual Vienna D 2.17. Principle image when Pure is used as control panel Terminal block Limiter Contactor box Sensor cable 1= Blue Adapter circuit 2= White Sensor OLET 31 board OLEA 103 3= Red 4= Yellow Control panel... -
Page 13: Spare Parts For Vienna D -Electric Sauna Heater
Installation and User Manual Vienna D 3. Spare parts for Vienna D -electric sauna heater Figure 12 Exploded view diagram of the heater Vienna Vienna Vienna Parts Product number Product title 450 D 600 D 800 D SP4071002 Vienna basic grate... -
Page 14: Rohs
Installation and User Manual Vienna D 4. ROHS Instructions for environmental protection This product must not be disposed with normal household waste at the end of its life cycle. Instead, it should be delivered to a collecting place for the recycling of electrical and electronic devices.
