- Page 1 User and installation manual Helo T1 CONTROL CENTRE 1601 – 27 (RA – 27) T1 START TEMPERATURE TIMER SETTINGS 314 SYRA 65-2 A...
-
Page 2: Table Of Contents
The control panel fits the following sauna heater models: 1118 - … - 040518 (LT- … - DET) (Rocher DET) 1118 - … - 040518 (LT- … - DET) (Helo Ring DET) 1118 - … - 040518 (LT- … - DET) (Helo Cava/Cava Roxx DET) -
Page 3: Control Panel Overview

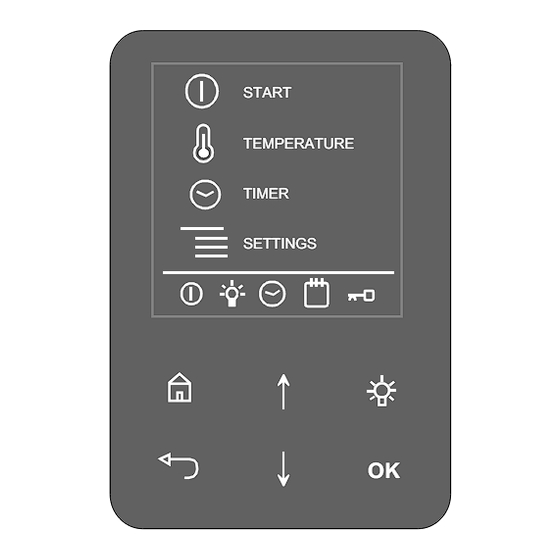

User and installation manual Helo-T1 1.3 Installing the control panel Use and installation of the Helo-Touch control panel Control panel RA27 (T1) Open the screw at the head of the control panel. Remove the control panel frame and lid. Install the bottom piece for the Install and connect the cable. - Page 4 User and installation manual Helo-T1 2. Control panel T1 START TEMPERATURE Display TIMER SETTINGS Functions that are activated by default Touch screen keys Control panel activation Proximity sensor Button functions: Takes you from a submenu to the front page. Step back. Shows the temperature and the time when pressed on the front page.
- Page 5 User and installation manual Helo-T1 First start-up or reset. Select region The following submenus are found under the menu. All selections must be confirmed by pressing OK. Select region Europe Select the region where the controller is used. Other region Europe, time and temperature settings according to European regulations.
-
Page 6: Switch Diagram
User and installation manual Helo-T1 2.1 Switch diagram 230V - 240V 1N~ / 2~ max. 8 kW N / L1 230 V 3~ L2 L3 400V - 415V 3N~ Lamp L1 L2 L3 2 3 4 1 2 3 4 5 6... - Page 7 User and installation manual Helo-T1 Control panel connecting terminal markings. Markings on the connecting terminal of the sauna heater circuit board. Terminal block Limiter Heater Sensor cable OLET 28 1. Blue 1. Blue 2. White 2. White 3. Red 3. Red 4.
- Page 8 The sauna heater runs according to the maximum time and temperature set in the control panel T1. The sauna heater can also be turned off by pressing the push button.
-
Page 9: Rohs
User and installation manual Helo-T1 3. ROHS Ympäristönsuojeluun liittyviä ohjeita Anvisningar för miljöskydd Tämän tuotteen käyttöiän päätyttyä sitä ei Denna produkt får inte kastas med saa hävittää normaalin talousjätteen vanliga hushållssopor när den mukana, vaan se on toimitettava inte längre används. Istället ska den sähkö- ja elektroniikkalaitteiden kierrätykseen...
