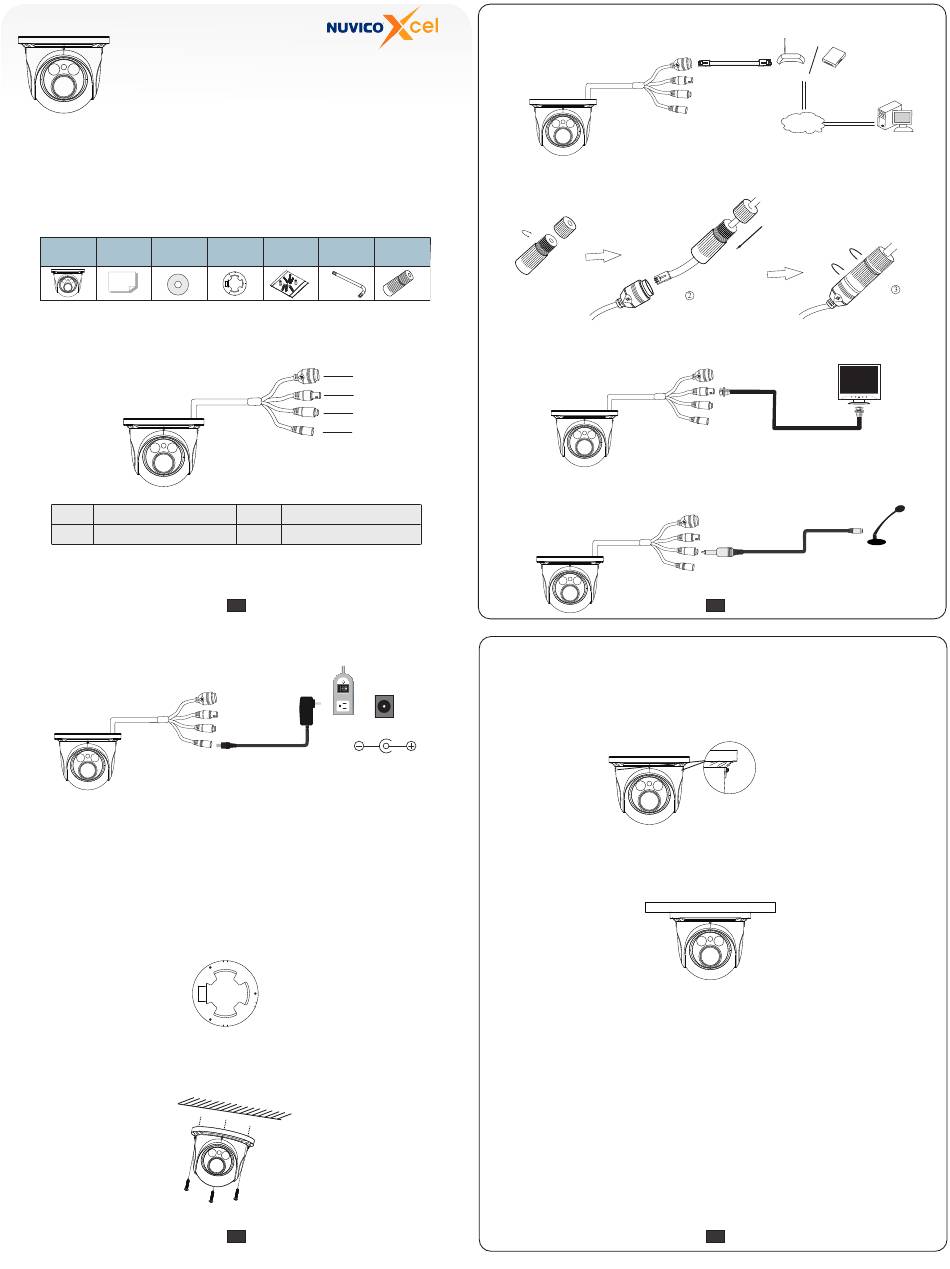

Nuvico Xcel NCT-4M-E31AF Quick Start Manual

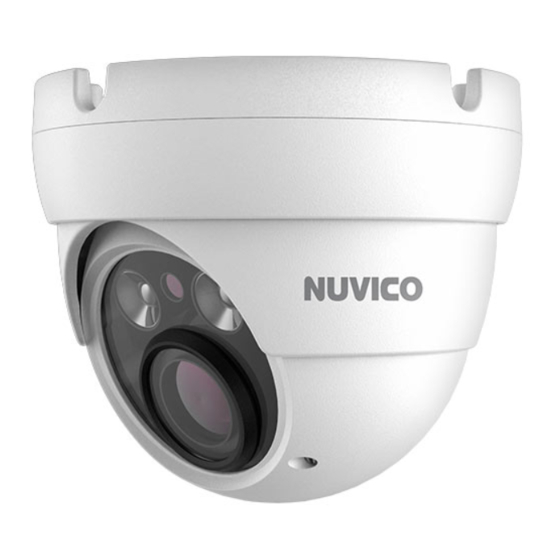

NCT-4M-E31AF Eyeball Camera

Quick Start Guide

1.Package
After you receive your device, please check the following accessories.
The pictures here are for reference only.
Quick Start
CD
Camera
Guide
2.Overview
1 Network Cable
2
CVBS Cable
► Power Connection
3. Installation
Please make sure that the wall or ceiling is strong enough to withstand 3
times the weight of the camera.
① Attach the drill template to the place where you want to fix the camera
and then drill 3 screw holes and 1 cable hole (if you want to route the
cables through the mounting base) according to the drill template.
② Route the cables and connect the power cable and network cable. And
then secure the camera to the ceiling or wall with the screws.
Drill Screws &
Screwdriver Water-proof
Template
Spiles
Cap
1
2
3
4
3
MIC IN Cable
4
Power Cable
1
DC12V
3
► Network Cable Connection
► Water-proof Cap Mounting
► Video Connection
► Audio Connection
③ Adjust the camera to obtain an optimum angle by loosening the lock
screws. Before adjustment, preview the image of the camera on a monitor.
Tighten the lock screws after you finish adjusting the view angle of the camera.
④
Remove the protection film gently to finish the installation.
Network Cable
Router
Modem
Network
Cable
Internet
Network Cable
Computer
Monitor
2
Lock Screw
4
