Instrument and control functions

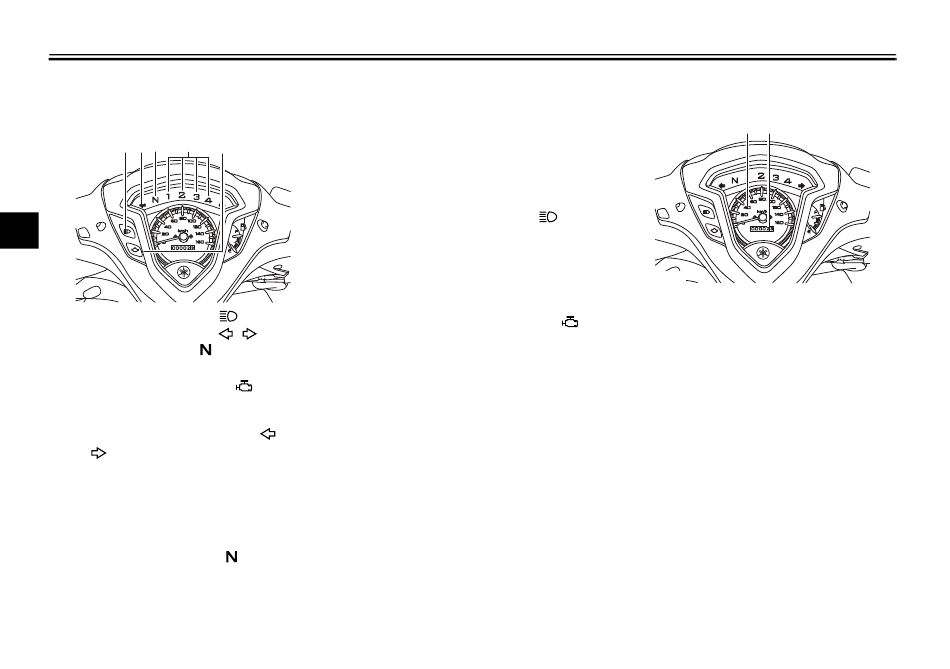

Indicator lights and warning
light
1 2 3 4
4
1. High beam indicator light "
2. Turn signal indicator light "
3. Neutral indicator light "
4. Gear position indicator light "1" "2" "3" "4"
5. Engine trouble warning light "
Turn signal indicator lights "
and " "
Each indicator light will flash when its
corresponding turn signal lights are
flashing.
Neutral indicator light "
This indicator light comes on when the
transmission is in the neutral position.
EAU1100C
Gear position indicator lights "1" "2"
"3", and "4"
The respective indicator light comes
5
on when the transmission is in the 1st,
2nd, 3rd or 4th gear position.
High beam indicator light "
This indicator light comes on when the
high beam of the headlight is switched
on.
"
Engine trouble warning light "
"
This warning light comes on or flashes
"
if a problem is detected in the electrical
circuit monitoring the engine. If this oc-
"
curs, have a Yamaha dealer check the
self-diagnosis system.
EAU11032
"
The electrical circuit of the warning
light can be checked by turning the key
to "ON". The warning light should
come on for a few seconds, and then
go off.
If the warning light does not come on
EAU11061
initially when the key is turned to "ON",
"
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAU37612

Speedometer unit

EAU11081
"
ZAUV0307
1. Speedometer
EAUE0261
2. Odometer
"
The speedometer unit is equipped with
a speedometer, an odometer and a
fuel meter. The speedometer shows
riding speed. The odometer shows the
total distance traveled. The fuel meter
indicates the amount of fuel in the fuel
tank.
4-3
EAUU0081
1 2
